Optimized for the open networking era
Get more agility, more choices and lower costs than proprietary networks with select, open-standards-based ON (open networking) switches. - Disaggregated-hardware/software solutions bring new levels of freedom and flexibility to your data center.
- Support for Open Network Install Environment (ONIE) enables zero-touch installation of alternate network operating systems.
- Your choice of network operating system helps simplify data-center fabric orchestration and automation.
- A broad ecosystem of open-source and Linux-based applications and tools provides more options to optimize and manage your network. Developed for flexibility
The Dell Networking S-Series 10/40GbE switches offer a family of products that enable you to find the ideal solution for your specific needs. - Line-rate performance from 1/10G BASE-T to 40GbE and port densities from 28 to 48
- Efficient stacking offered in many S-Series models
- Industry-hardened and feature-rich operating system for maximum dependability and uptime with select third-party OS options

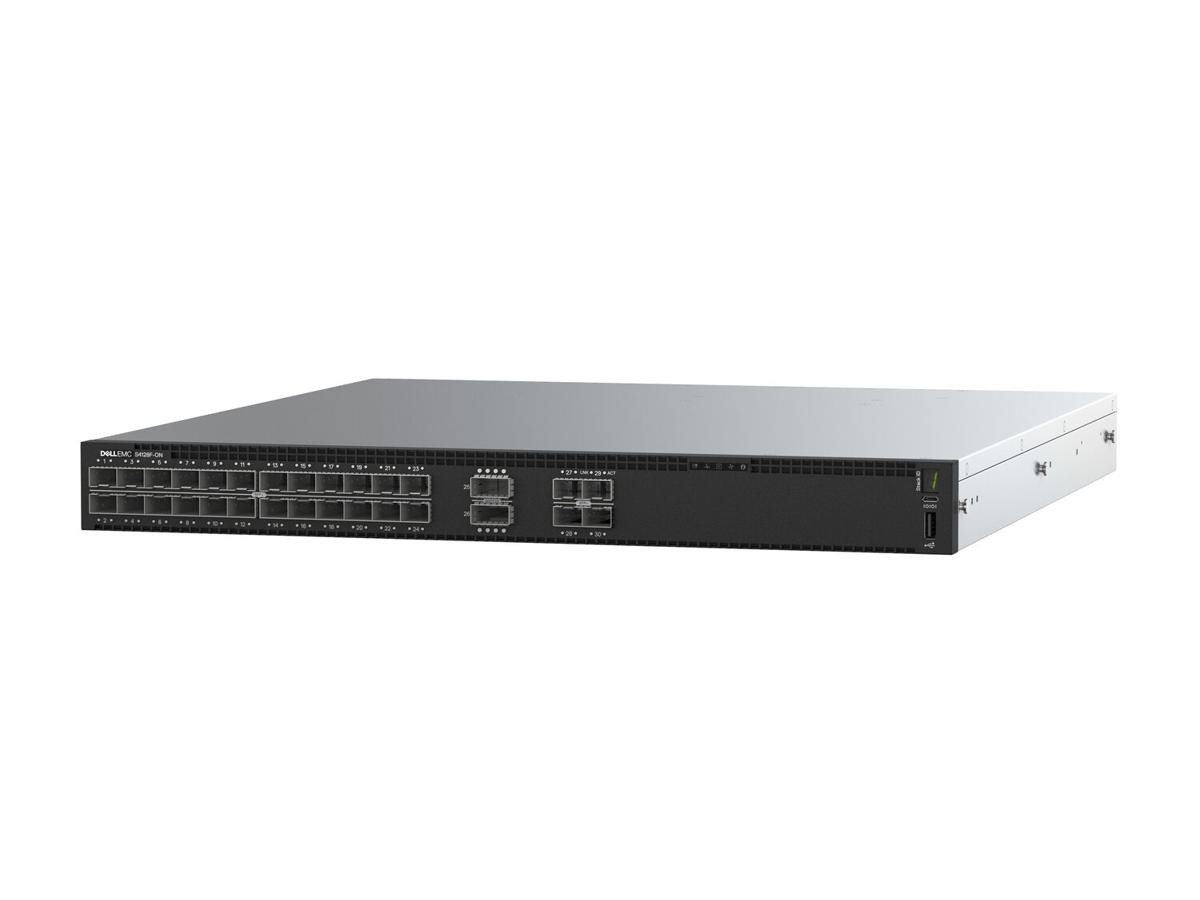

- Full support for iSCSI storage area networks, including DCB Achieve performance, flexibility and cost-effectiveness with this ToR switch that features 28 x 10GbE SFP+ ports and 2 x 100GbE QSFP28 ports, and ONIE for zero-touch installation of alternate network operating systems.
| Administrationsfunktioner | |
| Switch-type | Administreret |
| Switch lag | L2/L3 |
| Servicekvalitet support (QoS) | Ja |
| Konfigurerer lokationsindstillinger (CLI) | Ja |
| Porte & Grænseflader | |
| Basis omskiftning RJ-45 Ethernet porte, antal | 0 |
| Basis omskiftning RJ-45 Ethernet porttype | Ingen |
| Antal installerede SFP moduler | 0 |
| Antal SFP + modulslots | 28 |
| Antal QSFP + modulpladser | 2 |
| Netværk | |
| Netværksstandarder | IEEE 802.3 |
| 10G understøttelse | Ja |
| VLAN understøttelse | Ja |
| Vituelle LAN funktioner | Tagged VLAN |
| Multicast funktioner | |
| Multicast-understøttelse | Ja |
| Protokoller | |
| GARP VLAN registreringsprotokol (GVRP) | Ja |
| Design | |
| Stativ-montering | Ja |
| Stabelbar | Ja |
| Formfaktor | 1U |
| Sikkerhed | UL/CSA 60950-L Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition Including all National Deviations and Group Differences, EN 60825-1 Safety of Laser Products Part1: Equipment Classification Requirements and User’s Guide, EN 60825-2 Safety of Laser Products Part 2: Safety of Optical Fibre Communications Systems, FDA Regulation 21 CFR 1040.10 and 1040.11 |
| Strømstyring | |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Strøm over Ethernet (PoE) | Ingen |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 45 °C |
| Relativ luftfugtighed ved drift (H-H) | 10 - 85% |
| Vægt & størrelser | |
| Vægt | 8,92 kg |
| Godkendelser | |
| Certificering | RoHS |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176990 |
