EDGE COMPUTING: REDEFINED
Versatile All-in-One Panel PC

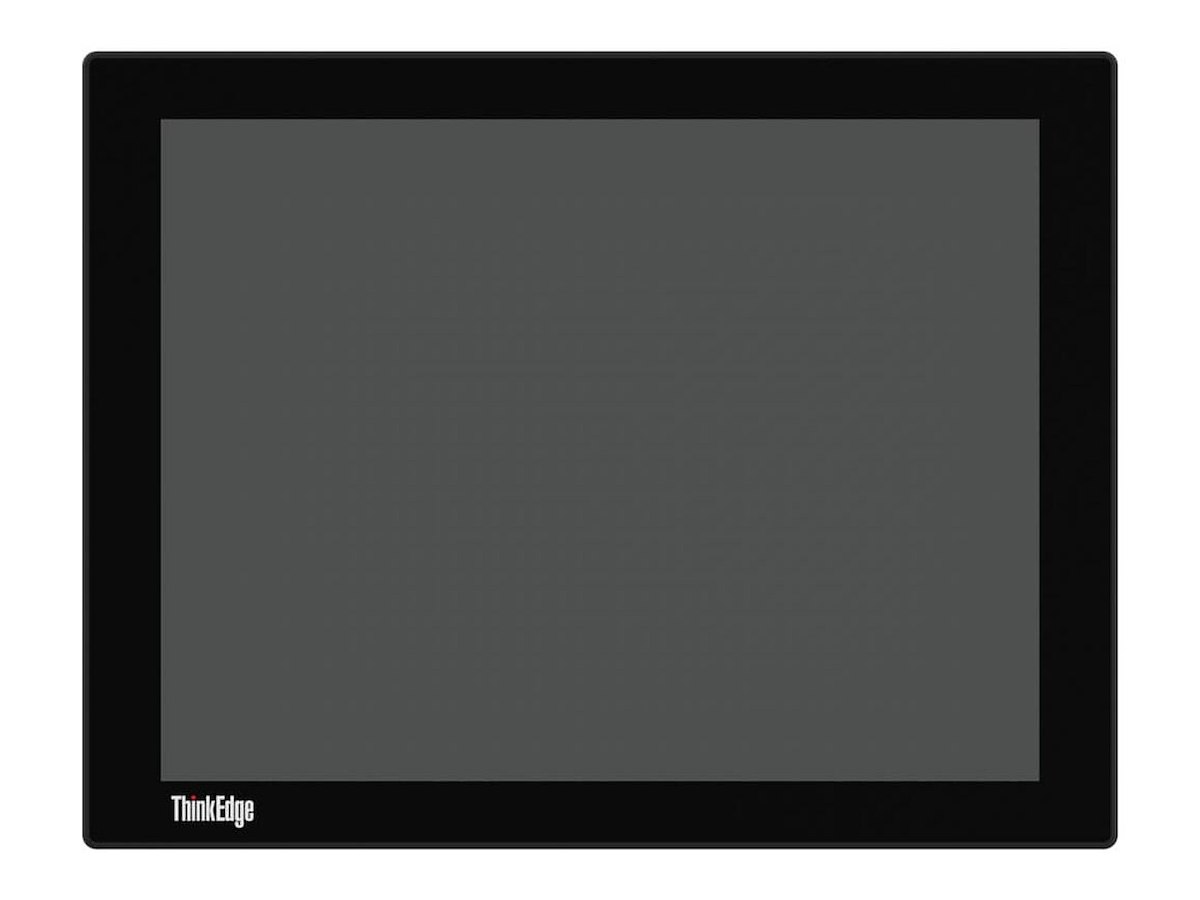

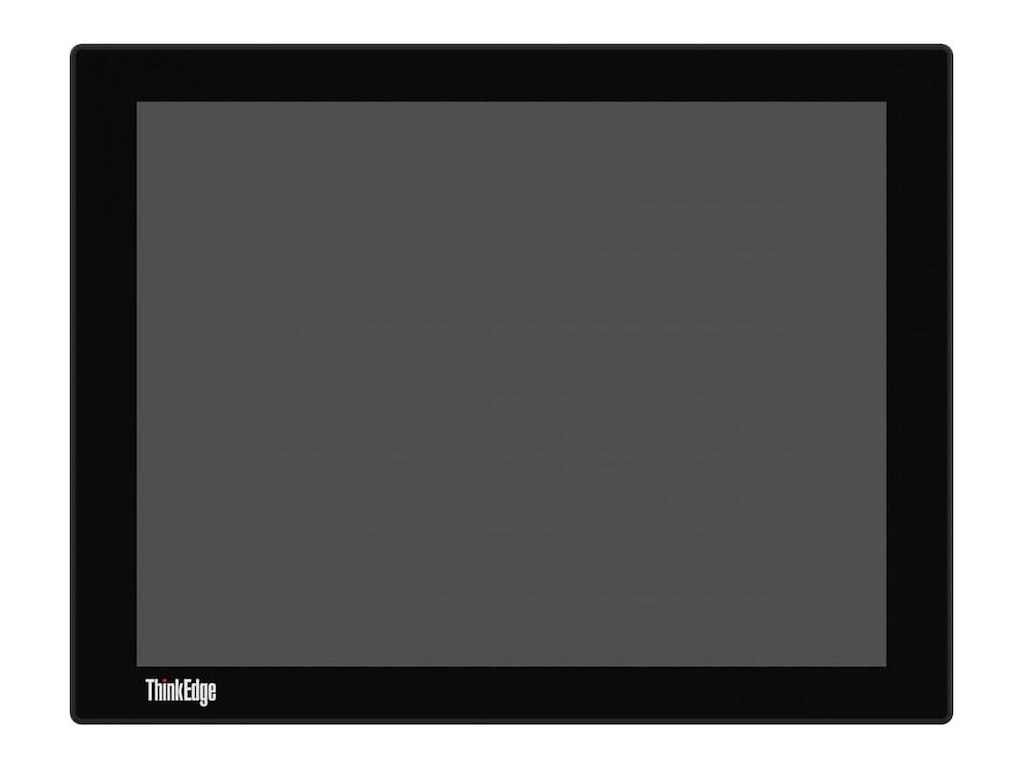

The 21.5" Lenovo ThinkEdge SE50a 22" Edge Client combines rugged durability with high performance for edge computing. Fueled by Intel® Core™ processors, it offers seamless data visualization and precise real-time control for enhanced efficiency. Plus, its multi-touch display and IP-rated design ensure uninterrupted operation.
UNCOMPROMISING DURABILITY
Built Tough for Any Environment
The ThinkEdge SE50a 22" Edge Client is a compact, fanless all-in-one industrial PC designed to ensure silent operation with an operating temperature range of 0°C to 50°C. Featuring IP65 on front face & IP41 on back side ratings, the system is built to endure shock and vibration, ensuring reliable performance in demanding industrial and commercial settings.
ROBUST SECURITY
Safeguard Your Edge Environment
Enjoy peace of mind with ThinkShield, an advanced security suite with hardware and software solutions. Safeguard sensitive data with Discrete Trusted Platform Module (dTPM) and block unauthorized access to devices with BIOS-based safeguards. Plus, optional Intel vPro® security adds an extra layer of protection.
MIL-SPEC TESTED
Combination of Advanced Engineering & Resilience
The all-in-one industry panel PC is built to last. Passing rigorous MIL-STD-810G testing standards, it ensures exceptional durability in extreme conditions, including temperature fluctuations, vibration, and shock. Ideal for mission-critical operations and rugged zones, it provides reliable performance in the toughest scenarios. -
Display Skærm diagonal 54,6 cm (21.5") Skærmopløsning 1920 x 1680 pixel Berøringsskærm Ja HD-type Fuld HD Naturligt aspektforhold 16:9 Skærmens lysstyrke 250 cd/m² Paneltype IPS Processor Processorserie Intel Core 5 Processorproducent Intel Processormodel 120UL Processorgeneration Intel Core (Series 1) Processorkerner 10 Processortråde 12 Processor boost frekvens 4,6 GHz Performance-kerner 2 Effektive kerner 8 Kerner med lav strømeffektivitet 0 Ydelseskerne maksimal turbofrekvens 4,6 GHz Effektiv kerne maksimal turbofrekvens 3,4 GHz Processor-cache 12 MB Processor cache type Smart cache Processor sokkel LGA 1700 Processor base power 15 W Maksimal turbokraft 55 W Hukommelse Intern hukommelse 16 GB Maksimal intern hukommelse 32 GB Intern hukommelsestype DDR5-SDRAM Hukommelsesstik 1 Hukommelses slots type SO-DIMM Hukommelsesur hastighed 5600 MHz Lagring Samlet lagringskapacitet 512 GB Lagermedie SSD Optisk drevtype Ingen Antal installerede lagerdiske 1 Samlet kapacitet for SSD'er 512 GB Antal installerede SSD'er 1 SDD-kapacitet 512 GB SSD-grænsefladetype PCI Express 4.0 NVMe Ja SSD-formfaktor M.2 M.2 SSD størrelse 2280 (22 x 80 mm) Grafik Diskret grafikadapter Ingen Diskret grafikadaptermodel Ikke tilgængelig On-board grafikkort Ja On-board grafikkort, model Intel Graphics Producent af indbygget GPU Intel Indbygget grafikadapterfamilie Intel Graphics Lyd Indbyggede højttaler(e) Ja Antal højttalere 1 Udgangseffekt (RMS) 1 W Lydchip Realtek ALC888S-VD2-GR Kamera Indbygget kamera Ingen Netværk Wi-Fi Ja Bedste Wi-Fi standard Wi-Fi 6E (802.11ax) Ethernet LAN Ja Bluetooth Ja Wi-Fi-standarder Wi-Fi 6E (802.11ax) Producent af WLAN-controller Intel WLAN-controller model Intel Wi-Fi 6E AX210 Antenne type 2x2 Ethernet LAN-datahastigheder 2500 Mbit/s Bluetooth-version 5.3 Porte & Grænseflader Antal USB 2.0-porte 1 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 3 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte 0 Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte 0 Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte 1 Antal USB4 Gen 3x2-porte 0 Ethernet LAN-porte (RJ-45) 2 DC-in-stik Ja Antal serielle porte 1 Design Produktfarve Sort Præstation Produkttype All-in-One thin client Bundkort chipsæt Intel® SoC Trusted Platform Module (TPM) Ja Trusted Platform Module (TPM) version 2.0 BIOS adgangskode Ja Software Operativsystem installeret Windows 11 IoT Enterprise LTSC Operativsystem sprog Tysk Strømstyring Vekselstrømsadapter strøm 150 W Vægt & størrelser Bredde (uden stativ) 538 mm Dybde (uden stativ) 341,1 mm Højde (uden stativ) 64 mm Vægt (uden stativ) 7,3 kg Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -20 - 60 °C Godkendelser Certificering ErP Lot 6/26 Emballage indhold Mus inkluderet Ingen Tastatur inkluderet Ingen
