Varenummer: 9H.JTJ77.16E
Mere information
-
Immersive Entertainment
Ready for demanding interactive projection projects
BenQ Immersive Entertainment Projector Series
Installer Ready
Simulation-grade visual system, factory-tuned for accuracy
*Preset configuration. Automatic edge blending software not included. Additional software or hardware is required to complete edge blending.
Blending Ready Mode
One-click preset in the OSD that applies key settings to prepare images for multi-projector blending.
* Preset configuration. Automatic edge blending software not included. Additional software or hardware is required to complete edge blending.
Brilliant visuals with accurate colour and stable performance

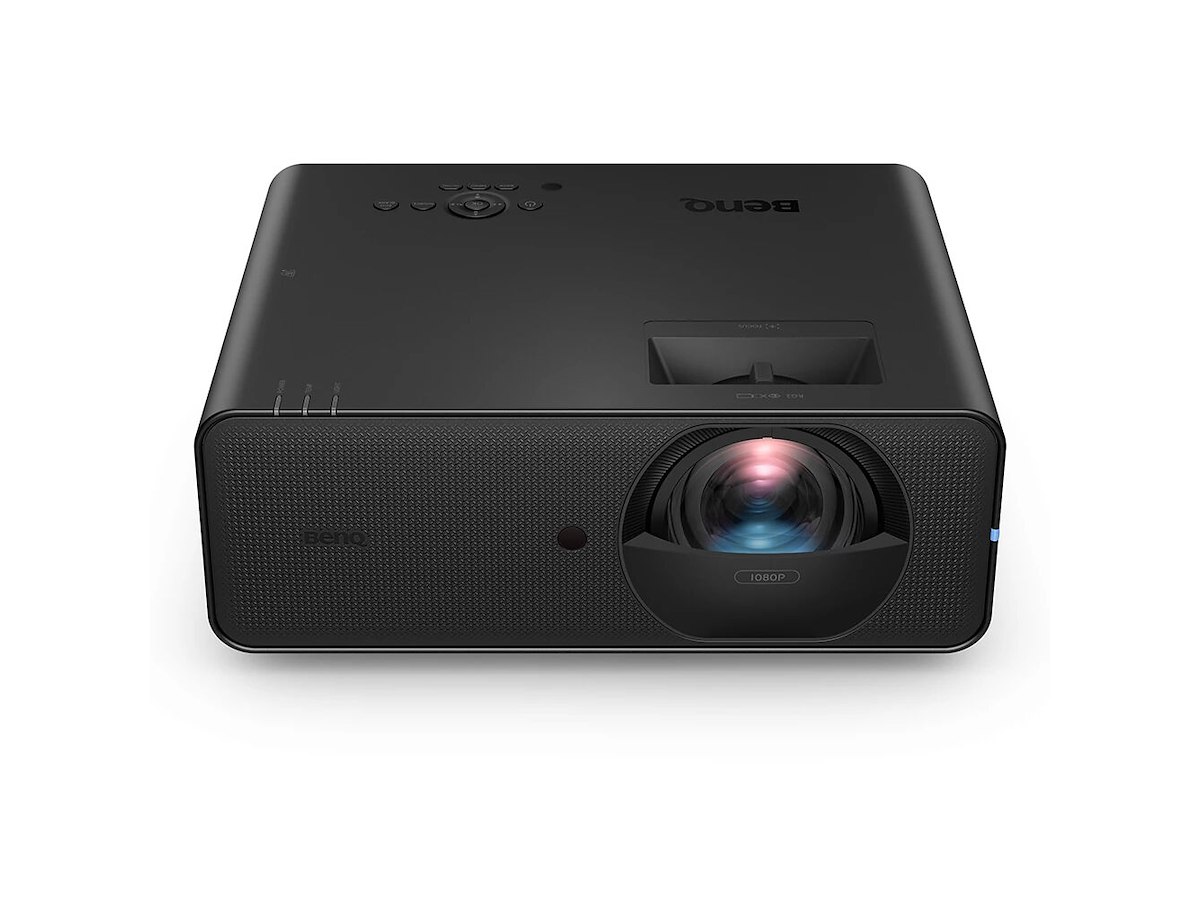

The LH860ST delivers brilliant image clarity and stable performance across every detail—from vivid Rec.709 colour and high contrast to 5000-lumen brightness and 20,000-hour laser life.
BenQ WBA for Seamless Multi-Projector White Calibration
BenQ’s factory white balance adjustment (WBA) reduce variables between images projected from different projectors, significantly reducing manual calibration effort. It can save up to a full day of setup time in large-scale installations while ensuring seamless multi-projector alignment for edge blending.
Full Flexibility for Ceilings, Walls and Floors
Design for Compact Setups and Ceilings
Dust Protection and Easy Maintenance
1. IP6X Sealed Engine Design
Shields the projector’s optical engine from dust intrusion, ensuring long-term stability and reliable performance.
2. Optional Air Filter for Extra Protection
Provides added protection in dusty environments and helps extend projector life.
3. Auto Reset Mechanism
Automatically tracks filter usage and resets the timer when a new filter is installed, without any manual setup.
IT Takes Control
Streamlined Device Management
Remote Monitoring and Diagnostics
Easily track projector status and diagnose issues remotely, eliminating frequent on-site visits.
Firmware Management Over Network
Easily update all projectors via LAN to keep firmware current without physical access.
Reliable Performance, Less Maintenance
Ensure long-term stability, freeing SI teams to focus on creative installations rather than routine upkeep. -
Projektør Projektor lysstyrke 5000 ANSI lumens Projektionsteknologi DLP Projektor indbygget opløsning 1080p (1920x1080) Kontrastforhold (typisk) 3000000:1 Naturligt aspektforhold 16:9 Horisontal scanningsområde 15 - 135 kHz Vertikalt scanningsområde 23 - 240 Hz Trapezkorrektion, horisontal ±30° Trapezkorrektion, vertikal ±30° Farveområde 93% Lyskilde Lyskilde type Laser Levetid for lyskilde 20000 t Levetid for lyskilde (økonomisk tilstand) 30000 t Linsesystem Zoom kapacitet Ja Zoom type Fastgjort Throw-forhold 0.5 Forskydning 105% Video Full HD Ja 3D Ja Understøttede grafikopløsninger 640 x 480 (VGA), 1920 x 1080 (HD 1080) Farvetilstande for video Lys biograf, Præsentation, Sport, sRGB Porte & Grænseflader Antal VGA-porte (D-sub) 0 Antal HDMI-porte 2 DVI-port Ingen Seriel grænsefladetype RS-232 HDMI-version 2.2 Antal DisplayPorts 1 Antal USB 2.0 type-A-porte 2 Mini-USB 2.0 porte, antal 1 Lyd (L, R) udgang 1 3D-synkroniseringsport Ja AC (strøm) indgang Ja DC-in-stik Ja Audio Return Channel (ARC) Ja Forbedret lydreturkanal (eARC) Ja Netværk Smart TV Ingen Ethernet LAN Ja Wi-Fi Ja Ethernet LAN-porte (RJ-45) 1 Wi-Fi-standarder 802.11b, 802.11g, Wi-Fi 4 (802.11n) Lagring Indbygget kortlæser Ingen Funktioner Støjniveau 36 dB Interaktiv Ingen Støjniveau (økonomisk tilstand) 31 dB HDCP Ja Kode for international beskyttelse (IP) IPX5 Multimedie Indbyggede højttaler(e) Ja Udgangseffekt (RMS) 10 W Antal indbyggede højttalere 1 Design Produkttype Projektor med kort projiceringsafstand Markedspositionering Hjemmebiograf Produktfarve Sort Display Indbygget skærm Ingen Strømstyring Strømkilde Vekselstrøm Strømforbrug (typisk) 281 W Strømforbrug (standby) 0,5 W Vekselstrømsindgangsspænding 100-240 V Vekselstrømsindgangsfrekvens 50/60 Hz Ledningslængde 1,8 m Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Vægt & størrelser Vægt 5,2 kg Bredde 343,8 mm Dybde 265,5 mm Højde 130,6 mm Emballage indhold Fjernbetjening inkluderet Ja Batterier inkluderet Ja 3D-briller inkluderet Ja Monteringsbeslag inkluderet Ja
