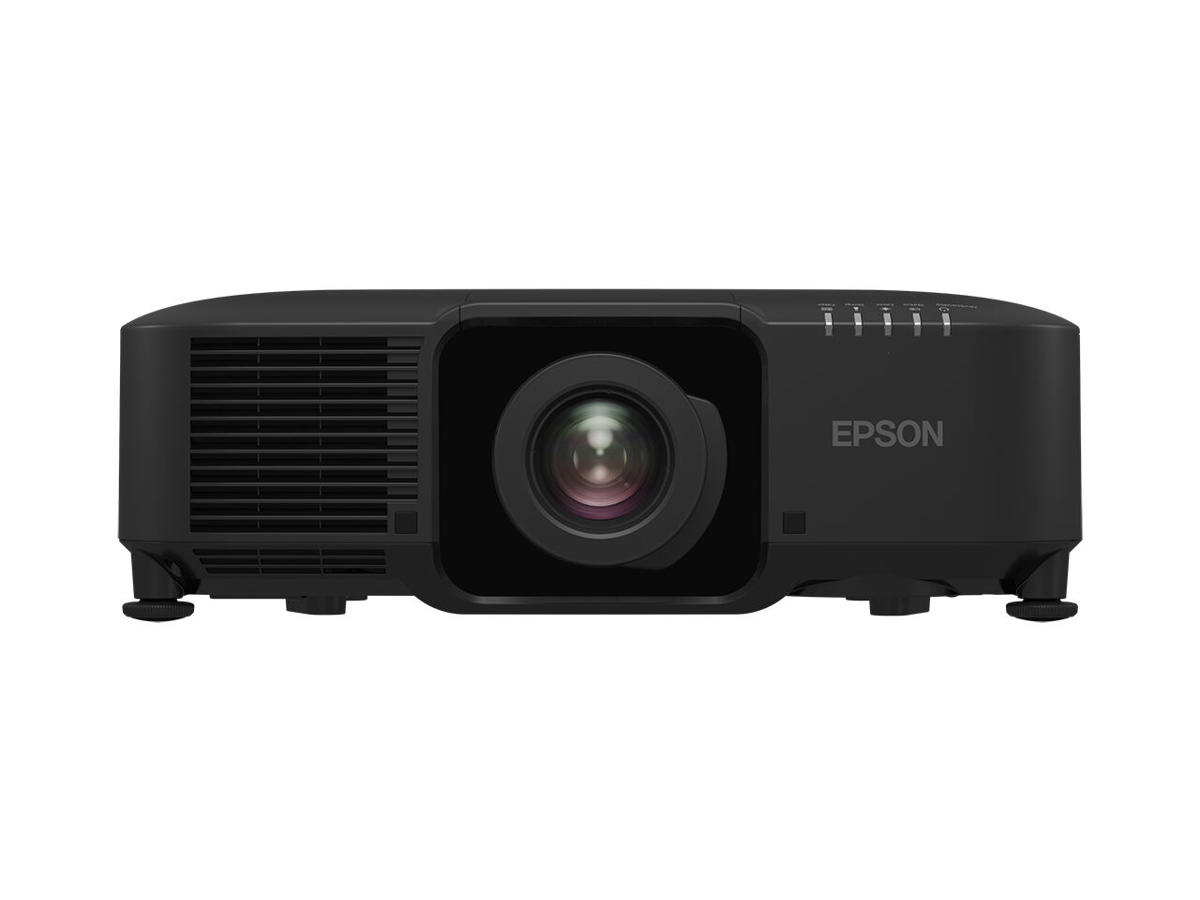

The EB-PU2010B is a compact and versatile high brightness projector with optional interchangeable lenses and advanced installation features.
This highly versatile 10,000 lumens installation projector is sold as 'body only' and pairs seamlessly with Epson’s existing lens family to deliver bright, true-to-life images in a wide variety of environments: from visitor attractions to lecture theatres, museums to meeting rooms. The high lumens EB-PU2010B offers WUXGA resolution with 4K enhancement, HDR and advanced installation features.
Superior image quality
The 10,000 lumens EB-PU2010B projects clear whites, vivid details, deep blacks, defined shadows and high contrast imagery.
Compact and lightweight
The compact size makes this projector more transportable and saves storage space, providing size and cost advantages to projector fleets. The unobtrusive design allows it to blend seamlessly into most environments. Also available in white.
Interchangeable lens support
The EB-PU2010B accommodates different lenses to suit a wide range of projection environments, including a zero-offset ultra-short-throw lens. Epson supplies the projector as ‘body only’, without a lens, which puts the power to build the right projection solution, for the right application, in the hands of the user.
Designed for installation agility
Produce large-scale, extremely bright displays, even as part of multi-projector installations where edge blending, stacking and lens flexibility is key. Epson Projector Professional Tool makes advanced installation techniques easy, such as projection mapping, while the optional external camera module (ELPEC01) uses built-in processing for PC-free geometry correction for stacking. The EB-PU2010B features NFC for multi-projector set up, making diagnostics and installations easier using the Epson Projector Config Tool. Also includes SDI input and output connectivity.
Projektør | |
Projektor lysstyrke | 10000 ANSI lumens |
Projektionsteknologi | 3LCD |
Projektor indbygget opløsning | WUXGA (1920x1200) |
Kontrastforhold (typisk) | 2000:1 |
Naturligt aspektforhold | 16:10 |
Antal farver | 1,07 milliarder farver |
Projektor lysstyrke (økonomisk tilstand) | 7000 ANSI lumens |
Projektorens lysstyrke (portrættilstand) | 10000 ANSI lumens |
Trapezkorrektion, horisontal | -30 - 30° |
Trapezkorrektion, vertikal | -45 - 45° |
Matrix størrelse | 2,62 cm (1.03") |
Varmeafgivelse | 1819 BUT/t |
Lyskilde | |
Lyskilde type | Laser |
Levetid for lyskilde | 20000 t |
Levetid for lyskilde (økonomisk tilstand) | 30000 t |
Linsesystem | |
Brændviddeområde | varies by lens |
Zoom type | Automatisk |
Throw-forhold | 0.35 - 7.41:1 |
Udskifteligt objektiv | Ja |
Video | |
Format til analogt signal | Ikke understøttet |
Full HD | Ja |
3D | Ingen |
Videobehandling | 10 Bit |
Farvetilstande for video | Biograf, Dynamisk, Naturlig, Præsentation, DICOM-simuleringstilstand, Multi-projection, BT.709 |
Porte & Grænseflader | |
Antal VGA-porte (D-sub) | 1 |
Antal HDMI-porte | 1 |
DVI-port | Ja |
Antal USB 2.0-porte | 2 |
Lyd (L, R) indgang | 1 |
Seriel grænsefladetype | RS-232C |
Antal USB 2.0 Type-B porte | 1 |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-porte (RJ-45) | 1 |
Lagring | |
Indbygget kortlæser | Ingen |
Funktioner | |
Støjniveau | 37 dB |
Støjniveau (økonomisk tilstand) | 30 dB |
Forudindstillede funktioner | Biograf, Præsentation, Dynamisk |
Oprindelsesland | Filippinerne |
Beskyttelse af adgangskode | Ja |
Design | |
Produkttype | Projektor til stort spillested |
Markedspositionering | Forretning |
Produktfarve | Sort |
Placering | Loft, Desktop, Flying frame |
Slot til kabellås | Ja |
Kabellåseslids type | Kensington |
Display | |
Indbygget skærm | Ingen |
Strømstyring | |
Strømkilde | Vekselstrøm |
Strømforbrug (typisk) | 535 W |
Strømforbrug (standby) | 0,5 W |
Strømforbrug (økonomi tilstand) | 452 W |
Vekselstrømsindgangsspænding | 100-240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Software | |
Softwaresupport | via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery |
Driftsbetingelser | |
Opbevaringstemperatur (T-T) | -10 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 20 - 80% |
Relativ luftfugtighed ved opbevaring (H-H) | 10 - 90% |
Vægt & størrelser | |
Vægt | 16,8 kg |
Bredde | 545 mm |
Dybde | 436 mm |
Højde | 189 mm |
Pakkebredde | 570 mm |
Pakkedybde | 765 mm |
Pakkehøjde | 270 mm |
Pakkevægt | 21,9 kg |
Emballage indhold | |
Fjernbetjening inkluderet | Ja |
Batterier inkluderet | Ja |
Kabler inkluderet | Vekselstrøm |
Brugervejledning | Ja |
Garantibevis | Ja |
WLAN-adapter inkluderet | Ja |
Medfølgende software | Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management, Epson Projektor Professional Tool |
Logistik data | |
Antal pr. pakke | 1 stk |
Produkter pr. palle | 14 stk |
Produkter pr. palle (UK) | 14 stk |
Harmoniseret systemkode (HS) | 85286200 |
Andre funktioner | |
Understøttede netværksprotokoller | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
