Limitless creativity

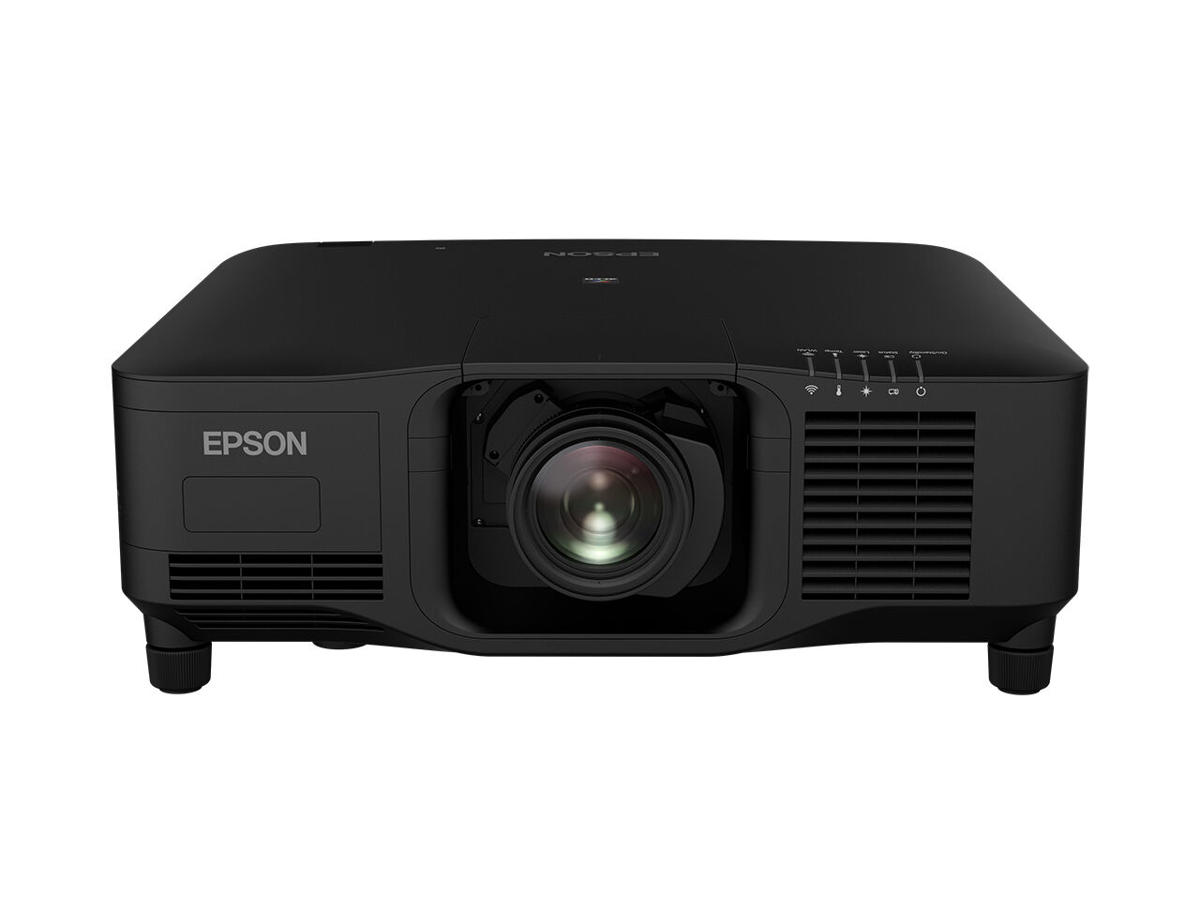

Building on the success of the EB-PU Series, the EB-PQ2213B is not only small and light, but is highly affordable, versatile, energy-efficient and packed with advanced features. Allowing you the freedom to create unforgettable immersive experiences.
A revolutionary 4K experience
Marvel at the clarity of the images produced by Epson’s latest 4K technology. Combining its patented, state of the art 4K Crystal Motion, panel thermo-control and double micro-lens array technologies, Epson achieves a new benchmark in 4K image quality.
Fantastically flexible
Featuring a wide range of connectivity, including 12G SDI in/out and HDMI in/out supporting 120Hz 4K. This high brightness projector also benefits from cross-platform lens compatibility, using the same 4K lenses as the existing EB-PU Series, including the ELPLX02S zero-offset ultra-short throw lens which is perfect for immersive spaces. This projector is supplied 'body-only', allowing you to build the perfect solution for your installation.
Reliable
Built for exceptional reliability, the EB-PQ2213B features IP5X rated dust resistance1 and up to 20,000 hours maintenance-free operation, or even longer in extended modes.
Extensive software
Compatible with the ELPEC01 camera, Epson Projector Professional Tool and Epson Projector Config Tool for a wealth of calibration, assistance and control functionality.
| Projektør | |
| Projektor lysstyrke | 13000 ANSI lumens |
| Projektionsteknologi | 3LCD |
| Projektor indbygget opløsning | UHD 4K (3840x2160) |
| Kontrastforhold (typisk) | 5000000:1 |
| Naturligt aspektforhold | 16:9 |
| Smart projektor | Ingen |
| Understøttede billedformater | 16:9, 21:9 |
| Antal farver | 1,07 milliarder farver |
| Trapezkorrektion, horisontal | -30 - 30° |
| Trapezkorrektion, vertikal | -45 - 45° |
| Matrix størrelse | 2,64 cm (1.04") |
| Hvidt lysudbytte | 13000 ANSI lumens |
| Farve lysudbytte | 13000 ANSI lumens |
| Varmeafgivelse | 3145 BUT/t |
| Lyskilde | |
| Lyskilde type | Laser |
| Levetid for lyskilde | 20000 t |
| Levetid for lyskilde (økonomisk tilstand) | 30000 t |
| Linsesystem | |
| Fokus | Ingen |
| Throw-forhold | 0.34 - 7.16:1 |
| Video | |
| Format til analogt signal | Ikke understøttet |
| Full HD | Ja |
| 3D | Ingen |
| Farvetilstande for video | Biograf, Dynamisk, Naturlig, Præsentation |
| Porte & Grænseflader | |
| Antal VGA-porte (D-sub) | 0 |
| Antal HDMI-porte | 3 |
| DVI-port | Ingen |
| Seriel grænsefladetype | RS-232C |
| HDBaseT-port | Ja |
| Serviceporttype | USB Type-B |
| Antal USB 2.0-porte | 2 |
| Antal USB 2.0 type-A-porte | 2 |
| Antal USB 2.0 Type-B porte | 1 |
| AC (strøm) indgang | Ja |
| Netværk | |
| Smart TV | Ingen |
| Ethernet LAN | Ja |
| Ethernet LAN-datahastigheder | 10,100 Mbit/s |
| Lagring | |
| Indbygget kortlæser | Ingen |
| Funktioner | |
| Støjniveau | 37 dB |
| Interaktiv | Ingen |
| Støjniveau (økonomisk tilstand) | 34 dB |
| Skærmvisning (OSD) | Ja |
| High Dynamic Range (HDR) understøttet | Ja |
| HDR-teknologi (High Dynamic Range) | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
| Kode for international beskyttelse (IP) | IPX5 |
| Beskyttelse af adgangskode | Ja |
| Design | |
| Markedspositionering | Præsentation |
| Produktfarve | Sort |
| Placering | Loft, Desktop, Gulv, Flying frame, Væg |
| Slot til kabellås | Ja |
| Kabellåseslids type | Kensington |
| Display | |
| Indbygget skærm | Ingen |
| Farvedybde | 10 Bit |
| Strømstyring | |
| Strømkilde | Vekselstrøm |
| Strømforbrug (typisk) | 925 W |
| Strømforbrug (standby) | 0,5 W |
| Strømforbrug (økonomi tilstand) | 666 W |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Vekselstrømsindgangsfrekvens | 50/60 Hz |
| Driftsbetingelser | |
| Opbevaringstemperatur (T-T) | -10 - 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 20 - 80% |
| Relativ luftfugtighed ved opbevaring (H-H) | 10 - 90% |
| Vægt & størrelser | |
| Vægt | 28,8 kg |
| Bredde | 586 mm |
| Dybde | 492 mm |
| Højde | 218 mm |
| Emballage indhold | |
| Fjernbetjening inkluderet | Ja |
| Batterier inkluderet | Ja |
