Varenummer: V11H890040
Mere information
-
Bright SXGA+ projector

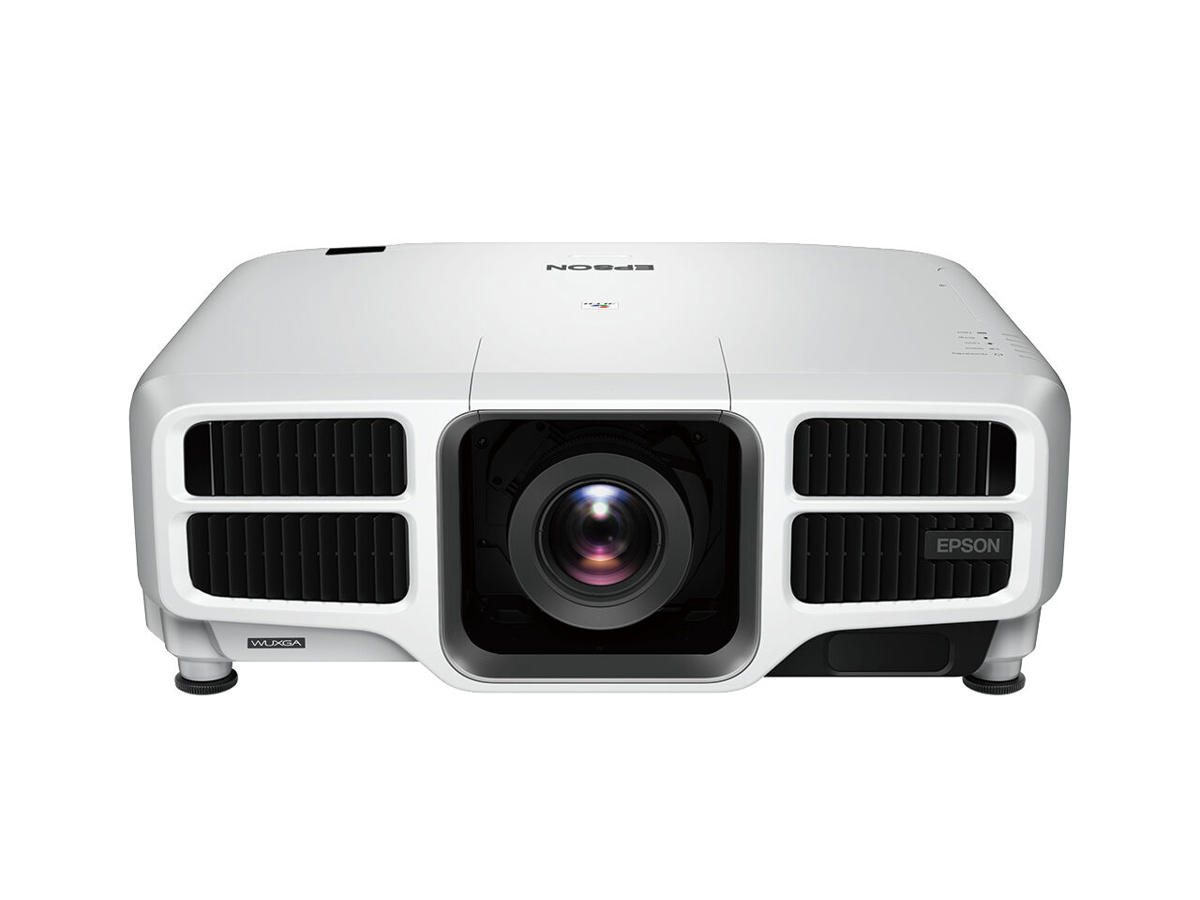

Exceptionally bright 15,000-lumen SXGA+ performance combines with rich, vivid colours to make the EB-L1710S installation laser projector an ideal option for large rooms and venues. As well as reliable fit and forget performance, it offers very flexible installation, creating a dedicated soliution for scenarios where only maximum performance and durability will do.
Laser-sharp images
Ensure that your presentations, images and video pack a punch with the vivid, sharp projection offered by this 3LCD laser projector. Designed for larger venues, its high resolution SXGA+ images are vivid and bright, even in daylight, while inorganic phosphor wheel technology provides superior light and heat resistance to deliver excellent reliability that lasts for up to 83,000 hours¹.
Flexible positioning
Thanks to a wide range of motorised lenses, including optional ultra-short-throw (UST) lens, the projector benefits from true 360° installation flexibility, allowing it to be placed virtually anywhere - without loss of brightness or distortion of image. The projector also has a built-in camera to ensure accurate calibration and capture diagnostic images (this can be fully disabled to prevent remote access).
Versatile new software
All models in the EB-L1000 series can take advantage of free Epson Professional Projector Tool software from December 2017. It allows you to set up multi-projector installations straight out of the box, simply and quickly, as well as utilising advanced techniques such as projection-mapping and edge-blending.
Quick set-up
Get started quickly thanks to a lens memory function which stores projector settings such as image position, focus and zoom, for prompt access when projecting images in different aspect ratios, or using different lenses. -
Projektør Projektor lysstyrke 15000 ANSI lumens Projektionsteknologi 3LCD Projektor indbygget opløsning SXGA+(1400x1050) Kontrastforhold (typisk) 2000:1 Naturligt aspektforhold 4:3 Skærmstørrelse kompatibilitet 1524 - 12700 mm (60 - 500") Projiceringsafstand 1,93 - 27,1 m Projektionsafstand (bred) 1,9 - 16,7 m Projektionsafstand (tele) 3,2 - 27,1 m Kontrastforhold (dynamisk) 2500000:1 Antal farver 1,07 milliarder farver Projektor lysstyrke (økonomisk tilstand) 10500 ANSI lumens Projektorens lysstyrke (portrættilstand) 15000 ANSI lumens Trapezkorrektion, horisontal ±30° Trapezkorrektion, vertikal ±45° Matrix størrelse 2,69 cm (1.06") Lyskilde Lyskilde type Laser Levetid for lyskilde 20000 t Levetid for lyskilde (økonomisk tilstand) 30000 t Linsesystem Fokus Motoriseret Brændviddeområde 36 - 57.35 mm Blændeområde (F-F) 1,8 - 2,3 Zoom kapacitet Ja Zoom type Automatisk Zoomforhold 1.6:1 Throw-forhold 1.62 - 2.65:1 Horisontalt område for optisk linseforskydning -19 - -19% Vandret område for optisk linseforskydning -55 - -55% Positionshukommelse for objektiv 10 Video Full HD Ingen Farvetilstande for video BT.709, Biograf, DICOM-simuleringstilstand, Dynamisk, Multi-projection, Præsentation Porte & Grænseflader Antal VGA-porte (D-sub) 2 Antal HDMI-porte 1 DVI-port Ja Lyd (L, R) indgang 1 Seriel grænsefladetype RS-232 Antal USB 2.0-porte 0 Antal USB 2.0 Type-B porte 1 Lyd (L, R) udgang 1 BNC-indgangsporte 1 Netværk Wi-Fi Ja Ethernet LAN-porte (RJ-45) 1 Wi-Fi-standarder 802.11b, 802.11g, Wi-Fi 4 (802.11n) Funktioner Støjniveau 40 dB Støjniveau (økonomisk tilstand) 32 dB Oprindelsesland Kina Beskyttelse af adgangskode Ja Design Produkttype Projektor til stort spillested Produktfarve Hvid Placering Desktop Slot til kabellås Ja Kabellåseslids type Kensington Strømstyring Strømkilde Vekselstrøm Strømforbrug (typisk) 1024 W Strømforbrug (standby) 0,3 W Strømforbrug (økonomi tilstand) 647 W Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Software Softwaresupport via: AMX, Crestron (Network), Extron Driftsbetingelser Opbevaringstemperatur (T-T) -10 - 60 °C Relativ luftfugtighed ved drift (H-H) 20 - 80% Relativ luftfugtighed ved opbevaring (H-H) 10 - 90% Vægt & størrelser Vægt 24,1 kg Bredde 586 mm Dybde 492 mm Højde 211 mm Pakkebredde 750 mm Pakkedybde 780 mm Pakkehøjde 330 mm Pakkevægt 31,1 kg Emballage indhold Fjernbetjening inkluderet Ja Kabler inkluderet VGA Hurtig start guide Ja WLAN-adapter inkluderet Ja Medfølgende software EasyMP Monitor, EasyMP Multi PC Projection Tekniske detaljer Andre funktioner Absolute Black, Auto Calibration, Customizable user logo, Frame interpolation, Integrated camera for image calibration & image capture, Lens position memory Understøttelse af mobilapp Ja Strømforbrug 938 Watt (Normal On-Mode), 1,024 Watt (Normal Peak-mode), 647 Watt (Eco Peak-Mode), 0.3 Watt (Energy saving standby) Logistik data Antal pr. pakke 1 stk Produkter pr. palle 4 stk Pallens bruttovægt 0 g Produkter pr. palle (UK) 4 stk Pallevægt (UK) 0 g Harmoniseret systemkode (HS) 85286200 Andre funktioner Grænseflade Jack plug in (3x), Jack plug out, HDBaseT, BNC in, HDMI in, DVI in, VGA out, VGA in, Ethernet interface (100 Base-TX / 10 Base-T), RS-232C, USB 2.0 Type B (Service Only), Wireless LAN b/g/g 2.4GHz (optional) RS-232-porte 1 Sikkerhedsfunktioner Kensington lock, Security bar, Wireless LAN unit lock, Wireless LAN security, Password protection Mulighedstype HDBaseT Transmitter, Quick wireless USB key, Wireless LAN unit Kontrolpanel 1.06 inch with C2 Fine
