Varenummer: V11H923640
Mere information
-

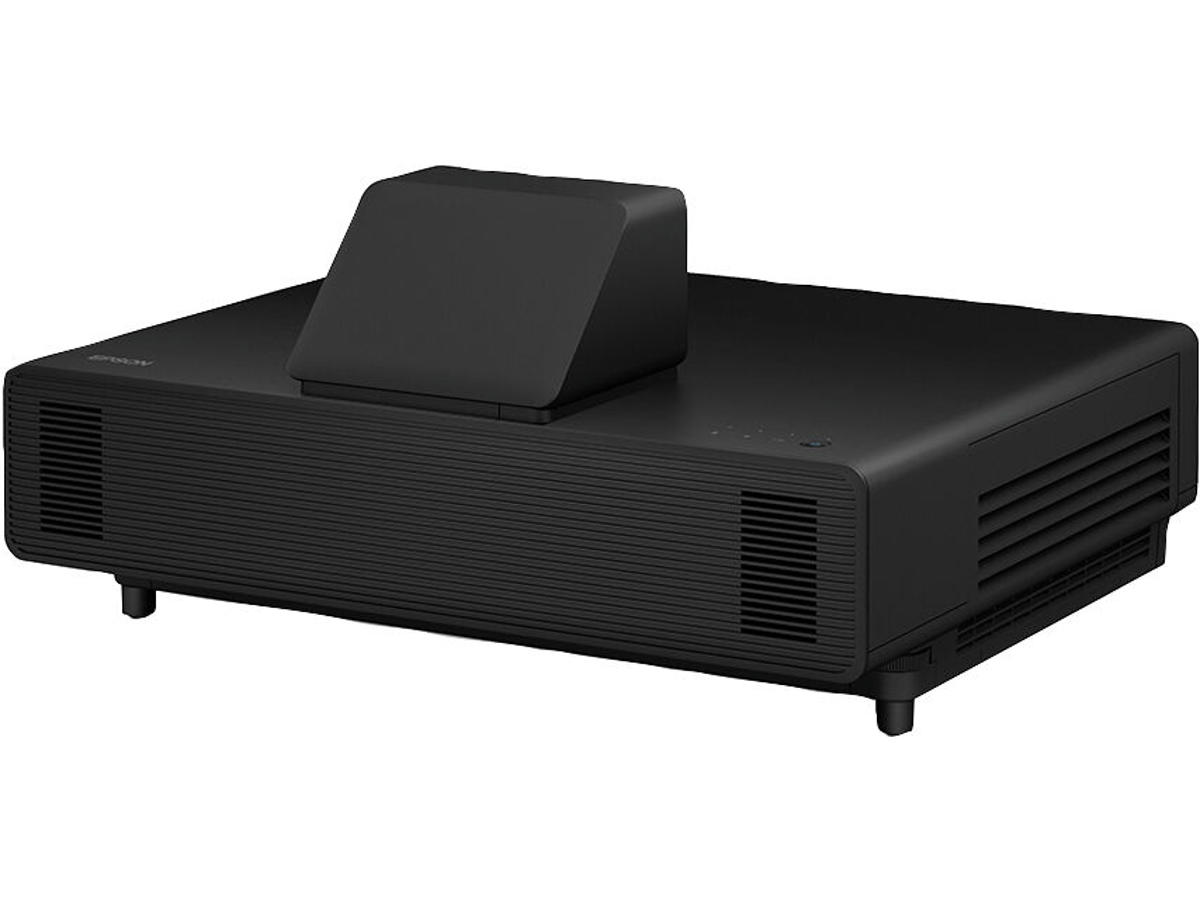

EB-805F
This laser display solution brings informative signage to life and produces scalable projections of up to 130 inches. It brings a fresh dimension to signage with borderless images and projection onto ultra-wide surfaces, including glass and curved walls. The EB-805F features Full HD 1080p image quality and delivers powerful and informative displays for retail, hospitality and visitor attractions.
Innovative and cost effective
Epson's advanced laser technology is robust and reliable, providing a fit-and-forget digital signage solution. It offers bright and vivid colours in a cost-effective solution that's capable of large display sizes.
Large and scalable images
The EB-805F enables scalable display sizes of up to 130 inches, in Full HD resolution with 5,000 lumen brightness and 3LCD technology for bright colours and high display quality even in bright spaces.
Versatile and easy to install
This sleek, stylish and bright display solution offers the flexibility to fulfil the most exacting brief, and the versatility to work in tight spaces. It can be mounted on the wall, ceiling, floor, or even hidden away to create added mystery. Its ultra-short-throw design enables projection of large images from a short distance. A white version is also available.
Flexible playback options
Content can be played directly from a USB stick, including: playlists, videos, and signage content using the built-in content playback feature and Epson Projector Content Manager software. Users can benefit from multi-projector and daisy-chain support for built-in edge blending, or illuminate an entire wall with one huge image. Also, the split screen feature allows users to connect multiple input sources to display different content sources simultaneously. -
Projektør Projektor lysstyrke 5000 ANSI lumens Projektionsteknologi 3LCD Projektor indbygget opløsning 1080p (1920x1080) Kontrastforhold (typisk) 2500000:1 Naturligt aspektforhold 16:9 Skærmstørrelse kompatibilitet 1651 - 3302 mm (65 - 130") Projektionsafstand (bred) 0 - 0,4 m Projektionsafstand (tele) 0 - 0,8 m Antal farver 1,07 milliarder farver Projektor lysstyrke (økonomisk tilstand) 3500 ANSI lumens Vertikalt scanningsområde 192 - 240 Hz Trapezkorrektion, horisontal -3 - 3° Trapezkorrektion, vertikal -3 - 3° Matrix størrelse 1,57 cm (0.62") Hvidt lysudbytte 5000 ANSI lumens Farve lysudbytte 5000 ANSI lumens Varmeafgivelse 1244 BUT/t Lyskilde Lyskilde type Laser Levetid for lyskilde 20000 t Levetid for lyskilde (økonomisk tilstand) 30000 t Linsesystem Fokus Vejledning Fast brændvidde 3,9 mm Zoom type Automatisk Zoomforhold 1.35:1 Throw-forhold 0.27 - 0.37:1 Video Full HD Ja Videobehandling 10 Bit Farvetilstande for video Blackboard, Biograf, Dynamisk, Præsentation, sRGB, DICOM-simuleringstilstand, Multi-projection Porte & Grænseflader Antal VGA-porte (D-sub) 2 Antal HDMI-porte 4 Lyd (L, R) indgang 3 Seriel grænsefladetype RS-232C HDMI- stiktype Fuld størrelse Antal USB 2.0-porte 2 Antal USB 2.0 Type-B porte 1 Lyd (L, R) udgang 1 Netværk Ethernet LAN Ja Ethernet LAN-porte (RJ-45) 1 Funktioner Støjniveau 36 dB Støjniveau (økonomisk tilstand) 27 dB Oprindelsesland Kina Beskyttelse af adgangskode Ja Multimedie Indbyggede højttaler(e) Ja Udgangseffekt (RMS) 8 W Design Produkttype Ultrakort projektor med kort projiceringsafstand Produktfarve Sort Placering Loft, Desktop, Væg Slot til kabellås Ja Kabellåseslids type Kensington Strømstyring Strømkilde Vekselstrøm Strømforbrug (typisk) 366 W Strømforbrug (standby) 0,5 W Strømforbrug (økonomi tilstand) 262 W Vekselstrømsindgangsspænding 220-240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Software Softwaresupport via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol Driftsbetingelser Opbevaringstemperatur (T-T) -10 - 60 °C Relativ luftfugtighed ved drift (H-H) 20 - 80% Relativ luftfugtighed ved opbevaring (H-H) 10 - 90% Vægt & størrelser Vægt 9,4 kg Bredde 458 mm Dybde 375 mm Højde 210 mm Pakkebredde 535 mm Pakkedybde 595 mm Pakkehøjde 350 mm Pakkevægt 13,2 kg Emballage indhold Fjernbetjening inkluderet Ja Batterier inkluderet Ja Kabler inkluderet Vekselstrøm Garantibevis Ja WLAN-adapter inkluderet Ja Medfølgende software Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management Tekniske detaljer Bæredygtighedscertifikater TCO Logistik data Antal pr. pakke 1 stk Produkter pr. palle 12 stk Pallens bruttovægt 0 g Produkter pr. palle (UK) 12 stk Pallevægt (UK) 0 g Harmoniseret systemkode (HS) 85286200 Andre funktioner Understøttede netværksprotokoller HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
