Digital signage solution

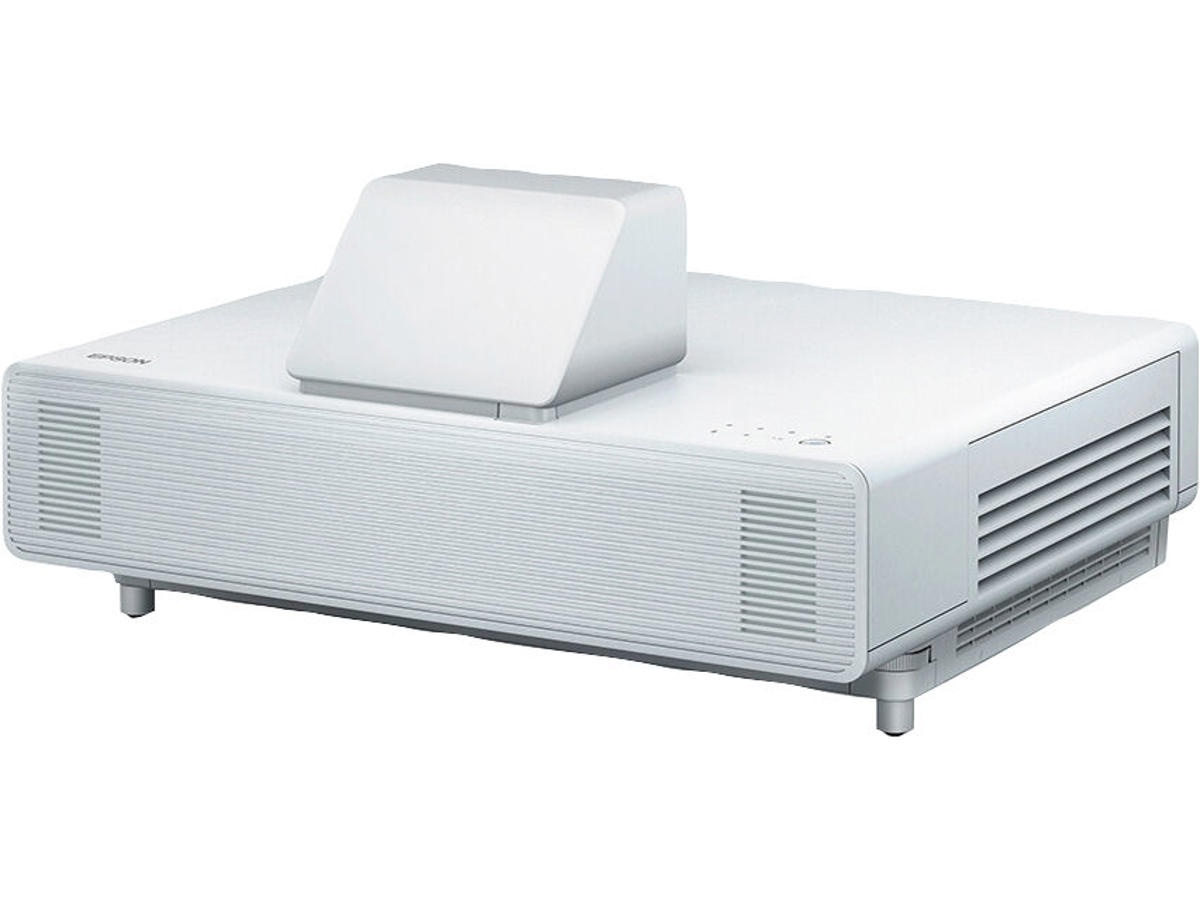

This laser display solution brings informative signage to life and produces scalable projections of up to 130 inches. It brings a fresh dimension to signage with borderless images and projection onto ultra-wide surfaces, including glass and curved walls. The EB-800F features Full HD 1080p image quality and delivers powerful and informative displays for retail, hospitality and visitor attractions.
Innovative and cost effective
Epson's advanced laser technology is robust and reliable, providing a fit-and-forget digital signage solution. It offers bright and vivid colours in a cost-effective solution that's capable of large display sizes.
Large and scalable images
The EB-800F enables scalable display sizes of up to 130 inches, in Full HD resolution with 5,000 lumen brightness and 3LCD technology for bright colours and high display quality even in bright spaces.
Versatile and easy to install
This sleek, stylish and bright display solution offers the flexibility to fulfil the most exacting brief, and the versatility to work in tight spaces. It can be mounted on the wall, ceiling, floor, or even hidden away to create added mystery. Its ultra-short-throw design enables projection of large images from a short distance. A black version is also available.
Flexible playback options
Content can be played directly from a USB stick, including: playlists, videos, and signage content using the built-in content playback feature and Epson Projector Content Manager software. Users can benefit from multi-projector and daisy-chain support for built-in edge blending, or illuminate an entire wall with one huge image. Also, the split screen feature allows users to connect multiple input sources to display different content sources simultaneously. -
Projektør Projektor lysstyrke 5000 ANSI lumens Projektionsteknologi 3LCD Projektor indbygget opløsning 1080p (1920x1080) Kontrastforhold (typisk) 2500000:1 Naturligt aspektforhold 16:9 Skærmstørrelse kompatibilitet 1651 - 3302 mm (65 - 130") Projektionsafstand (bred) 0 - 0,4 m Projektionsafstand (tele) 0 - 0,8 m Kontrastforhold (dynamisk) 5000000:1 Antal farver 1,07 milliarder farver Projektor lysstyrke (økonomisk tilstand) 3500 ANSI lumens Vertikalt scanningsområde 192 - 240 Hz Trapezkorrektion, horisontal ±3° Trapezkorrektion, vertikal ±3° Matrix størrelse 1,57 cm (0.62") Varmeafgivelse 1244 BUT/t Lyskilde Lyskilde type Laser Levetid for lyskilde 20000 t Levetid for lyskilde (økonomisk tilstand) 30000 t Linsesystem Fokus Vejledning Brændviddeområde 3.9 mm Fast brændvidde 3,9 mm F-number (relativ aperture) 1,5 Zoom kapacitet Ja Zoom type Automatisk Zoomforhold 1.35:1 Throw-forhold 0.27 - 0.37:1 Video Full HD Ja 3D Ingen Videobehandling 10 Bit Farvetilstande for video Blackboard, Biograf, DICOM-simuleringstilstand, Dynamisk, Multi-projection, Præsentation, sRGB Porte & Grænseflader Antal VGA-porte (D-sub) 3 Antal HDMI-porte 4 Sammensat videoindgang 1 Komponentvideo (YPbPr/YCbCr) indgang 0 DVI-port Ingen Lyd (L, R) indgang 3 Seriel grænsefladetype RS-232C Antal af S-video-indgange 0 HDBaseT-port Ja Antal USB 2.0-porte 2 Antal USB 2.0 Type-B porte 1 Lyd (L, R) udgang 1 Netværk Smart TV Ingen Ethernet LAN Ja Wi-Fi Ingen Ethernet LAN-porte (RJ-45) 1 Ethernet LAN-datahastigheder 10,100 Mbit/s Webbrowser Ja Lagring Indbygget kortlæser Ingen Funktioner Støjniveau 36 dB Støjniveau (økonomisk tilstand) 27 dB Oprindelsesland Filippinerne Beskyttelse af adgangskode Ja Multimedie Indbyggede højttaler(e) Ja Udgangseffekt (RMS) 8 W Antal indbyggede højttalere 2 Design Produkttype Ultrakort projektor med kort projiceringsafstand Markedspositionering Forretning Produktfarve Hvid Placering Loft, Desktop, Væg Slot til kabellås Ja Kabellåseslids type Kensington Strømstyring Strømkilde Vekselstrøm Strømforbrug (typisk) 366 W Strømforbrug (standby) 0,5 W Strømforbrug (økonomi tilstand) 262 W Vekselstrømsindgangsspænding 220 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Software Softwaresupport via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol Driftsbetingelser Opbevaringstemperatur (T-T) -10 - 60 °C Relativ luftfugtighed ved drift (H-H) 20 - 80% Relativ luftfugtighed ved opbevaring (H-H) 10 - 90% Vægt & størrelser Vægt 9,4 kg Bredde 458 mm Dybde 375 mm Højde 210 mm Pakkebredde 530 mm Pakkedybde 595 mm Pakkehøjde 345 mm Pakkevægt 13,2 kg Emballage indhold Fjernbetjening inkluderet Ja Batterier inkluderet Ja Kabler inkluderet Vekselstrøm Garantibevis Ja WLAN-adapter inkluderet Ja Emballageindhold CD manual, cable cover, lens cap, warranty document Medfølgende software Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management Tekniske detaljer Andre funktioner A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Driverless installation, Edge Blending, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network administration, Network projection, OSD copy function, PC Free, Power on button, Quick Corner, Schedule Function, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, iProjection App Bæredygtighedscertifikater TCO Understøttelse af mobilapp Ja USB-skærmfunktion 2 in 1: Image/ Sound Strømforbrug 293 Watt (Normal On-Mode), 194 Watt (Eco On-Mode), 366 Watt (Normal Peak-mode), 262 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) Logistik data Antal pr. pakke 1 stk Produkter pr. palle 12 stk Pallens bruttovægt 0 g Produkter pr. palle (UK) 12 stk Pallevægt (UK) 0 g Harmoniseret systemkode (HS) 85286200 Andre funktioner Grænseflade USB 2.0-A (2x), USB 2.0, Powered USB, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac (optional), VGA in (2x), VGA out, HDMI in (3x), HDMI out, Composite in, HDBaseT, Miracast (optional), Jack plug out, Jack plug in (3x) Understøttede netværksprotokoller HTTPS, IPv6, SNMP, ESC/VP.net, PJLink Sikkerhedsfunktioner Kensington lock, Password lock, Padlock, Security cable hole, Password protection Mulighedstype Wireless LAN unit Kontrolpanel 0.62 inch with C2 Fine
