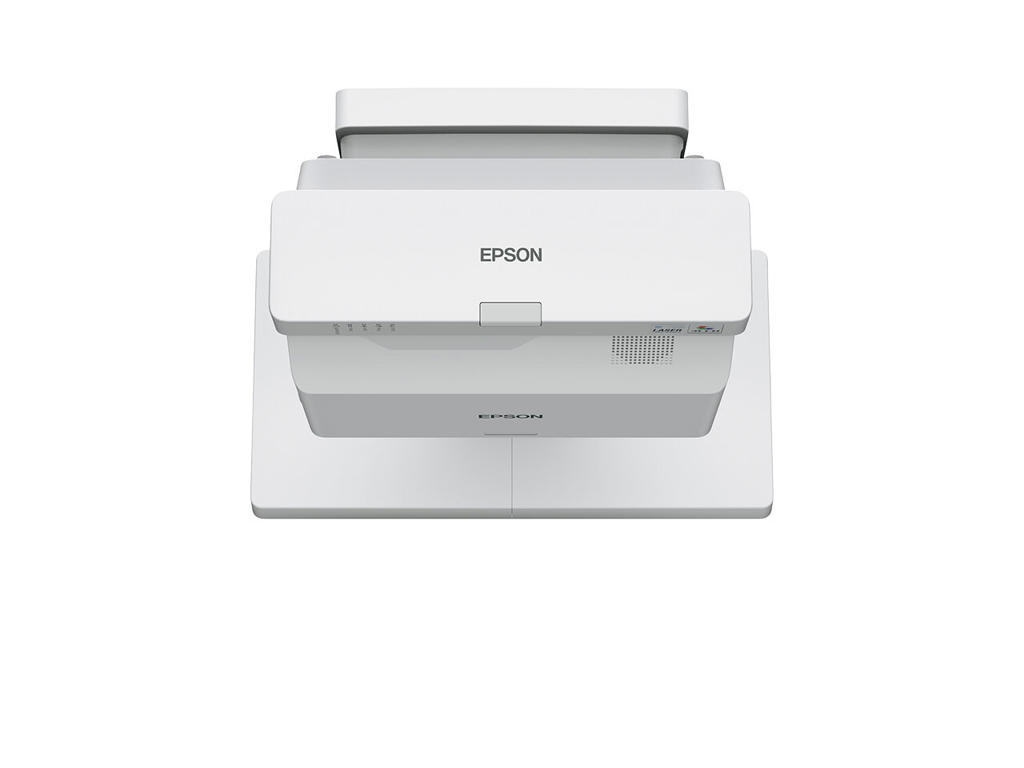

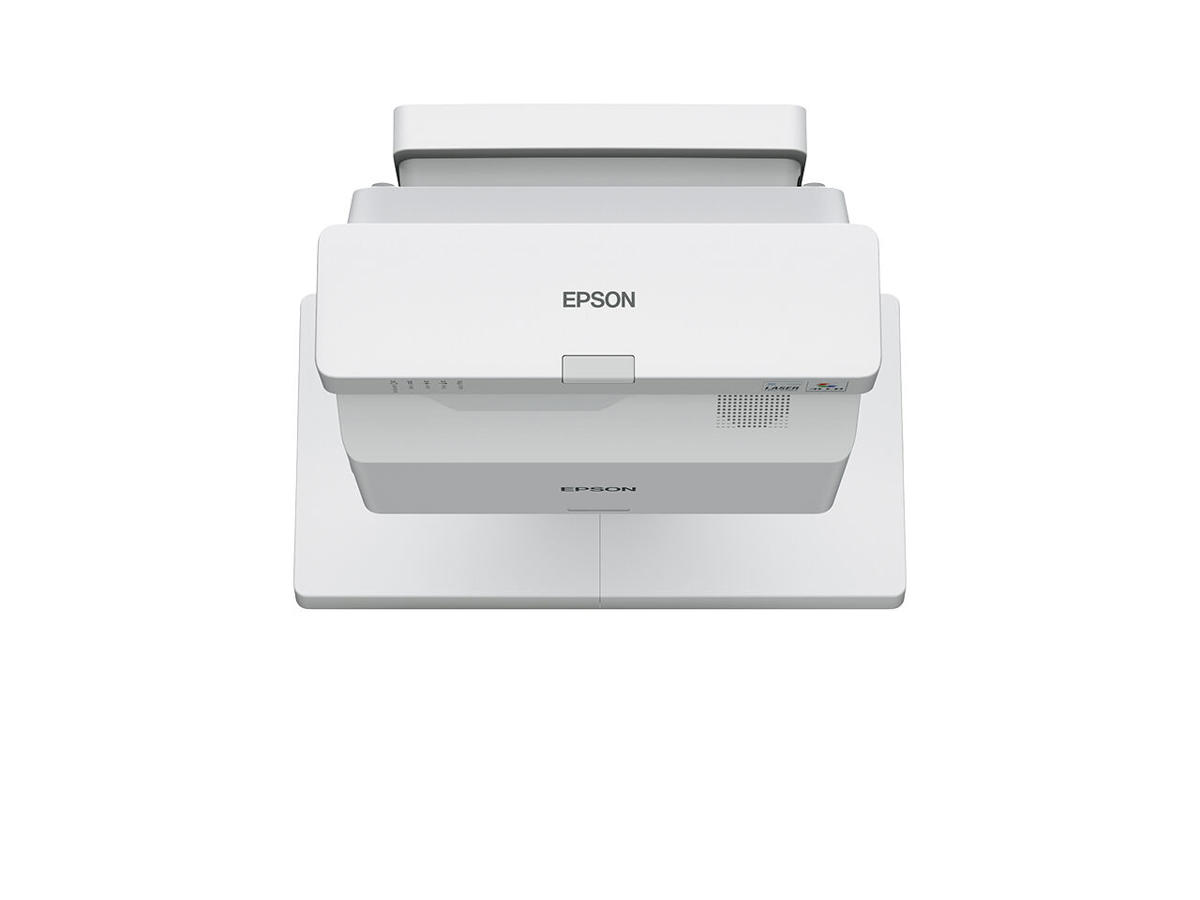

Agile UST laser display
Whatever the size of class or meeting room, unrestricted and immersive presentations are possible with this bright, clear, compact and affordable display solution.
The EB-770F's bright, 1080p image, scalable up to 150", is clearly visible from every angle and at a distance, and content can easiliy be shared or streamed directly from multiple devices for the ultimate collaborative experience.
The EB-770F's ultra short throw lens allows safe, discreet positioning close to the display, enabling presenters free access to perform without casting shadows.
With 4,100 lumens CLO and 3LCD technology, the display is bright and vibrant up to 150", clearly visible from all angles and at a distance. The experience is immersive and user-friendly.
Scalable from 49-150", display sizes can be optimised for each room with one product and a fixed cost, and the EB-770F supports multi-projection edge-blending for a low cost, large, seamless, energy efficient 3780x1080p image.
Versatile wired and wireless connectivity options, including Miracast™ screen mirroring, ensures effortless, multi-device content sharing, and with a connected optional Epson visualiser, documents, presentations or 3D objects can be projected in incredible detail to the whole room.
Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes. Paired with a hygienic, antibacterial whiteboard, teachers can annotate presentations with dry-wipe pens, or to save energy, simply use the whiteboard with the display turned off. -
Projektør Projektor lysstyrke 4100 ANSI lumens Projektionsteknologi 3LCD Projektor indbygget opløsning 1080p (1920x1080) Kontrastforhold (typisk) 2500000:1 Naturligt aspektforhold 16:9 Skærmstørrelse kompatibilitet 1524 - 3810 mm (60 - 150") Kontrastforhold (dynamisk) 5000000:1 Antal farver 1,07 milliarder farver Projektor lysstyrke (økonomisk tilstand) 2800 ANSI lumens Vertikalt scanningsområde 192 - 240 Hz Trapezkorrektion, horisontal ±3° Trapezkorrektion, vertikal ±3° Varmeafgivelse 895 BUT/t Lyskilde Lyskilde type Laser Levetid for lyskilde 20000 t Levetid for lyskilde (økonomisk tilstand) 30000 t Linsesystem Fokus Vejledning Brændviddeområde 3.7 mm F-number (relativ aperture) 1,6 Zoom kapacitet Ja Zoomforhold 1.35:1 Throw-forhold 0.25 - 0.35:1 Video Videobehandling 10 Bit Farvetilstande for video Blackboard, Biograf, DICOM-simuleringstilstand, Dynamisk, Multi-projection, Præsentation, sRGB Porte & Grænseflader Antal VGA-porte (D-sub) 2 Antal HDMI-porte 3 Sammensat videoindgang 1 Komponentvideo (YPbPr/YCbCr) indgang 0 Antal USB 2.0-porte 0 Antal USB 2.0 type-A-porte 2 Antal USB 2.0 Type-B porte 1 Mini-USB 2.0 porte, antal 0 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 0 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte 0 Udgange til hovedtelefoner 1 Audio Return Channel (ARC) Ingen Netværk Ethernet LAN Ja Wi-Fi Ja Bluetooth Ingen Funktioner Støjniveau 37 dB Støjniveau (økonomisk tilstand) 27 dB HDCP Ingen Skærm spejling Ja Oprindelsesland Filippinerne High Dynamic Range (HDR) understøttet Ingen Beskyttelse af adgangskode Ja Multimedie Indbyggede højttaler(e) Ja Udgangseffekt (RMS) 16 W Antal indbyggede højttalere 1 TV-tuner, integreret Ingen Design Produktfarve Hvid Placering Loft, Desktop, Væg Slot til kabellås Ja Kabellåseslids type Kensington Display Indbygget skærm Ingen Strømstyring Strømkilde Vekselstrøm Strømforbrug (typisk) 197 W Strømforbrug (standby) 0,5 W Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Driftsbetingelser Opbevaringstemperatur (T-T) -10 - 60 °C Relativ luftfugtighed ved drift (H-H) 20 - 80% Relativ luftfugtighed ved opbevaring (H-H) 10 - 90% Vægt & størrelser Vægt 5,9 kg Bredde 356 mm Dybde 395 mm Højde 133 mm Pakkebredde 450 mm Pakkedybde 485 mm Pakkehøjde 325 mm Pakkevægt 8,73 kg Emballage indhold Fjernbetjening inkluderet Ja Kabler inkluderet Vekselstrøm Medfølgende software Epson Creative Projection, EasyMP Multi PC Projection, Epson BarCode Fonts, Epson Classroom Connect Tekniske detaljer Andre funktioner 21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network projection, OSD copy function, PC Free, Point correction, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App Understøttelse af mobilapp Ja Strømforbrug 197 Watt (Normal On-Mode), 141 Watt (Eco On-Mode), 263 Watt (Normal Peak-mode), 199 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) Logistik data Antal pr. pakke 1 stk Produkter pr. palle 12 stk Pallens bruttolængde 120 cm Pallens bruttobredde 80 cm Pallens bruttohøjde 2,1 m Produkter pr. pallelag 2 stk Produkter pr. pallelag (UK) 4 stk Produkter pr. palle (UK) 24 stk Pallelængde (UK) 120 cm Pallehøjde (UK) 2,1 m Andre funktioner Grænseflade USB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), USB 2.0 Type B (Service Only), Wi-Fi Direct, Microphone input Understøttede netværksprotokoller HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink Sikkerhedsfunktioner Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection Mulighedstype Air filter, Ceiling mount, Connection and control box, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01 Kontrolpanel 0.62 inch with C2 Fine
