Flexible laser display solution

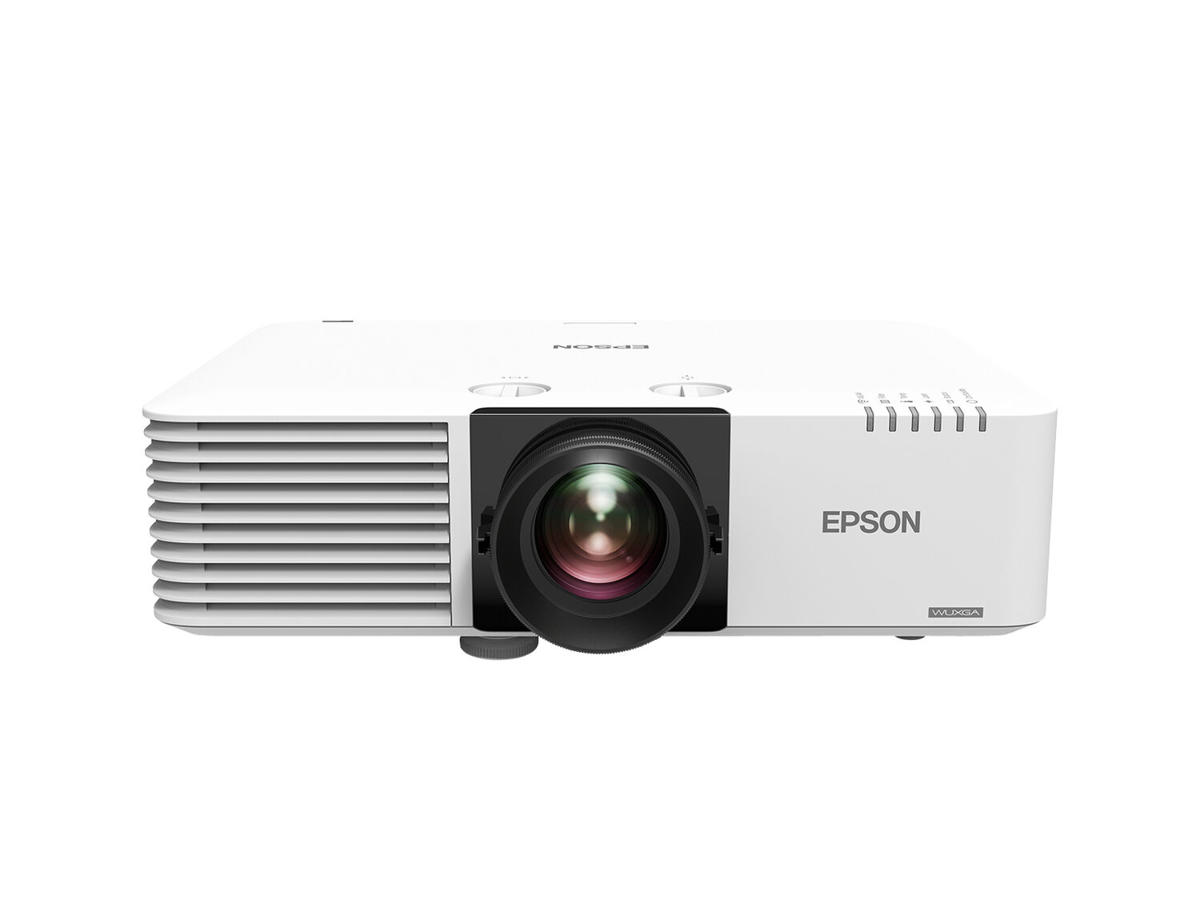

This laser projector has been designed to deliver large-scale, vivid displays. With the EB-L530U, you'll benefit from a lower-cost, high brightness laser display solution that makes lamp replacements and clunky, inflexible flat panels problems of the past. As the market leader in 3LCD technology, Epson continues to improve its high brightness laser projectors with even smaller and more compact display solutions. The EB-L530U delivers effective, practical and creative display applications across a number of different industries.
Experience brighter and bolder displays
The EB-L530U produces more engaging and impactful displays even in brightly lit environments. It offers impressive 5,200-lumen brightness and WUXGA Full HD resolution at an affordable price. This means you can upgrade to laser performance and reliability, with reduced power consumption. It also features: 4K input support, detail enhancement technology, edge blending and wide lens shift to fit challenging installation environments. The EB-L530U is capable of up to 500-inch displays, without any reduction in clarity or vivid detail.
Install with ease
The EB-L530U includes many professional features which make installation simple, even when producing more advanced displays. This stylish and compact projector offers 360-degree installation, without compromising the display quality, and supports 16:6 ultra-widescreen, which means you can maximise the visible display space available. Also, with split-screen capability you can display two or four images from different sources simultaneously; and geometric correction and edge blending help create one large, seamless image using multiple displays.
Scale to suit your environment
Unlike a flat-panel display, there's no glare, fingerprints or wasted wall space. The image can be scaled to fit the required display size, from 50 to 500 inches. Whether it’s for education, corporate, retail or visitor attractions, the viewing experience can be unrestricted and more engaging for the audience.
Connect and control
The EB-L530U offers many ways to connect, show multiple sources simulateneously and present wirelessly. The future-proofed connectivity options include: HDMI (input and output) and HDBaseT with 4K signal support, 5GHz wireless with enterprise security, built-in media player, built-in Miracast and support for Epson’s ELPWP10 wireless presentation system. It is also easy to set up and navigate thanks to the intuitive on-screen user guide.
Create customised content for signage
Featuring a built-in media player with network content upload, The EB-L530U allows playlists to be loaded onto a USB storage device and played directly from the projector². Create customised content with your smartphone or tablet using the Epson Creative Projection App or create and schedule playlists using Epson Projector Content Manager software.
Plug, click and collaborate
Collaboration is made easy with Epson’s wireless presentation system, the ELPWP10. Achieve cost-saving and contemporary wireless connectivity. No cables - just plug-and-play!
Take control of your projected images
Achieve greater levels of image manipulation and control with Epson Projector Professional Tool software. Advanced features such as edge blending, projection mapping and multi-projector control are simplified thanks to this free and intuitive tool.
Support social distancing
Where social distancing remains both a requirement and responsible consideration, the scalable display size of up to 500 inches allows the content to be viewed from any position. -
Projektør Projektor lysstyrke 5200 ANSI lumens Projektionsteknologi 3LCD Projektor indbygget opløsning WUXGA (1920x1200) Kontrastforhold (typisk) 2500000:1 Naturligt aspektforhold 16:10 Smart projektor Ingen Skærmstørrelse kompatibilitet 1270 - 12700 mm (50 - 500") Projiceringsafstand 1,44 - 23,84 m Projektionsafstand (bred) 1,4 - 14,8 m Projektionsafstand (tele) 2,4 - 23,8 m Kontrastforhold (dynamisk) 5000000:1 Antal farver 1,07 milliarder farver Projektor lysstyrke (økonomisk tilstand) 3640 ANSI lumens Trapezkorrektion, horisontal ±30° Trapezkorrektion, vertikal ±30° Matrix størrelse 1,7 cm (0.67") Lyskilde Lyskilde type Laser Levetid for lyskilde 20000 t Levetid for lyskilde (økonomisk tilstand) 30000 t Linsesystem Fokus Vejledning Brændviddeområde 20 - 31.8 mm Blændeområde (F-F) 1,5 - 1,7 Zoom kapacitet Ja Zoom type Vejledning Zoomforhold 1.6:1 Throw-forhold 1.35 - 2.20:1 Horisontalt område for optisk linseforskydning -20 - -20% Vandret område for optisk linseforskydning -50 - -50% Video Full HD Ja Videobehandling 10 Bit Farvefunktioner (2D) Biograf, Dynamisk, sRGB, DICOM SIM, Præsentation Farvetilstande for video Biograf, DICOM-simuleringstilstand, Dynamisk, Multi-projection, Præsentation, sRGB Porte & Grænseflader Antal VGA-porte (D-sub) 2 Antal HDMI-porte 3 Sammensat videoindgang 0 Komponentvideo (YPbPr/YCbCr) indgang 0 DVI-port Ingen Lyd (L, R) indgang 0 Seriel grænsefladetype RS-232C HDMI- stiktype Fuld størrelse HDBaseT-port Ja Antal USB 2.0-porte 2 Antal USB 2.0 Type-B porte 1 Pc lydindgang Ja PC-lydudgang Ja AC (strøm) indgang Ja Netværk Smart TV Ingen Ethernet LAN Ja Wi-Fi Ja Ethernet LAN-porte (RJ-45) 1 Wi-Fi-standarder 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) Miracast Ja Lagring Indbygget kortlæser Ingen Funktioner Støjniveau 31 dB Interaktiv Ingen Støjniveau (økonomisk tilstand) 23 dB HDCP Ja Oprindelsesland Filippinerne Beskyttelse af adgangskode Ja Multimedie Indbyggede højttaler(e) Ja Udgangseffekt (RMS) 10 W Antal indbyggede højttalere 1 Design Produkttype Standard-kast projektor Markedspositionering Præsentation Produktfarve Hvid Placering Loft, Desktop Slot til kabellås Ja Kabellåseslids type Kensington Display Indbygget skærm Ingen Strømstyring Strømkilde Vekselstrøm Strømforbrug (typisk) 293 W Strømforbrug (standby) 0,3 W Strømforbrug (økonomi tilstand) 223 W Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Software Softwaresupport via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol Driftsbetingelser Opbevaringstemperatur (T-T) -10 - 60 °C Relativ luftfugtighed ved drift (H-H) 20 - 80% Relativ luftfugtighed ved opbevaring (H-H) 10 - 90% Vægt & størrelser Vægt 8,2 kg Bredde 440 mm Dybde 339 mm Højde 136 mm Pakkebredde 540 mm Pakkedybde 565 mm Pakkehøjde 210 mm Pakkevægt 12 kg Emballage indhold Fjernbetjening inkluderet Ja Batterier inkluderet Ja Kabler inkluderet Vekselstrøm Brugervejledning Ja Garantibevis Ja WLAN-adapter inkluderet Ja Tekniske detaljer Andre funktioner 21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, Horizontal and vertical keystone correction, JPEG Viewer, Long light source life, PC Free, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Super resolution, Ultra-wide display (16:6), Volume control, Web Control, Web Remote, Wireless LAN capable, iProjection App Bæredygtighedscertifikater TCO Understøttelse af mobilapp Ja Strømforbrug 234 Watt (Normal On-Mode), 164 Watt (Eco On-Mode), 293 Watt (Normal Peak-mode), 223 Watt (Eco Peak-Mode), 0.3 Watt (Energy saving standby) Logistik data Antal pr. pakke 1 stk Produkter pr. palle 14 stk Pallens bruttovægt 0 g Produkter pr. palle (UK) 14 stk Pallevægt (UK) 0 g Harmoniseret systemkode (HS) 85286200 Andre funktioner Grænseflade USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wireless LAN a/n (5GHz), VGA in (2x), VGA out, HDMI out, HDBaseT, Miracast, Jack plug out, Jack plug in (2x), HDMI (HDCP 2.3) (2x), USB 2 Type A playback Understøttede netværksprotokoller HTTPS, IPv6, SNMP, ESC/VP.net, PJLink Sikkerhedsfunktioner Kensington lock, Control panel lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection Mulighedstype Connection and control box, Document camera, External Speaker, HDBaseT Transmitter, MB22 ceiling mount, Wireless LAN unit Kontrolpanel 0.67 inch with C2 Fine
