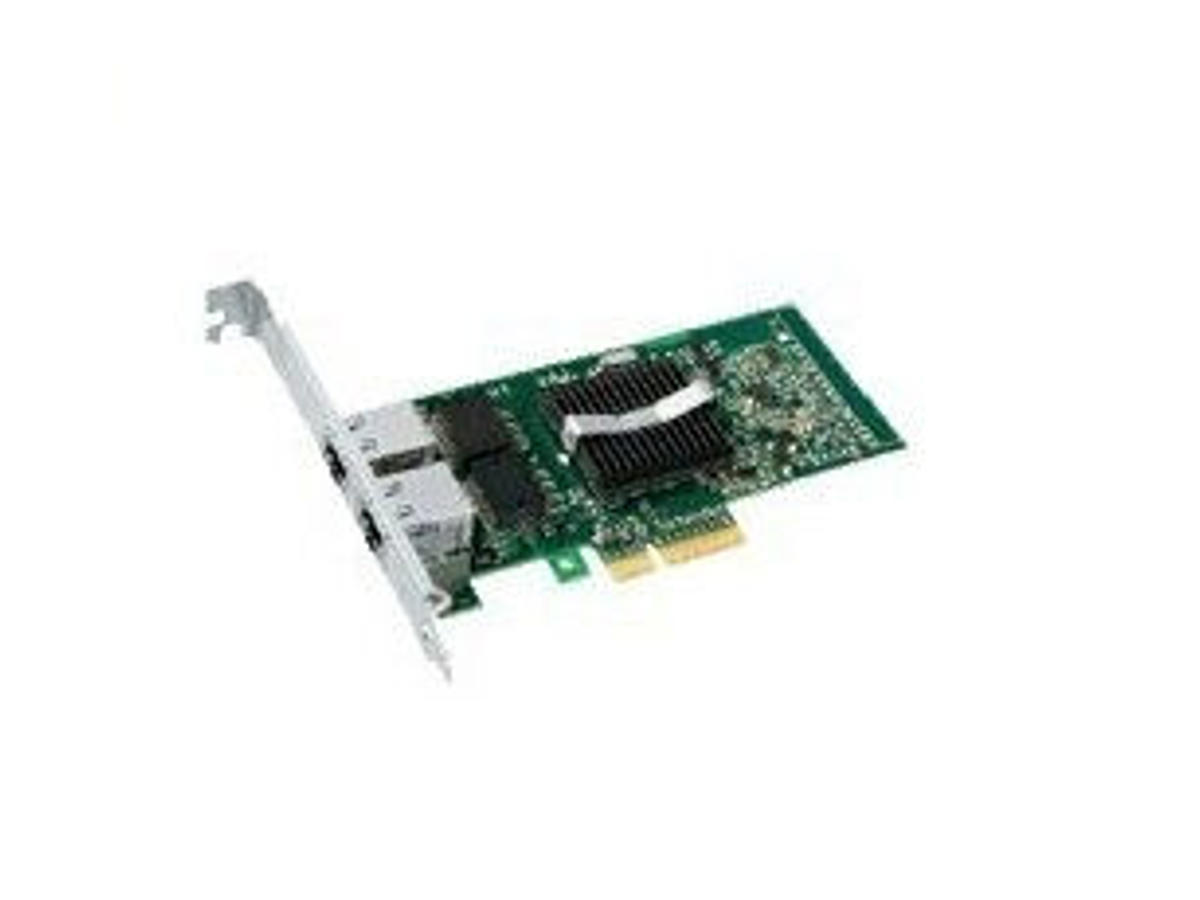

Enhance your server performance by conserving PCI Express® (PCIe) server slots and adding multi-port Gigabit Ethernet capability with the Intel® PRO/1000 PT Dual Port Server Adapter. The dedicated input/output (I/O) bandwidth of PCIe ensures priority performance on each port - without bus sharing - for Gigabit Ethernet connectivity in Category-5 networks. It improves performance in multi-processor systems by balancing network loads across multiple central processing units (CPUs). Featuring Intel® 82571GB Gigabit Controllers, this adapter enables two Gigabit Ethernet connections on a single adapter, delivering increased bandwidth for slot-constrained servers.
It includes Intel® PROSet Utility for Windows® that provides point-and-click power over individual adapters, enhanced adapter features, connection teaming and Device Manager virtual local area network (VLAN) configuration. Compatible with x4 PCI Express® slot, the PRO/1000 PT allows dual-port operation in almost any PCI Express® server slot, except x1 slots, and allows each port to operate without interfering with the other. This pack contains 5 PRO/1000 PT Dual Port Server Adapters.
| Porte & Grænseflader | |
| Forbindelsesteknologi | Ledningsført |
| Værtsgrænseflade | PCI Express |
| Grænseflade | Ethernet |
| Ethernet LAN-porte (RJ-45) | 2 |
| Netværk | |
| Maksimal dataoverførselshastighed | 1000 Mbit/s |
| Netværksstandarder | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN | Ja |
| Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
| Kabelteknologi | 10/100/1000BaseT(X) |
| Wake-on-LAN klar | Ja |
| Fuld duplex | Ja |
| LAN Kontroller | Intel® 82541PI |
| Design | |
| Intern | Ja |
| Komponent til | Server |
| Produktfarve | Grøn |
| Certificering | FCC Class B certified, UL, VCCI, C-Tick, BSMI, MIC |
| Systemkrav | |
| Understøttede Windows-operativsystemer | Windows 2000, Windows 2000 Professional |
| Understøttede Linux-operativsystemer | Ja |
| Andre understøttede operativsystemer | Novell NetWare 5.x, Novell NetWare 6.x |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 55 °C |
| Vægt & størrelser | |
| Bredde | 22,8 mm |
| Dybde | 129,5 mm |
| Højde | 119,3 mm |
| Emballeringsdata | |
| Antal pr. pakke | 1 stk |
| Tekniske detaljer | |
| Compliance-certifikater | RoHS |
| Andre funktioner | |
| Administrationsprotokoller | SNMP, DMI 2.0 |
