Dual Core CPU for Snappy System Performance
Two heads are better than one, which is why the N4200's dual core Intel® CPU can deliver increased system response and handle multiple clients quickly and efficiently. Enjoy the performance and power of the N4200 with Intel Inside.
Unmatched Reliability with Dual DOM Design
A Disk On Module (DOM) contains all of the system's critical software. If it stops working for any reason, your system firmware could be inaccessible - or worse. With the N4200's Dual DOM Design, a secondary DOM automatically reprograms the primary DOM if it fails, meaning your data is always safe and accessible.
Easy Administration with Dual Displays
Featuring two separate displays, the N4200 is incredibly friendly to use. The LCD displays critical system information, including hard disk and network status, while the OLED allows you to change a number of different system settings, such as WAN, LAN, Link Aggregation, languages and more.
Dual Power for Untouchable Data Integrity
Sudden power failures can spell trouble for your data. If the power goes out during a firmware upgrade, your entire system could be at risk. Enter the N4200's Battery Backup Module (BBM). With the equipped lithium-ion BBM, all unwritten data is automatically saved into hard disks, ensuring both data and system integrity at all times.
Increased Flexibility with Dual HDD Profile Support
The N4200 features Thecus' unique combo SATA hard disk bays, which can accommodate both 2.5" and 3.5" SATA hard disks! Choose 2.5" drives for lower power consumption and quieter operation, or 3.5" drives for extra capacity and performance. With the N4200, the choice is yours.

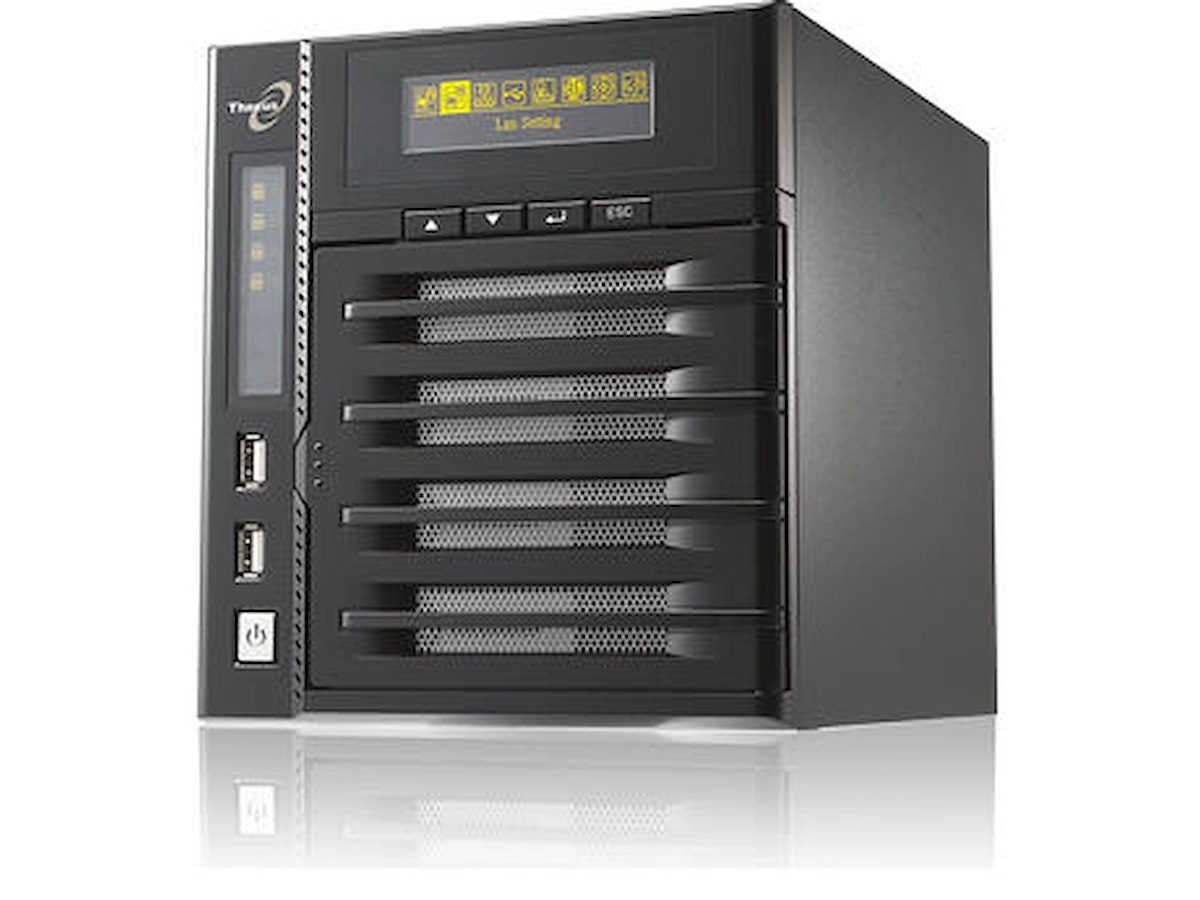

The N4200 was designed to enable users to access their data both quickly and easily. It begins with the new Intel® Atom™ dual-core processor D510, which runs at 1.66GHz and, in combination with 1GB of DDR2 memory, delivers both blistering data transfer speeds and increased system response. Users can easy manage their unit with the N4200's dual displays. The LCD offers a wealth of system information, including hard disk and network status, while the big and bright 2.8" OLED display allows users to modify a number of settings directly on the device including WAN, LAN, Link Aggregation, languages and more, making the N4200 the friendliest Thecus® NAS ever.
"The enormous growth of Internet-connected devices and rich media content in the home is driving demand for innovative Network Attached Storage solutions that are powerful yet easy to use" Seth Bobroff, General Manager, Data Center Group
Of course, the N4200 is incredibly adept at both storing and securing data. Four SATA II hard disk bays offer up to 8TB of storage capacity, which is plenty of space for all sorts of digital photos, movies, and music. To keep data safe, the N4200 comes with multiple RAID modes, including RAID 0, 1, 5, 6, 10 and JBOD. The N4200 is equipped with Dual DOM technology, which uses a secondary DOM to reprogram the primary DOM in the event of a failure, and ensures maximum uptime and data availability. The N4200 can even handle itself during a power outage, thanks to the built-in battery backup module (BBM). Should the power go out for any reason, the N4200 automatically retains unwritten data in hard drives to maintain data integrity. -
Lagring Total installeret opbevaringskapacitet 0 TB Antal installerede lagerdiske 0 Antal understøttede lagerdiske 4 Kapacitet af datalagringsdrev 0 GB Grænseflade til lagerdisk SATA Størrelse på lagerdisk 3.5" RAID-niveauer 0, 1, 5, 6, 10, JBOD Hot-swap drevbåse Ja Processor Processorserie Intel Atom® Processorproducent Intel Processormodel D510 Processorfrekvens 1,66 GHz Processorkerner 2 Processortråde 4 Processor-cache 1 MB Bus type DMI Fejlkorrigerende kode understøttet af processor Ingen Fysisk adresse udvidelse (PAE) 32 Bit Behandling Die størrelse 87 mm² Processor cache type L2 Processor kode SLBLA Processor kodenavn Pineview Processor litografi 45 nm Processor driftstilstande 64-bit Processor-pakke størrelse 22 x 22 mm Processor sokkel BGA 559 Stepping B0 Tjunction 100 °C Thermal Design Power (TDP) 13 W Maksimal intern hukommelse understøttet af processor 4 GB Hukommelsesbåndbredde understøttet af processor (maks.) 6,4 GB/sek. Konfliktfri processor Ingen Hukommelse Intern hukommelse 1 GB Intern hukommelsestype DDR2 Porte & Grænseflader Ethernet LAN-porte (RJ-45) 2 Antal USB 2.0-porte 6 Antal eSATA-porte 2 Design Skærmtype OLED Processor særlige funktioner Indlejret tilgængelige muligheder Ja Enhanced Intel SpeedStep Teknologi Ingen Udfør deaktivering af bit Ja Idle status Ingen Intel® 64 Ja Intel® Demand Based Switching Ingen Intel® Enhanced Halt State Ingen Intel® Trusted Execution Teknologi Ingen Intel® Virtualization Technology (VT-x) Ingen Intel® Virtualization Technology for Directed I/O (VT-d) Ingen Intel® AES Nye Instruktioner (Intel® AES-NI) Ingen Intel® Hyper Threading Teknologi (Intel® HT Technology) Ja Intel® Turbo Boost Teknologi Ingen Antal behandling Die transistorer 176 M Termiske overvågningsteknologier Ingen Hukommelseskanaler understøttet af processor Enkelt Driftsbetingelser Driftstemperatur (T-T) 5 - 40 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Andre funktioner Kompatible operativsystemer Windows 2000/2003/XP/Vista/7 UNIX/Linux Mac OS 9/X Netværksfunktioner 10/100/1000 Base-TX Processor ARK ID 43098
