Mere information
-

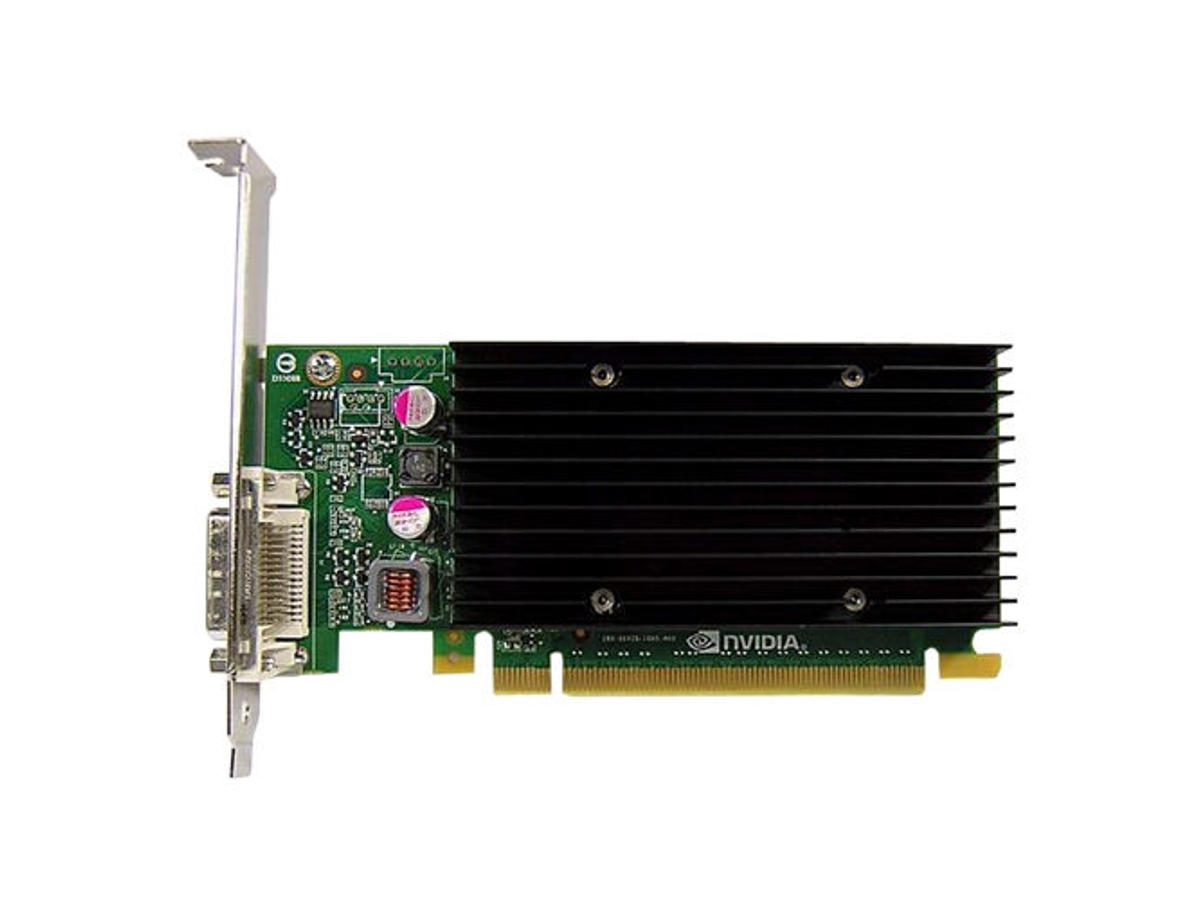

The 512 MB NVIDIA NVS 300 from Dell™ is an entry level professional graphics card targeted at selected Dell Precision Workstation platforms. It has replaced nVidia Quadro NVS 295 (ULGA9). The graphics board (GT218-825 / P1035) is a PCI Express low profile form factor graphics add-in card is a passive low cost graphics solution for the corporate business and enterprise markets. This half-length card can be installed on ATX/BTX system chassis. It will be offered in a minitower version only with a full height bracket. This product has been tested and validated on systems. It is supported by Dell Technical Support when used with a Dell system.
- It can be Installed on ATX/BTX system chassis
- Offered in a minitower version only with a full height bracket
- Support Fast Boot and Fast Resume
- It is a passive low cost graphics solution for the corporate business and enterprise markets. -
Processor Grafikprocessor familie NVIDIA Grafikprocessor NVS 300 Maksimal opløsning 2560 x 1600 pixel CUDA Ja CUDA-kerner 16 Maksimal analog opløsning 2048 x 1536 pixel Maksimal digital opløsning 2560 x 1600 pixel Hukommelse Diskret grafikadapterhukommelse 0,5 GB Hukommelsestype for grafikadapter GDDR3 Hukommelsesbus 64 Bit Hukommelsesbåndbredde (maks.) 12,6 GB/sek. Porte & Grænseflader Grænsefladetype PCI Express 2.0 Antal HDMI-porte 0 Antal DVI-D-porte 0 Antal DVI-I-porte 2 Antal DisplayPorts 2 Antal VGA-porte (D-sub) 2 DMS-59 porte, antal 1 Præstation TV-tuner, integreret Ingen DirectX-version 10.1 Shader model version 4.1 OpenGL-version 3.3 DVI dobbelt link Ingen PhysX Ingen Design Kølingstype Passiv Formfaktor Half-Height/Half-Length (HH/HL) Antal porte 1 Produktfarve Sort, Grøn Systemkrav Understøttede Windows-operativsystemer Windows 7 Professional, Windows 7 Professional x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 Understøttede Linux-operativsystemer Ja Andre understøttede operativsystemer DOS Bæredygtighed Bæredygtighedscertifikater ENERGY STAR
