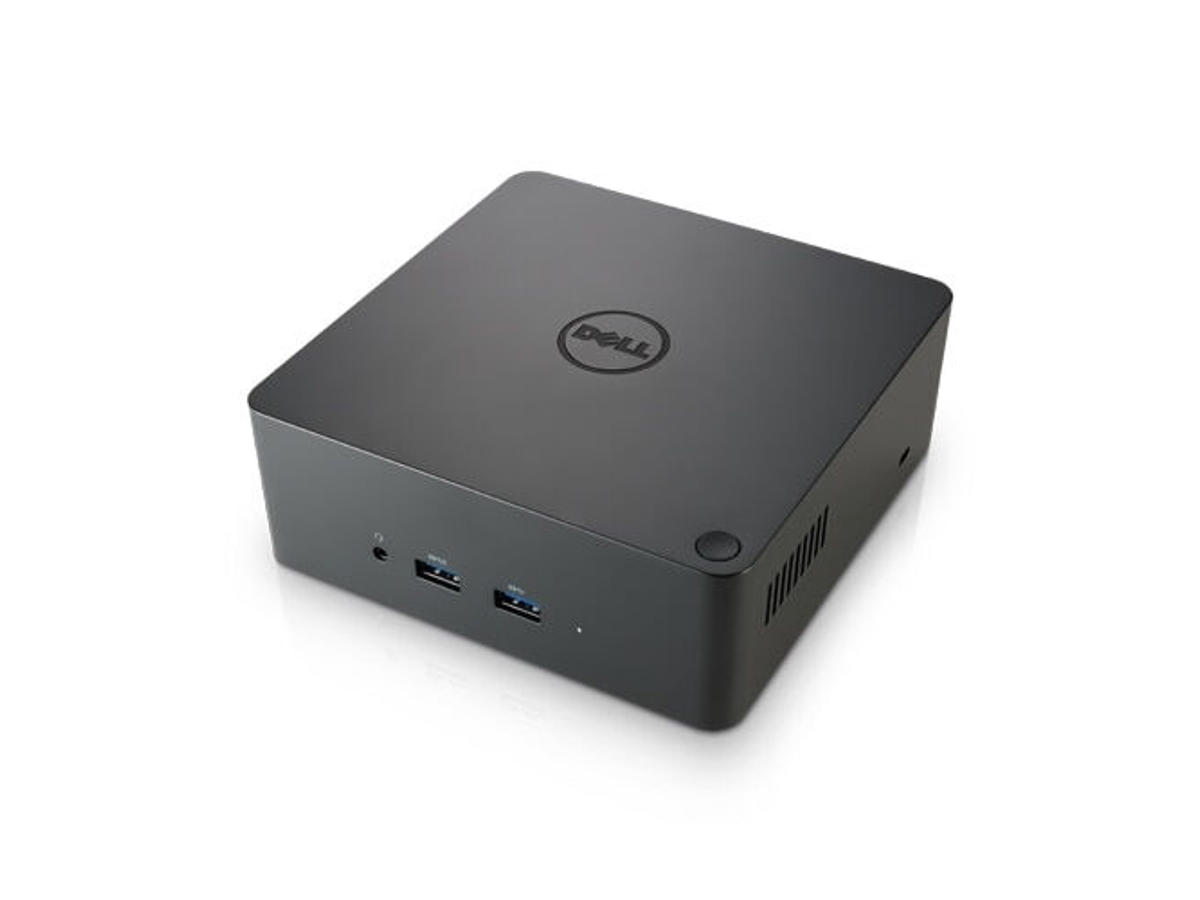

One dock. One cable. Ultimate Performance.
The Dell Thunderbolt™ Dock TB16 -240W with Intel® Thunderbolt 3 technology is the ultimate docking solution, designed for power users and traditional workstation clients, creating the ability to connect up to three FHD displays, two 4K displays, or one 5K display at 60Hz. Data transfers up to 40 Gbps allow lightning-fast transfers of larger files such as video editing files.
Small footprint and big flexibility
The Dell Thunderbolt™ Dock TB16 -240W is small in size—just 5.7 x 5.7 x 2 inches (145 x 145 x 51mm). By connecting one cable to your laptop, you can get access to a wide variety of ports, enhancing productivity.
One source for power
The Dell Thunderbolt™ Dock TB16 -240W can provide power to your laptop (at 19.5V) and can also provide up to 60W of power to attached Thunderbolt™ 3 peripherals. Dell Precision, Latitude or XPS notebooks with a Thunderbolt™ 3 port can receive up to 130W of power.
Connections and Features:
- Supports 3 displays
- Two USB 2.0 ports
- Three USB 3.0 ports
- Thunderbolt 3 (USB-C) port
- Speaker output (rear)
- Combo audio (front)
- Gigabit Ethernet
- Kensington Lock Slot
- 7.4 mm DC-IN Power Input
What's in the Box
Dell Thunderbolt™ Dock TB16
USB Type-C Thunderbolt™ Cable
240W AC Adapter
| Porte & Grænseflader | |
| Forbindelsesteknologi | Ledningsført |
| Værtsgrænseflade | Thunderbolt 3 |
| Antal USB 2.0-porte | 2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 3 |
| Antal HDMI-porte | 1 |
| Udgange til hovedtelefoner | 1 |
| Antal VGA-porte (D-sub) | 1 |
| Antal DisplayPorts | 1 |
| Antal mini DisplayPorts | 1 |
| Antal Thunderbolt 3-porte | 1 |
| Kombineret hovedtelefon/mikrofon-port | Ja |
| Tilslutning af hovedtelefoner | 3,5 mm |
| Linie ud | Ja |
| USB-stik type | USB Type-A |
| DC-in-stik | Ja |
| Netværk | |
| Ethernet LAN | Ja |
| Ethernet LAN-porte (RJ-45) | 1 |
| Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
| Præstation | |
| Produktfarve | Sort |
| Indbygget kortlæser | Ingen |
| Slot til kabellås | Ja |
| Kabellåseslids type | Kensington |
| LED-indikatorer | Ja |
| Mærke kompatibilitet | Dell |
| Strømstyring | |
| Strømkilde type | Vekselstrøm |
| Udgangsspænding | 19.5 V |
| Strømforbrug (maks.) | 240 W |
| Software | |
| Understøttede Windows-operativsystemer | Ja |
| Vægt & størrelser | |
| Bredde | 145 mm |
| Dybde | 145 mm |
| Højde | 51 mm |
| Emballage indhold | |
| AC-adapter inkluderet | Ja |
| Logistik data | |
| Harmoniseret systemkode (HS) | 84733020 |
