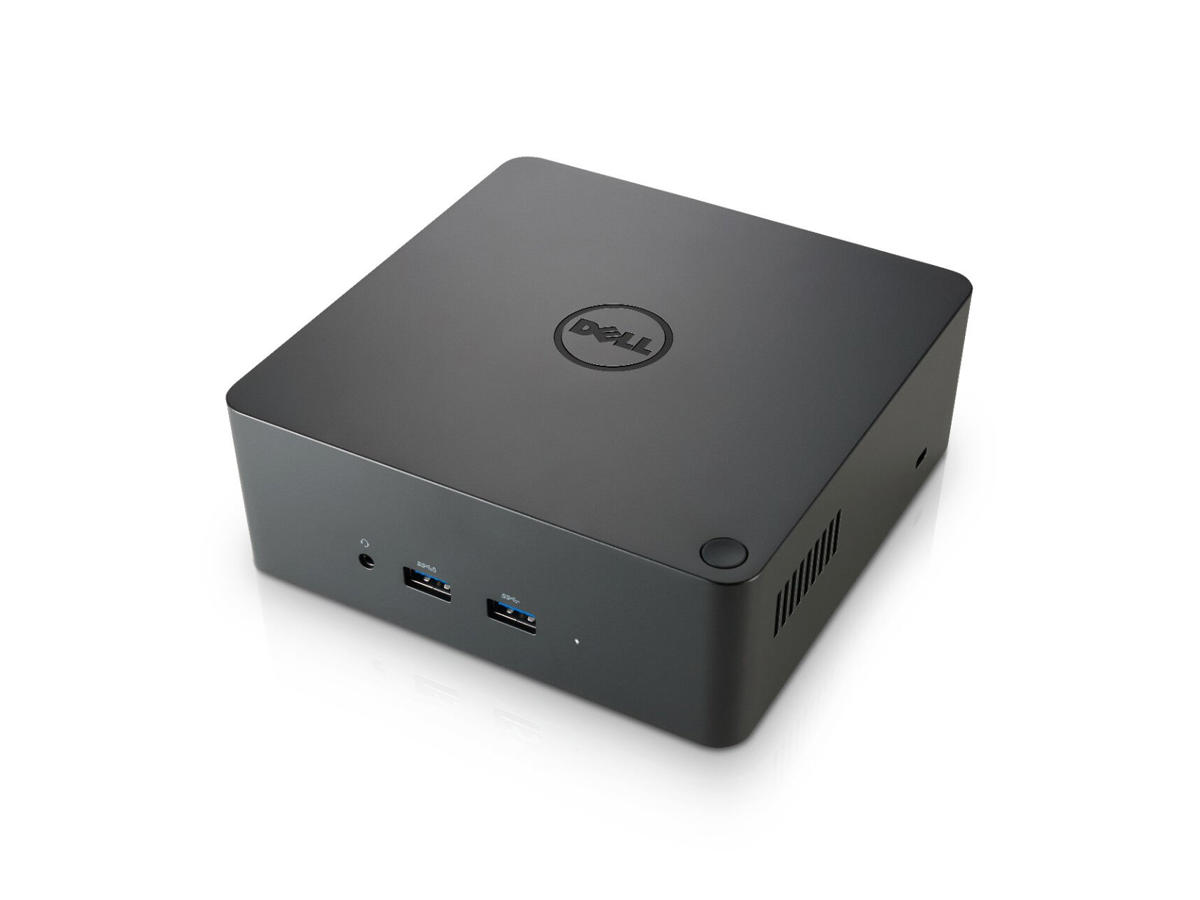

The Dell Thunderbolt™ Dock TB16 -180W allows you to quickly connect your mobile workstation to a single data and power source for ultimate display performance and speedy data transfers. The dock connects to Thunderbolt™ 3 enabled notebooks* with a single USB Type-C Thunderbolt™ Cable, allowing users to quickly connect to multiple displays and peripherals, providing power to the notebook, and freeing up space on your desk and in your workspace. * While Dell has committed to ensuring the TB16 meets open standards, 3rd party OEMs can limit compatibility
The Dell Thunderbolt™ Dock TB16 -180W with Intel® Thunderbolt 3 technology is the ultimate docking solution, designed for power users and traditional workstation clients, creating the ability to connect up to three FHD displays, two 4K displays, or one 5K display at 60Hz. Data transfers up to 40 Gbps allow lightning-fast transfers of larger files such as video editing files.
The Dell Thunderbolt™ Dock TB16 -180W can provide power to your laptop (at 19.5V) and can also provide power to attached Thunderbolt™ 3 peripherals. With the ability to provide up to 60W of power to an external Thunderbolt™ 3 device, this version is best for Dell Latitude and XPS notebooks and 2-in-1s with a Thunderbolt™ 3 port that require up to 65W of power.
- Supports 3 displays
- Two USB 2.0 ports
- Three USB 3.0 ports
- Thunderbolt 3 (USB-C) port
- Speaker output (rear)
- Combo audio (front)
- Gigabit Ethernet
- Kensington Lock Slot
- 7.4 mm DC-IN Power Input
| Porte & Grænseflader | |
| Forbindelsesteknologi | Ledningsført |
| Værtsgrænseflade | Thunderbolt 3 |
| Antal USB 2.0-porte | 2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 3 |
| Antal HDMI-porte | 1 |
| Udgange til hovedtelefoner | 1 |
| Antal VGA-porte (D-sub) | 1 |
| Antal DisplayPorts | 1 |
| Antal mini DisplayPorts | 1 |
| Antal Thunderbolt 3-porte | 1 |
| Kombineret hovedtelefon/mikrofon-port | Ja |
| Tilslutning af hovedtelefoner | 3,5 mm |
| Linie ud | Ja |
| USB-stik type | USB Type-A |
| DC-in-stik | Ja |
| Netværk | |
| Ethernet LAN | Ja |
| Ethernet LAN-porte (RJ-45) | 1 |
| Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
| Præstation | |
| Produktfarve | Sort |
| Indbygget kortlæser | Ingen |
| LED-indikatorer | Ja |
| Mærke kompatibilitet | Dell |
| Kapabilitet | XPS 13 (9350) XPS 12 (9250) XPS 13 (9360) Latitude 5280 Latitude 5480 Latitude 5580 XPS 9365 Latitude 7280 Latitude 7480 |
| Strømstyring | |
| Strømkilde type | Vekselstrøm |
| Vekselstrømsindgangsspænding | 120-230 V |
| Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
| Strømforbrug (maks.) | 180 W |
| Software | |
| Understøttede Windows-operativsystemer | Ja |
| Vægt & størrelser | |
| Bredde | 145 mm |
| Dybde | 145 mm |
| Højde | 51 mm |
| Vægt | 720 g |
| Emballage indhold | |
| Kabler inkluderet | USB Type-C |
| AC-adapter inkluderet | Ja |
| Brugervejledning | Ja |
