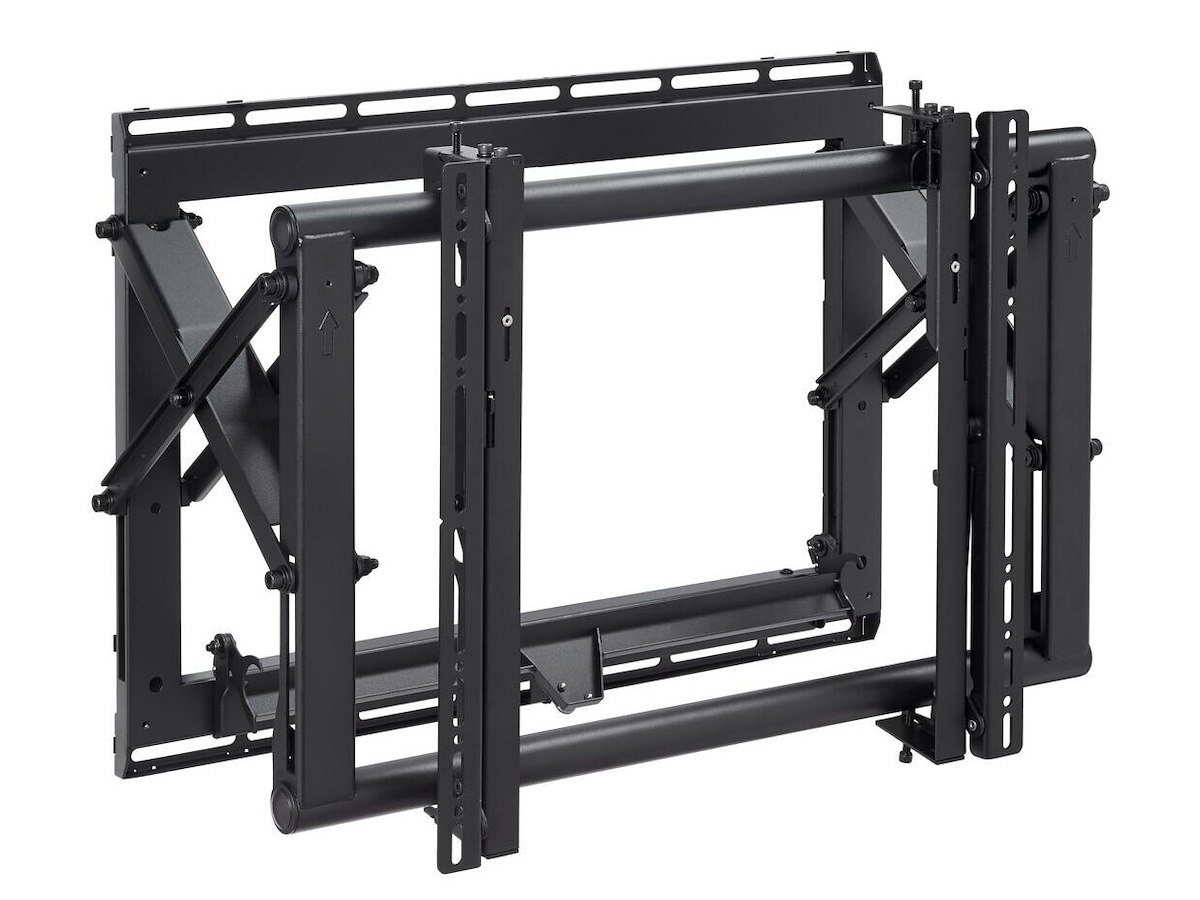

PFW 6870 Video wall pop-out module PFW 6870 is a customizable video wall framing system for displays weighing up to 72 kg / 160 lbs. with a mounting pattern of 200 x 200 to 600 x 400mm. It features multi-monitor stacking, spring-loaded release, open design, custom spacers, top adjustable mounting brackets and straight scissor-style extension.
Optional dedicated spacers dramatically reduce installation time. Spacers are available for the most used video wall displays or monitors.
Montering
Antal understøttede skærme
1
Maksimal skærmstørrelse kompatibilitet
165,1 cm (65")
Monteringstype
Væg
Maksimal vægtkapacitet
72 kg
Montering interface kompatibilitet (min.)
200 x 200 mm
Montering interface kompatibilitet (maks.)
600 x 400 mm
Minimal skærmstørrelse kompatibilitet
94 cm (37")
Panel montering grænseflade
200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,500 x 200,500 x 300,500 x 400,600 x 200,600 x 300,600 x 400
