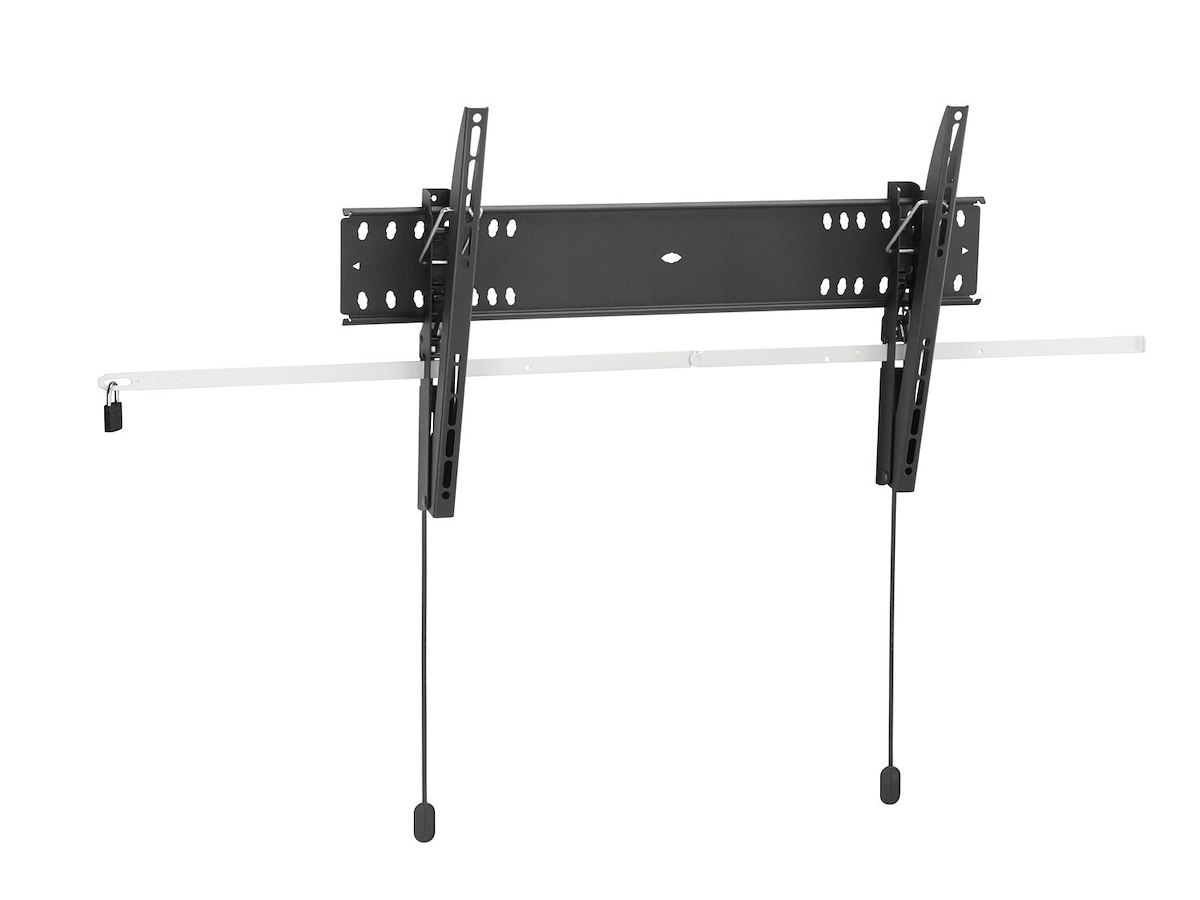

This locking tilting wall mount helps protect large flat panel displays in public areas against theft. The PFW 4000 series is designed for public areas that cannot be continuously supervised. The Vogel's Autolock® mechanism securely locks the display in place, and the slim design creates a clean, elegant look. The PFW 4710 wall mount is suitable for 55 to 65 inch displays weighing up to 75 kg.
For displays mounted high on the wall, tilting the display forward helps create a better viewing angle. The PFW 4710 wall mount, 52 mm deep, can tilt up to 15°, in 0°, 7°, 12° and 15° increments. The PFW 4710 wall mount features a unique wall plate that allows installers to very precisely compensate for drilling tolerances to ensure level mounting. Mounting hardware is included. A solid security bar and padlock provide theft prevention while still allowing easy access to the display for servicing. All Vogel's products are TÜV5 certified for maximum safety.
Montering
Antal understøttede skærme
1
Maksimal skærmstørrelse kompatibilitet
165,1 cm (65")
Monteringstype
Væg
Maksimal vægtkapacitet
75 kg
Montering interface kompatibilitet (min.)
100 x 100 mm
Montering interface kompatibilitet (maks.)
600 x 400 mm
Minimal skærmstørrelse kompatibilitet
139,7 cm (55")
Panel montering grænseflade
100 x 100,100 x 200,200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,500 x 200,500 x 300,500 x 400,600 x 200,600 x 300,600 x 400
