Varenummer: 10ULE-TV-WALL-MOUNT
Mere information
-

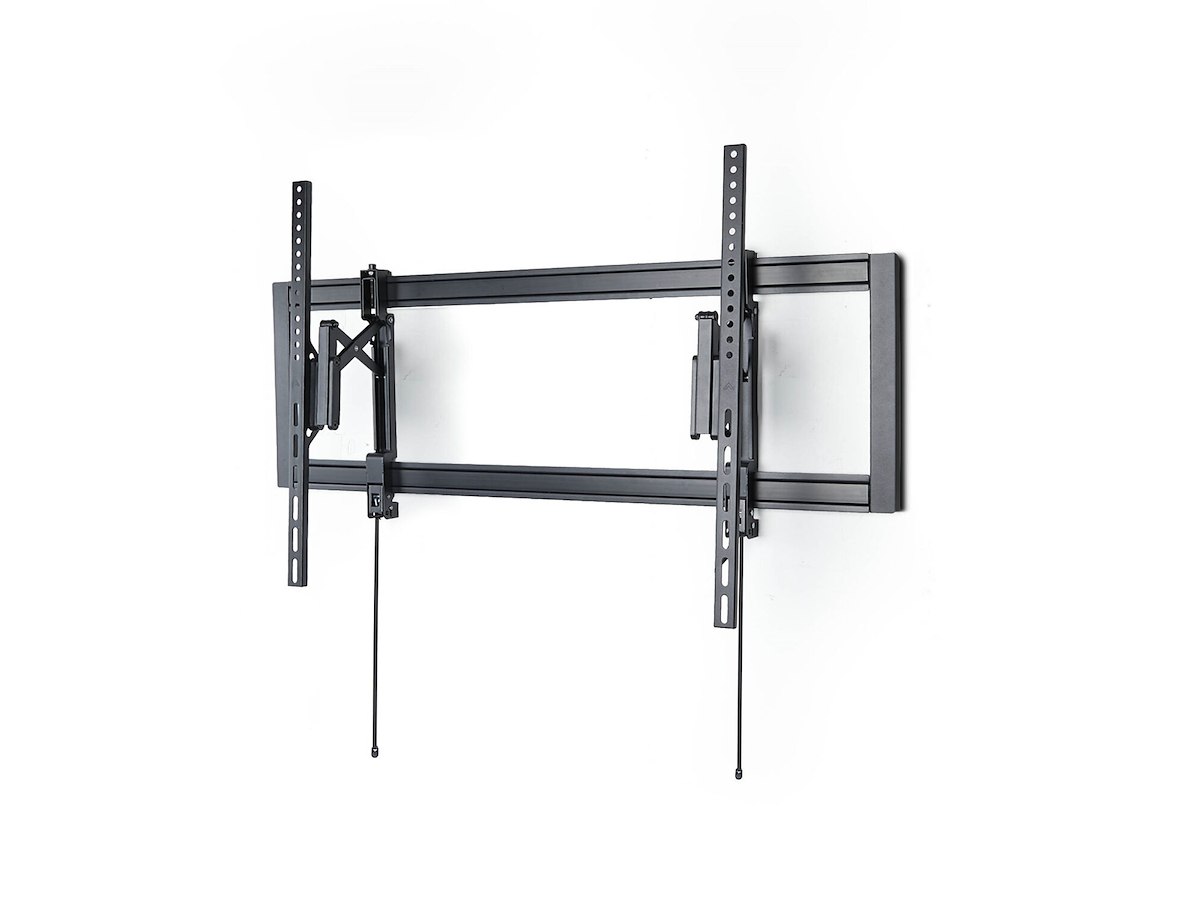

Mount a TV to a wall and retain rear access with this extendable, VESA-compatible mount for displays up to 105in
Mount a TV with extendable reach or a slim close-to-wall profile, plus adjustable viewing angles. UL Listed for added confidence in commercial or public installations.
Securely Mount Large, Heavy Displays
Support TVs up to 105-inch and 176lb (80kg) for meeting rooms, classrooms, and digital signage deployments that need a strong, stable wall bracket.
Mount with Confidence
This TV mount is tested and certified by UL Solutions to UL 2442 and complies with a 4x weight safety factor over its rated load, providing assurance for commercial and public-space installations
Save Space or Extend When Needed
Keep the TV close to the wall at a 2.1in (5.3cm) profile or extend up to 6.8in (17.2cm) to match your setup. Extra extension creates working room for easy rear access during adjustments, maintenance, and cable management.
Center the TV on Any Wall Type
Use the side-to-side sliding design to help center the display on wood stud, concrete, or brick walls. VESA compatibility from 200x200 to 1000x600mm helps standardize installs across a wide range of TVs.
Adjust the Screen for Better Viewing
Fine-tune the viewing angle with tilt from +10° to -15° and swivel from +10° to -10° to improve visibility across the room. -
Montering Antal understøttede skærme 1 Maksimal vægtkapacitet (pr. skærm) 80 kg Maksimal skærmstørrelse kompatibilitet 2,67 m (105") Monteringstype Væg Maksimal vægtkapacitet 80 kg Montering interface kompatibilitet (min.) 200 x 200 mm Montering interface kompatibilitet (maks.) 1000 x 600 mm Minimal skærmstørrelse kompatibilitet 139,7 cm (55") Panel montering grænseflade 200 x 200,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,600 x 400,600 x 600,800 x 400,800 x 600,900 x 600,1000 x 600 Ergonomisk Højdejustering Ja Hældningsindstilling Ja Hældningsvinkelområde -15 - 10° Drejelig Ja Drejevinkel område -10 - 10° Design Produktfarve Sort Husmateriale Stål Tyverisikring Ja Emballage indhold Ankre inkluderet Ja Antal ankre inkluderet 6 Spændeskiver inkluderet Ja Antal spændeskiver inkluderet 10 Antal afstandsstykker inkluderet 8 Skruer inkluderet Ja Antal skruer 26 Brugervejledning Ja Monteringsbeslag inkluderet Ja Antal monteringsbeslag 4 Antal skruenøgler inkluderet 1 Unbrakonøgle inkluderet Ja Antal hexnøgler inkluderet 2 Vægt & størrelser Bredde 53 mm Dybde (maks.) 107 cm Højde 350 mm Vægt 18,4 kg Emballeringsdata Pakkebredde 1118 mm Pakkedybde 133 mm Pakkehøjde 75 mm Pakkevægt 6,8 kg Logistik data Hovedkassens bredde (udvendigt) 1133 mm Hovedkassens længde (udvendigt) 150 mm Hovedkassen højde (udvendigt) 250 mm Produkter pr. hovedkasse (udvendigt) 3 stk
