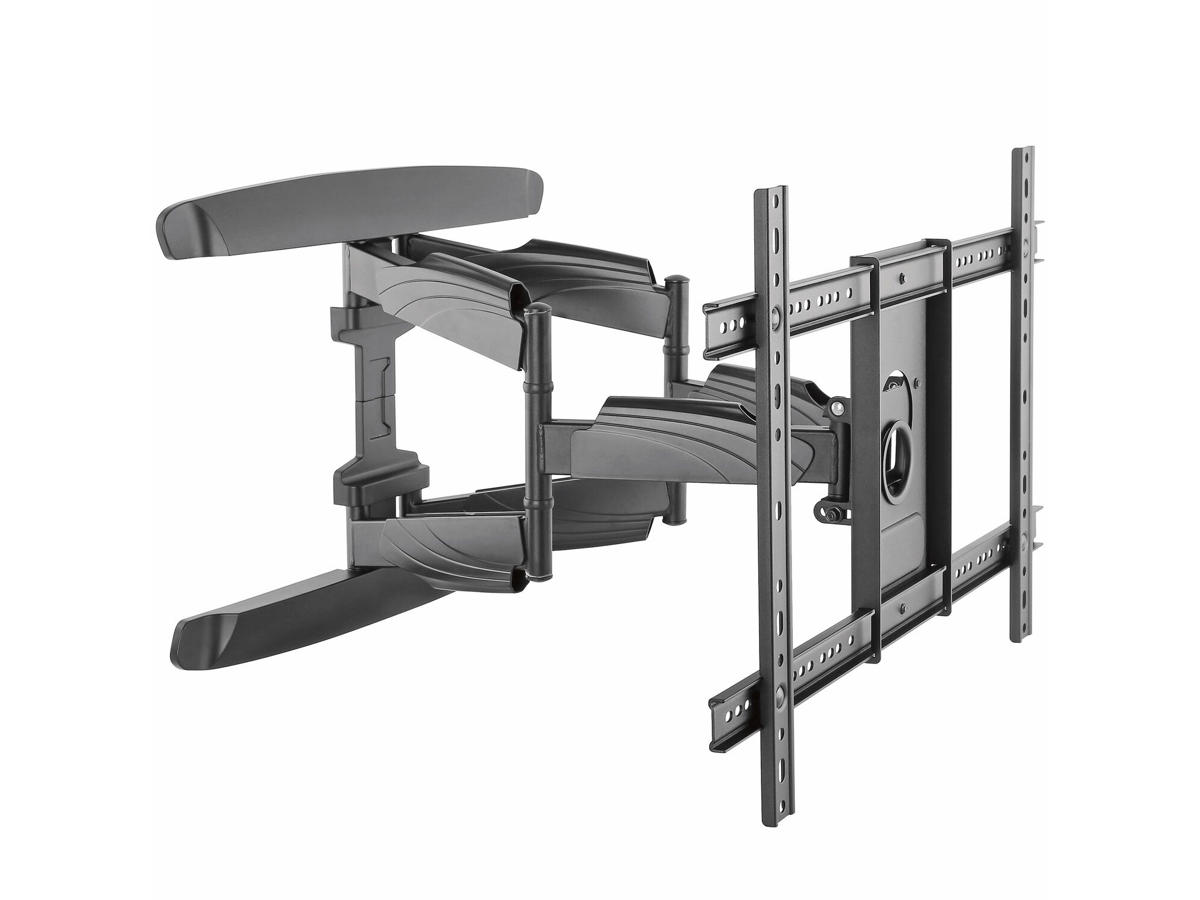

Flat-Screen TV Mount | Steel | For 32" to 70" Displays
Maximize space while creating an impressive display. This full-motion TV wall mount supports flat-screen TVs from 32" to 70" in size, with a weight capacity of 99 lb. (45 kg).
Save Space
Mount your flat-screen TV in a location that's convenient for visitors, clients and employees, and free up valuable space. The wall mount is ideal for a lobby, boardroom or other venue. The TV wall mount also includes built-in cable management to keep cables neatly out of sight.
Full-Motion Adjustment
The TV wall mount features dual arms that extend out to 20.4" (517 mm) from the wall to provide a wide range of movement and accommodate different screen positions and angles. The arms can also fold to tuck in closely to the wall, providing a low profile that enables your display to be positioned just 2.24" (57 mm) from the wall.
You can swivel your display +90 / -90 degrees and tilt +5 / -8 degrees, letting you angle your TV display toward your audience. Plus, the tilt feature lets you adjust the TV so that you can view it comfortably at any height. A built-in level adjustment also offers 5 degree clockwise and counterclockwise turning, to ensure your display is perfectly level.
Secure Installation
The heavy-duty steel construction, dual-arm design and dual-stud mounting for studs placed 16" apart, provides increased durability and security. It safely and securely supports your flat-screen TV, to protect your investment.
FPWARTB2 is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- LARGE 70" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays (incl. curved TVs) up to 70 inch (99 lb/45 kg) w/ a durable full-motion steel frame and a powder-coated finish
- WIDE RANGE OF MOTION: Articulating & adjustable TV wall mount offers +/-90° swivel, +2/-15° tilt & +/-5° LCD screen level adjustment without the use of additional tools to ensure display is level
- EXTENDING ARMS: Arms extend from 2.4" (57mm) to 20.4" (517mm) from the wall; With the length of the arms, center of the television display has an overall lateral range (left to right) of 34.6" (880mm)
| Montering | |
| Antal understøttede skærme | 1 |
| Maksimal skærmstørrelse kompatibilitet | 177,8 cm (70") |
| Monteringstype | Væg |
| Maksimal vægtkapacitet | 45 kg |
| Montering interface kompatibilitet (min.) | 200 x 100 mm |
| Montering interface kompatibilitet (maks.) | 600 x 400 mm |
| Minimal skærmstørrelse kompatibilitet | 81,3 cm (32") |
| Velegnet til computerskærm | Ja |
| Panel montering grænseflade | 200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400 |
| Ergonomisk | |
| Hældningsvinkelområde | -8 - 5° |
| Drejevinkel område | -90 - 90° |
| Pivot vinkel | -90 - 90° |
| Forbedret kabelstyring | Ja |
| Design | |
| Produktfarve | Sort |
| Husmateriale | Plast, Stål |
| Tyverisikring | Ingen |
| Tekniske detaljer | |
| Compliance-certifikater | RoHS |
| Emballage indhold | |
| Adapterbøjle inkluderet | Ja |
| Antal inkluderede adapterbeslag | 4 |
| Nøgle inkluderet | Ja |
| Spændeskiver inkluderet | Ja |
| Antal spændeskiver inkluderet | 14 |
| Afstandsstykke medfølger | Ja |
| Antal afstandsstykker inkluderet | 16 |
| Skruer inkluderet | Ja |
| Antal skruer | 38 |
| Brugervejledning | Ja |
| Monteringssæt | Ja |
| Antal skruenøgler inkluderet | 1 |
| Vægt & størrelser | |
| Bredde | 517 mm |
| Højde | 418 mm |
| Vægt | 6,8 kg |
| Armlængde | 64,3 cm |
| Emballeringsdata | |
| Pakkebredde | 622 mm |
| Pakkedybde | 415 mm |
| Pakkehøjde | 90 mm |
| Pakkevægt | 7,7 kg |
| Logistik data | |
| Hovedkassens bredde (udvendigt) | 646 mm |
| Hovedkassens længde (udvendigt) | 433 mm |
| Hovedkassen højde (udvendigt) | 291 mm |
| Produkter pr. hovedkasse (udvendigt) | 3 stk |
| Harmoniseret systemkode (HS) | 85299097 |
