Varenummer: FHA-TV-WALL-MOUNT
Mere information
-
Mounting Hardware Included | One-touch Adjustments | Digital Signage

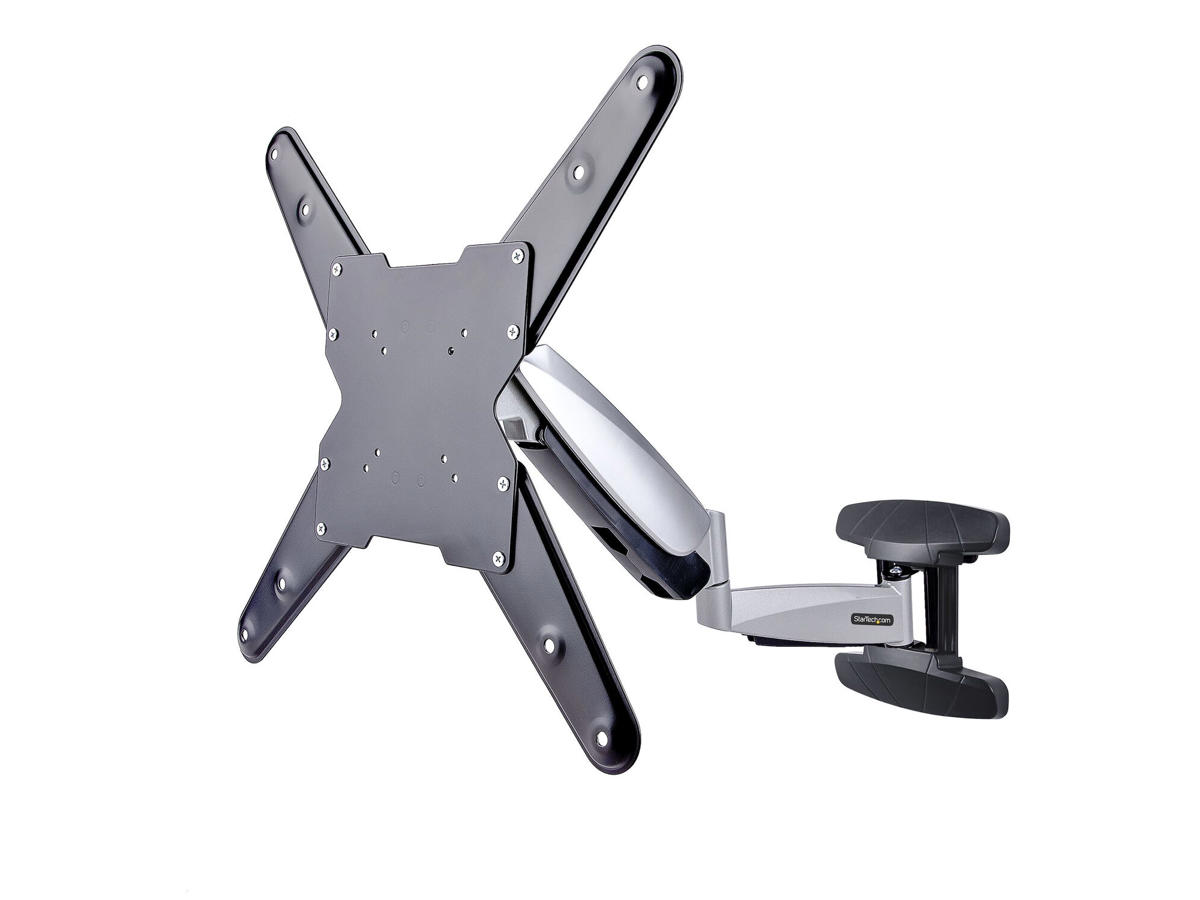

The steel and aluminum construction of this VESA TV Wall Mount supports TVs from 23" to 55" and up to 66lb (30kg). The arm assembly provides smooth one-touch height adjustment thanks to its spring-loaded mechanism that acts as a counterbalance. The VESA plate supports mounting patterns of 75x75 to 400x400.
Versatile TV Mounting
Securely mount a flat or curved-screen TV or digital signage in a convenient location for viewing by visitors, clients, and employees. This TV wall mount is ideal for lobbies, boardrooms, and manufacturing facilities. The lateral range of 3.54 ft (1.08m) is ideal for corner mounting. The jointed arm folds on itself and creates a slim profile from the wall of just 2.2in (5.8cm) for limited space installations. The minimum TV weight is 17.6lb (8kg). M5/M6/M8 Screws of various lengths and an assortment of washers and spacers enhance TV mounting compatibility. Mount into wood-stud or concrete walls, using the included hardware.
Supported VESA mounting patterns: 75x75,100x100, 200x100, 200x200, 300x300, 400x200, and 400x400.
Full-Motion Adjustment
The VESA plate swivels +90 / -90 degrees, tilts +8 / -15 degrees, and rotates +3 / -3 degrees. Customize the viewing experience and comfort with these full-motion capabilities. The one-touch spring-assisted mechanism facilitates effortless height adjustments, with a range of up to 12.6in (32cm).
The arm assembly extends up to 23.4 in (59.5 cm) from the wall to accommodate different viewing positions.
Durable Construction
The robust steel and aluminum design safely and securely supports the TV. The arm assembly features built-in cable management and a wall mount cover for a an organized and visually appealing installation.
The height adjustable TV wall mount is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage -
Montering Antal understøttede skærme 1 Maksimal skærmstørrelse kompatibilitet 139,7 cm (55") Monteringstype Væg Maksimal vægtkapacitet 30 kg Montering interface kompatibilitet (min.) 75 x 75 mm Montering interface kompatibilitet (maks.) 400 x 400 mm Minimal skærmstørrelse kompatibilitet 58,4 cm (23") Panel montering grænseflade 75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400 Ergonomisk Højdejustering Ja Hældningsvinkelområde -15 - 8° Drejelig vinkel 180° Rotation Ja Rotationsvinkel 3° Forbedret kabelstyring Ja Afstand til væggen (maks.) 59,5 cm Afstand til væggen (min.) 5,8 cm Design Produktfarve Sort, Sølv Husmateriale Aluminium, Stål Tyverisikring Ingen Tekniske detaljer Oprindelsesland Kina VESA-beslag inkluderet Ja Emballage indhold Nøgle inkluderet Ja Nøgletype Sekskantnøgle Antal spændeskiver inkluderet 13 Antal afstandsstykker inkluderet 16 Skruer inkluderet Ja Antal skruer 33 Brugervejledning Ja Monteringsplade inkluderet Ja Vægt & størrelser Bredde 450 mm Dybde 595 mm Højde 450 mm Vægt 6 kg Emballeringsdata Pakkebredde 585 mm Pakkedybde 440 mm Pakkehøjde 95 mm Pakkevægt 6,1 kg Logistik data Hovedkassens bredde (udvendigt) 605 mm Hovedkassens længde (udvendigt) 460 mm Hovedkassen højde (udvendigt) 305 mm Produkter pr. hovedkasse (udvendigt) 1 stk
