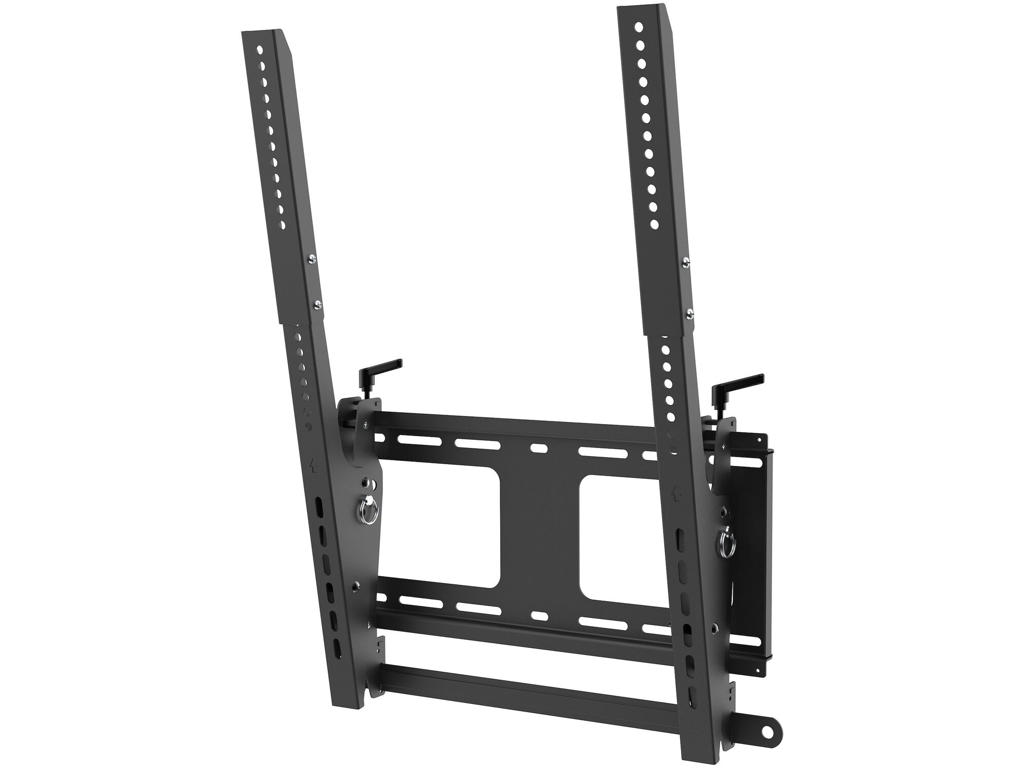

Portrait TV Wall Mount | Steel | For 40" to 55" TVs
This Universal Portrait TV Wall Mount is ideal for customer-facing applications like menu boards or digital signage in hotels requiring the flexibility of portrait / landscape setup. Thanks to its durable steel frame, it can support VESA compatible displays from 40" to 55" and up to 110lb / 50kg in weight. It provides a sleek and professional look thanks to its low profile (3in / 78mm from the wall at the straight angle), and its powder coated finish.
Tilt and height adjustments
This vertical TV wall mount enables you to adjust the tilting angle by hand (0/+5/+10) using the tilt pin to adjust to the ideal viewing angle. Using the built-in ratchet/lever screw handle this wall mount lets you make micro-height adjustments by hand (range of 10mm) to precisely align your TV when used as part of a multi-display setup (video wall).
Easy Installation and Security
The hook-and-mount design of the vertical TV wall mount allow for an easy and fast installation by hanging the TV to the wall mount and securing it using the locking screws. The included long screwdriver has been specially design to make the installation easier.
The portrait TV wall mount provides an extra level of security with the included locking bar, this enables you to lock your TV using a padlock (not included), specially for public setups where you need to leave your equipment unattended.
FPWTLTPORT is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage -
Montering Antal understøttede skærme 1 Maksimal skærmstørrelse kompatibilitet 139,7 cm (55") Monteringstype Væg Maksimal vægtkapacitet 50 kg Montering interface kompatibilitet (min.) 200 x 200 mm Montering interface kompatibilitet (maks.) 400 x 600 mm Minimal skærmstørrelse kompatibilitet 101,6 cm (40") Panel montering grænseflade 200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 400,400 x 500,400 x 600 Ergonomisk Hældningsindstilling Ja Hældningsvinkelområde -10 - 0° Forbedret kabelstyring Ingen Afstand til væggen (min.) 7,62 cm Design Produktfarve Sort Husmateriale Stål Tyverisikring Ja Tekniske detaljer Compliance-certifikater CE, RoHS Emballage indhold Safety bar Ja Ankre inkluderet Ja Antal ankre inkluderet 6 Spændeskiver inkluderet Ja Antal spændeskiver inkluderet 12 Afstandsstykke medfølger Ja Antal afstandsstykker inkluderet 16 Skruer inkluderet Ja Antal skruer 35 Monteringsbeslag inkluderet Ja Antal monteringsbeslag 2 Antal skruenøgler inkluderet 1 Unbrakonøgle inkluderet Ja Vægt & størrelser Bredde 500 mm Dybde (maks.) 68 cm Højde 83 mm Vægt 4,3 kg Emballeringsdata Pakkebredde 555 mm Pakkedybde 240 mm Pakkehøjde 83 mm Pakkevægt 4,5 kg Logistik data Hovedkassens bredde (udvendigt) 570 mm Hovedkassens længde (udvendigt) 260 mm Hovedkassen højde (udvendigt) 270 mm Produkter pr. hovedkasse (udvendigt) 3 stk Harmoniseret systemkode (HS) 85299097
