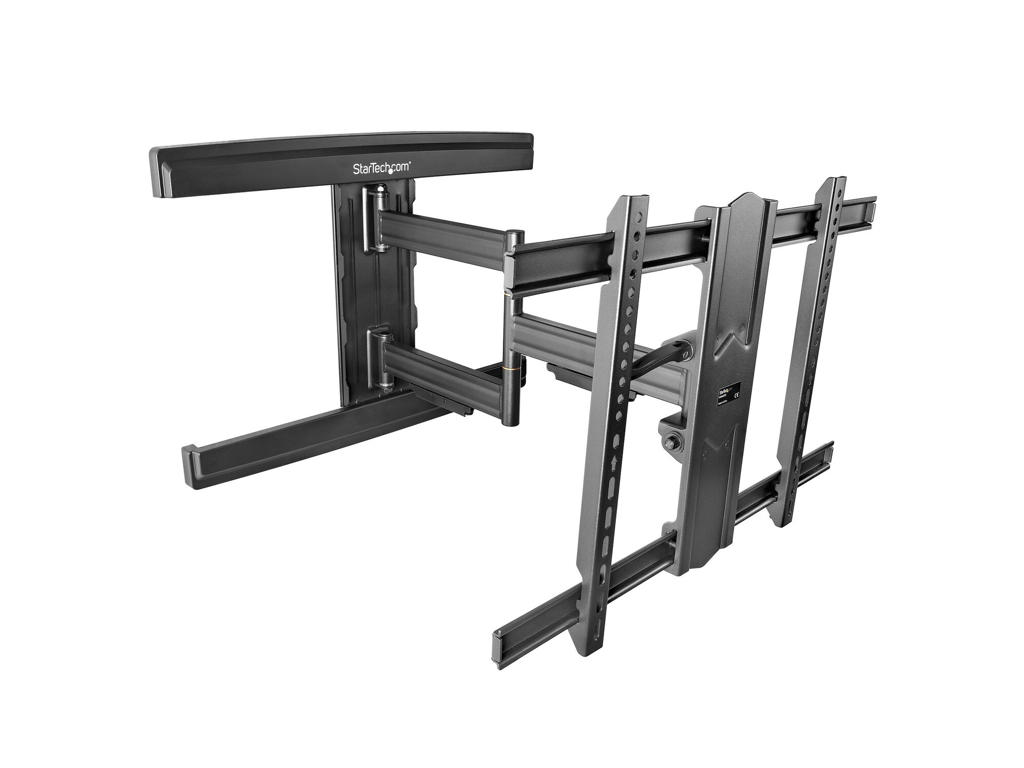

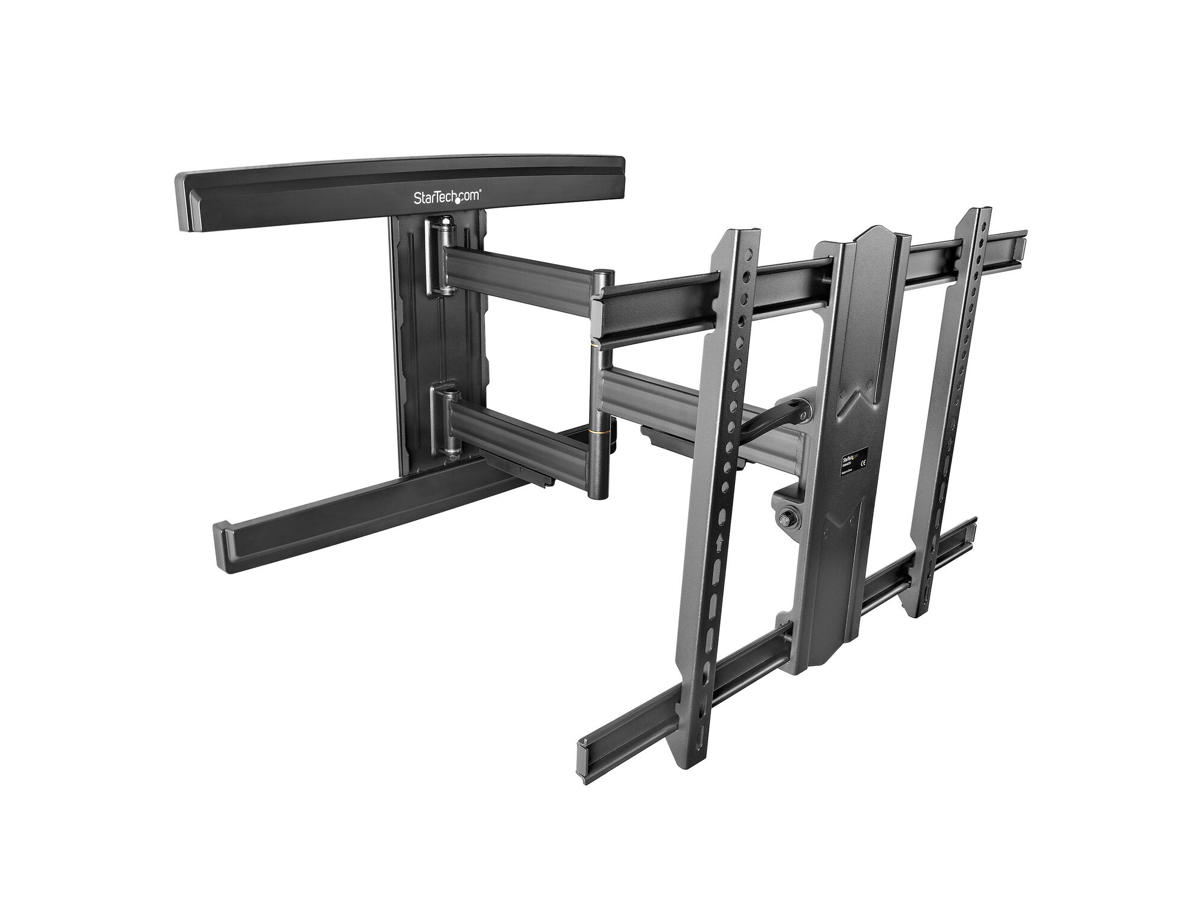

Display Wall Mount | Steel | For up to 80" Displays
With its contemporary design, featuring a long extension arm with a large swivel range, this full motion TV wall mount for large-screen displays is the perfect choice for versatile viewing. You can extend the swiveling arm out to adjust your screen position, making it easy to view your display from numerous angles within the room.
Save Space
This adjustable wall mount TV bracket is ideal for a meeting space, lobby, boardroom, classroom or other venues. The monitor mount provides an impressive and secure way to display a flat-panel TV or mount a digital signage display, while freeing up valuable space.
Robust Steel Construction
Engineered from high-grade steel, the flat-screen TV wall mount securely supports VESA mount displays, including curved TVs, 37" to 80" with a weight capacity of 110 lb. (50 kg).
Full-Motion Adjustment
With a smooth and effortless motion, you can extend the articulating arm out from the wall up to 25.5" (65 cm) to adjust the position of your display. Swivel the arm with ease, up to 90 degrees to the left or right, to position your TV for comfortable viewing.
You can also retract the arm back, to nest against the wall. With its low-profile design, the articulating TV wall mount enables your display to sit just 2.8" (70 mm) from the wall.
Find the Right Viewing Angle
Swivel your screen +/- 90 degrees and tilt your screen -2 to +15 degrees for ideal viewing and to reduce glare.
The tilting TV wall mount also has a screen level adjustment, so you can adjust your display up to 3 degrees clockwise or counterclockwise after you've installed it, to ensure your display is level.
Easy to Install
The universal swivel TV wall mount is easy to install. The television mounting brackets for flat screen displays feature a post-installation lateral shift, to help adjust and center the mount on the wall, even with off-center studs. Cable management keeps cables neatly organized.
FPWARTS1 is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- LARGE 80" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays incl. curved TVs up to 80 inch (110 lb/50 kg) w/ a durable full-motion steel frame and a powder-coated finish
- WIDE RANGE OF MOTION: Articulating TV wall mount offers +/-90° swivel, +2/-15° tilt & +/-3° LCD screen level adjustment & arms allow low-profile at 2.8" (70 mm) from wall or extend to 25.5" (650 mm)
- LATERAL ADJUSTMENT: Full motion TV wall mount w/ post-install lateral shifting lets you center the display on a wall or corner, w/ 16"/24" off-centered studs w/ range of 45.8"/1.1m from left to right -
Montering Antal understøttede skærme 1 Maksimal skærmstørrelse kompatibilitet 2,03 m (80") Monteringstype Væg Maksimal vægtkapacitet 50 kg Montering interface kompatibilitet (min.) 200 x 100 mm Montering interface kompatibilitet (maks.) 600 x 400 mm Minimal skærmstørrelse kompatibilitet 94 cm (37") Panel montering grænseflade 200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400 Ergonomisk Hældningsvinkelområde -15 - 2° Drejevinkel område -90 - 90° Pivot vinkel -90 - 90° Forbedret kabelstyring Ja Afstand til væggen (maks.) 65 cm Afstand til væggen (min.) 7 cm Design Produktfarve Sort Husmateriale Stål Certificering CE, REACH Tekniske detaljer Compliance-certifikater RoHS Emballage indhold Dekorativ afdækning inkluderet Ja Antal dekorative afdækninger inkluderet 2 stk Ankre inkluderet Ja Antal ankre inkluderet 6 Spændeskiver inkluderet Ja Nøgletype Sekskantnøgle Antal spændeskiver inkluderet 14 Afstandsstykke medfølger Ja Antal afstandsstykker inkluderet 16 Skruer inkluderet Ja Antal skruer 30 Brugervejledning Ja Vægt & størrelser Bredde 465 mm Dybde (maks.) 65 cm Højde 935 mm Vægt 13 kg Emballeringsdata Pakkebredde 546 mm Pakkedybde 740 mm Pakkehøjde 95 mm Pakkevægt 14,2 kg Logistik data Hovedkassens bredde (udvendigt) 560 mm Hovedkassens længde (udvendigt) 745 mm Hovedkassen højde (udvendigt) 210 mm Produkter pr. hovedkasse (udvendigt) 2 stk Harmoniseret systemkode (HS) 85299097 Andre funktioner Skruetype M5, M6, M8
