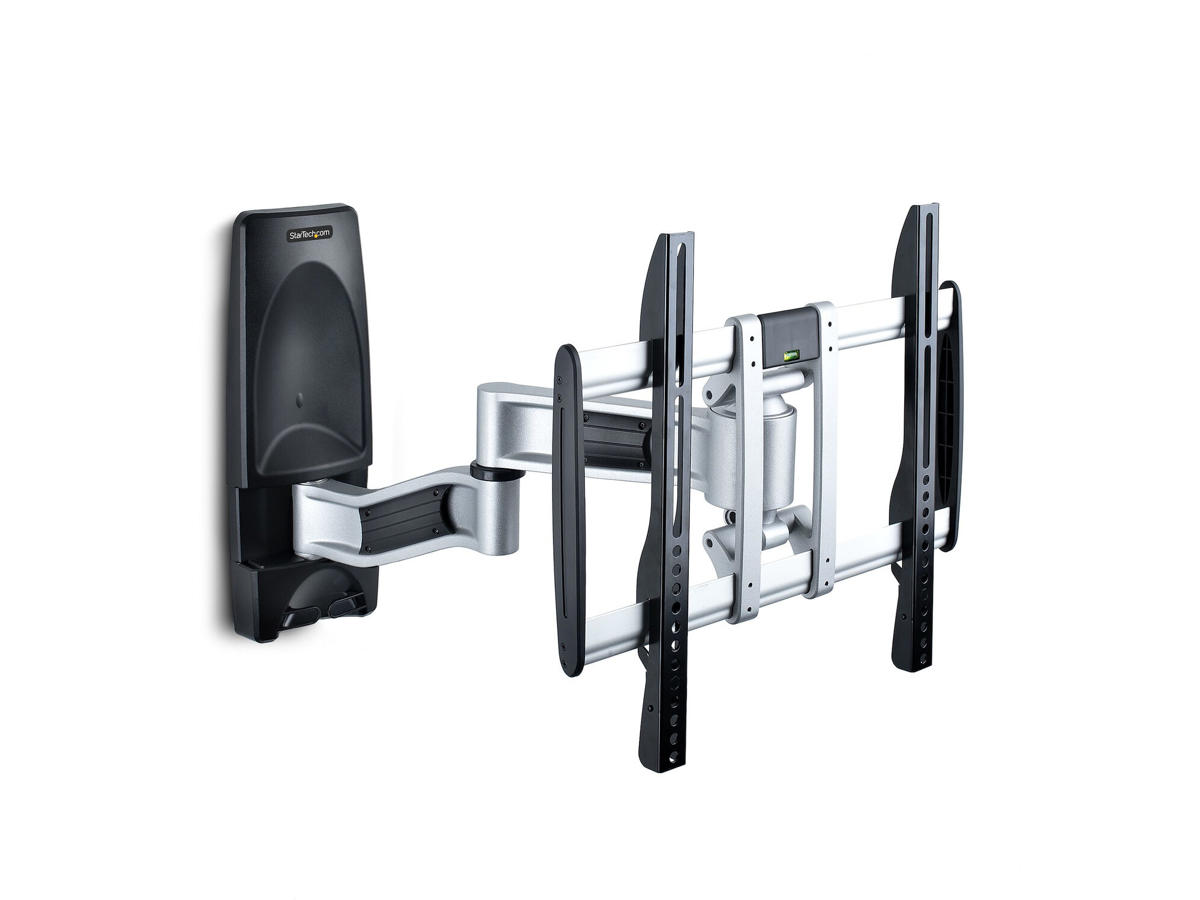

Mount a flat or curved 400x400 VESA display to a wall in both residential and commercial environmentsThis VESA TV Wall Mount supports TV displays from 26" to 65" and up to 99.2 lb (45kg). Robust steel and aluminum frame for a long-lasting TV installation. The arm assembly provides smooth motion and retracts towards the wall for low-profile configurations. In addition, the articulating TV wall mount features an array of adjustments for an ideal viewing angle and supports VESA patterns from 200x200 to 400 x400.Versatile TV MountingSecurely mount a flat or compatible curved-screen TV or digital signage for visitors, clients, and employees to view. This TV wall mount is ideal for lobbies, boardrooms, and manufacturing facilities.The lateral range of 3.1ft (95.6cm) is ideal for corner mounting, and the jointed arm folds on itself, creating a slim profile from the wall of just 4.1in (10.5cm) for limited-space installations.Mount the articulating TV wall mount to a single wood stud or a concrete wall using the included keyhole-style mounting plate for quick and hassle-free installation. In addition, M4/5/6/8 screws of various lengths, matching washers, and spacers enhance the TV mounting compatibility.Supported VESA mounting patterns: 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, and 400x400.Smooth Motion and Tidy InstallationCustomize the viewing experience and comfort with these adjustment capabilities. The TV mount can rotate +90/-90 degrees at the wall mount assembly plate, as well as at both pivot points, while the VESA vertical bracket can be tilted +15/-15 degrees.The arm assembly extends up to 22.1in (56.2cm) from the wall to accommodate different viewing positions, including corner mounting. Built-in cable management and a wall mount cover for an organized and visually appealing installation.This TAA corner TV mount is backed for five years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
Montering | |
Maksimal vægtkapacitet | 45 kg |
Maksimal skærmstørrelse kompatibilitet | 165,1 cm (65") |
Monteringstype | Væg |
Montering interface kompatibilitet (min.) | 200 x 100 mm |
Montering interface kompatibilitet (maks.) | 400 x 400 mm |
Minimal skærmstørrelse kompatibilitet | 66 cm (26") |
Panel montering grænseflade | 200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300 |
Ergonomisk | |
Højdejustering | Ingen |
Hældningsindstilling | Ja |
Hældningsvinkelområde | -15 - 15° |
Drejelig | Ja |
Drejelig vinkel | 180° |
Rotation | Ja |
Rotationsvinkel | 90° |
Afstand til væggen (maks.) | 56,2 cm |
Afstand til væggen (min.) | 10,5 cm |
Design | |
Produktfarve | Sort, Sølv |
Emballage indhold | |
Ankre inkluderet | Ja |
Antal ankre inkluderet | 8 |
Nøgle inkluderet | Ja |
Nøgletype | Sekskantnøgle |
Antal spændeskiver inkluderet | 4 |
Skruer inkluderet | Ja |
Antal skruer | 38 |
Brugervejledning | Ja |
Vægt & størrelser | |
Bredde | 500 mm |
Dybde (maks.) | 45 cm |
Højde | 105 mm |
Vægt | 7,8 kg |
Emballeringsdata | |
Pakkebredde | 624 mm |
Pakkedybde | 460 mm |
Pakkehøjde | 124 mm |
Pakkevægt | 9,2 kg |
Logistik data | |
Hovedkassens bredde (udvendigt) | 624 mm |
Hovedkassens længde (udvendigt) | 460 mm |
Hovedkassen højde (udvendigt) | 124 mm |
Produkter pr. hovedkasse (udvendigt) | 1 stk |
