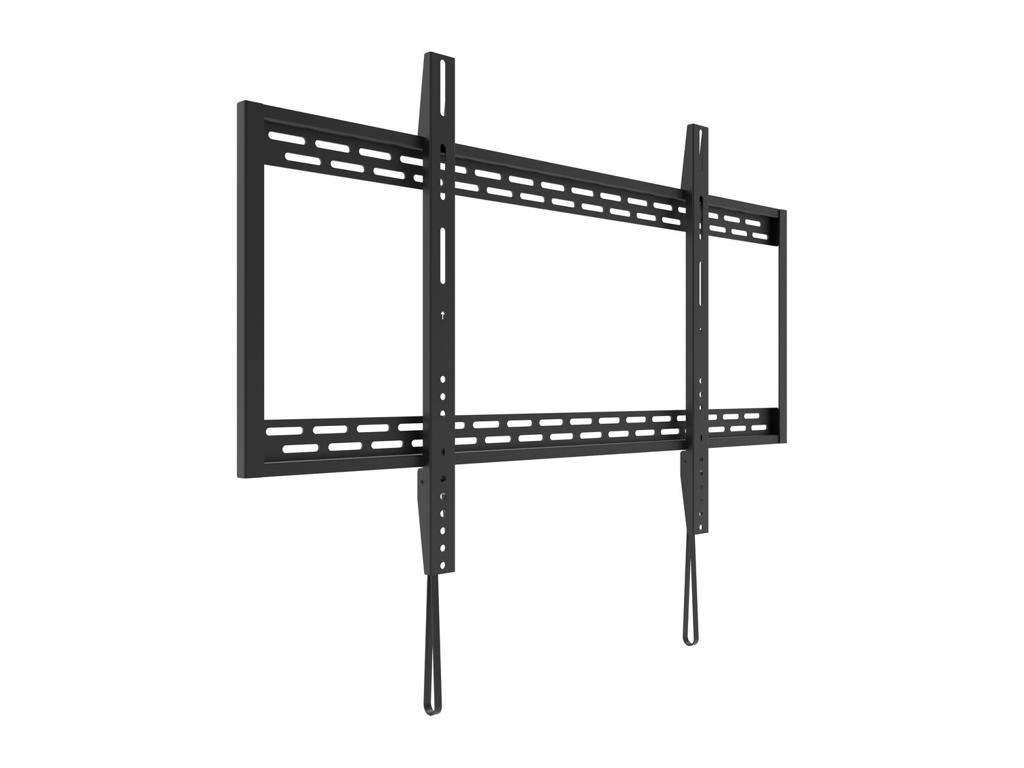

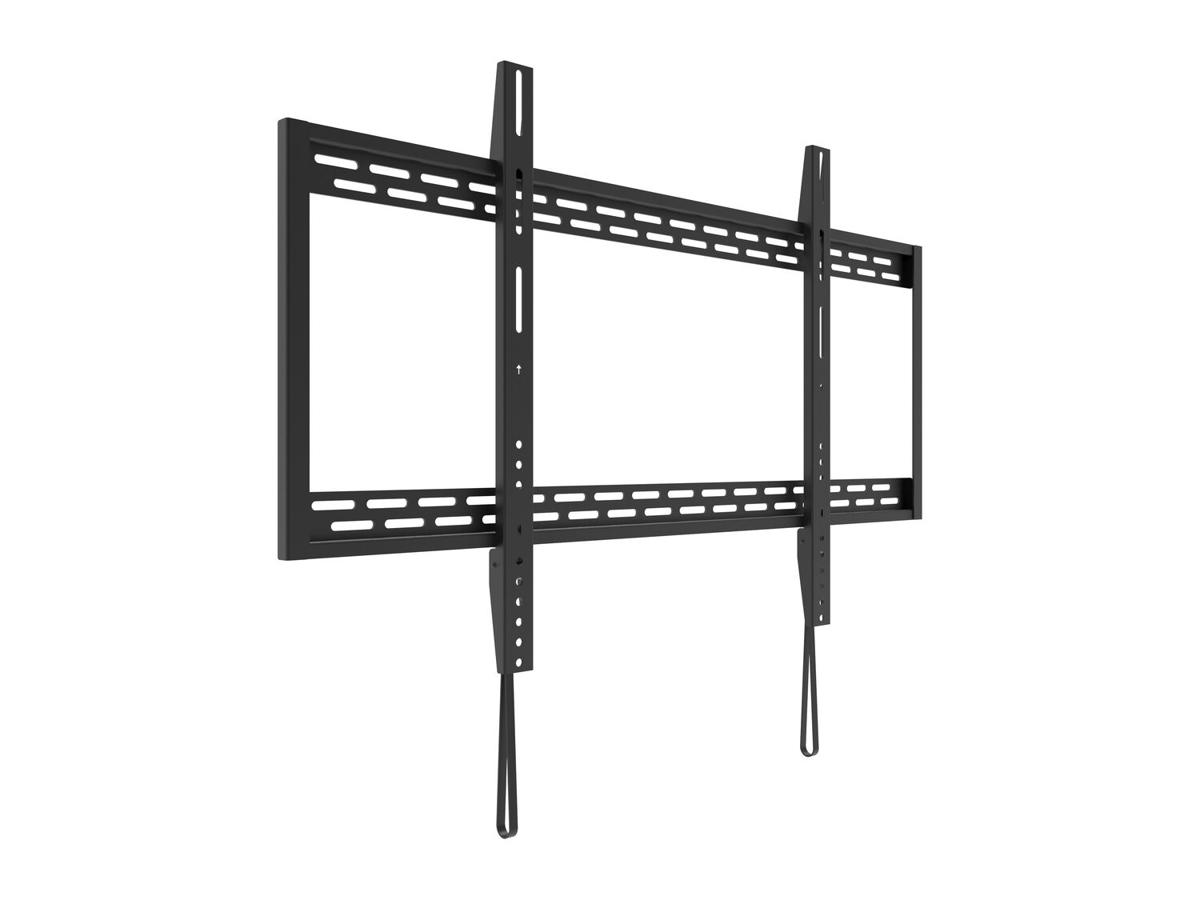

The M Universal Wallmount Fixed and Tilt series has been developed to satisfy the growing demand for extra large screen installations into the commercial and public sectors.
Capable of supporting weights of 100kg, the new super-size wall mount is designed to support larger screens, such as heavy touch screens and extra large displays in public places. The universal interface fits screens with VESA mounting patterns up to 900x600 mm and has adjustment screws that enable the screen to be leveled once mounted.
The Multibrackets M Universal Fixed HD is a versatile wall mount for large display installations. With its smart design the mount can be used for both landscape and portrait installations. With a maxweight capacity of 100kg it can handle screens up to 100". With a wide VESA range of 900x600 it can also handle most VESA specifications large screens are using.
The Multibrackets M Universal Mount HD series of fixed, tilt and pull-out mounts from Multibrackets are engineered to solve tough installation problems such as leveling and stud location. Installerinspired features make installation and maintenance safe and easy. This series of mounts makes it easy to take control of your installation. Universal and with low-profile mounts they are engineeredfor speed of installation and usability. With a variety of products ranging from a single TV to a video wall matrix for digital signage, Multibrackets HD mounts are the perfect solution for many applications.
| Montering | |
| Antal understøttede skærme | 1 |
| Maksimal skærmstørrelse kompatibilitet | 2,54 m (100") |
| Monteringstype | Væg |
| Maksimal vægtkapacitet | 100 kg |
| Montering interface kompatibilitet (min.) | 200 x 200 mm |
| Montering interface kompatibilitet (maks.) | 900 x 600 mm |
| Minimal skærmstørrelse kompatibilitet | 152,4 cm (60") |
| Panel montering grænseflade | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,800 x 400,800 x 600,900 x 600 |
| Ergonomisk | |
| Afstand til væggen (maks.) | 3,2 cm |
| Design | |
| Produktfarve | Sort |
| Husmateriale | Stål |
| Tyverisikring | Ja |
| Kan låses med hængelås | Ja |
| Tekniske detaljer | |
| 3 | 4,28 kg |
| Vægt af plastemballage | 25 g |
| Paper/cardboard packaging weight | 1,5 kg |
| Emballage indhold | |
| Brugervejledning | Ja |
| Monteringssæt | Ja |
| Vægt & størrelser | |
| Bredde | 1009 mm |
| Dybde (maks.) | 3,2 cm |
| Højde | 630 mm |
| Vægt | 5,9 kg |
| Emballeringsdata | |
| Pakkebredde | 415 mm |
| Pakkedybde | 1115 mm |
| Pakkehøjde | 40 mm |
| Pakkevægt | 5,8 kg |
