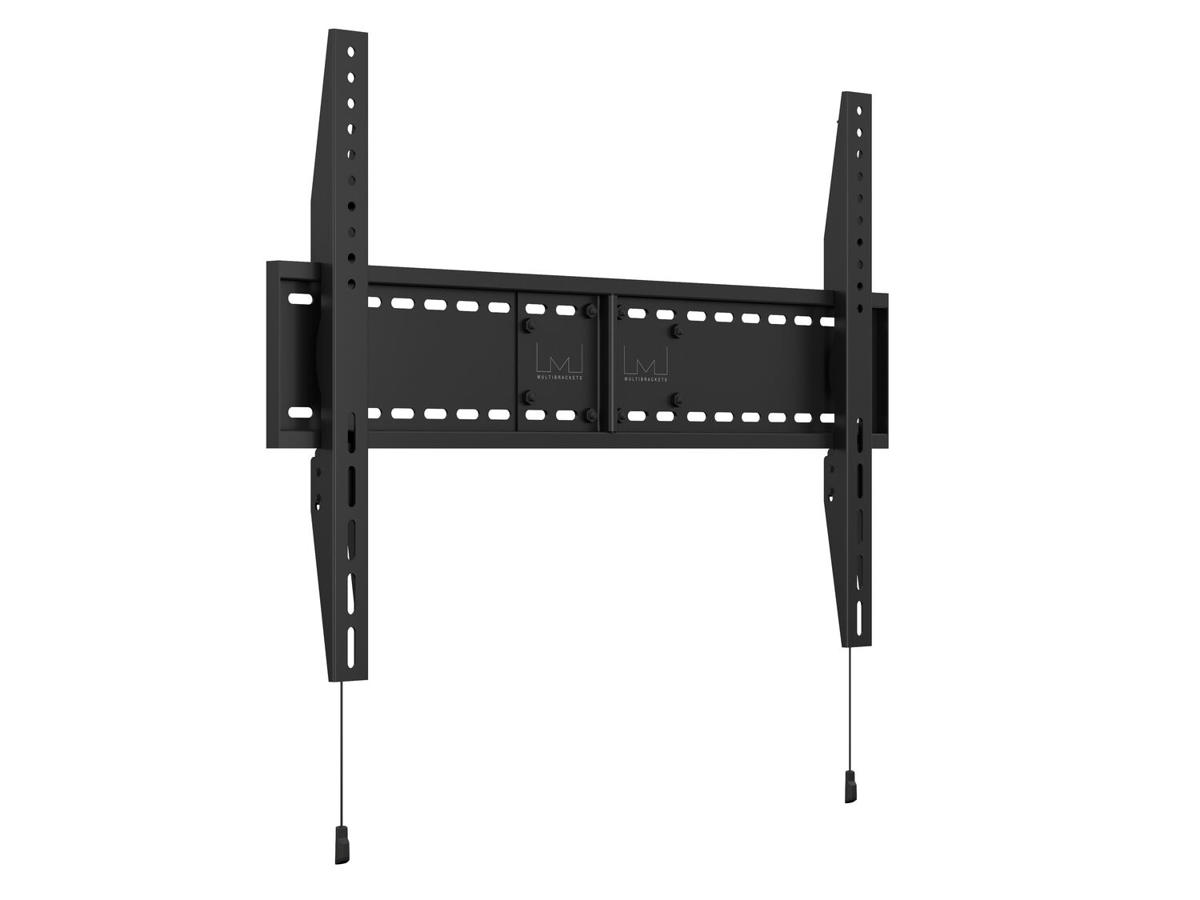

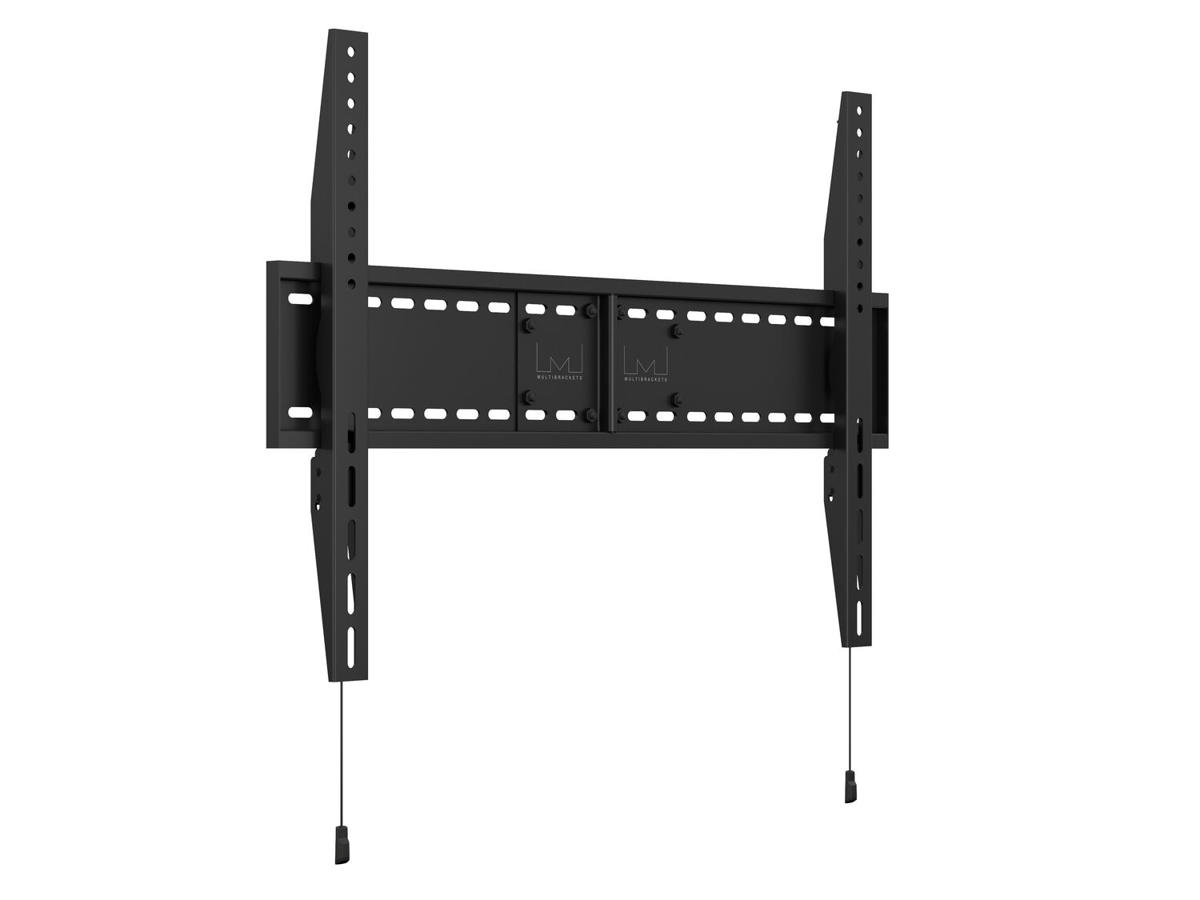

The Multibrackets M Universal Fixed SD is a versatile wall mount for large display installations. With its smart design the mount can be used for both landscape and portrait installations. With a maxweight capacity of 125kg it can handle screens up to 110". With a wide VESA range of 800x600 it can also handle most VESA specifications large screens are using.
The Multibrackets M Universal Mount SD series of fixed, tilt and pull-out mounts from Multibrackets are engineered to solve tough installation problems such as leveling and stud location. Installerinspired features make installation and maintenance safe and easy. This series of mounts makes it easy to take control of your installation. Universal and with low-profile mounts they are engineeredfor speed of installation and usability. With a variety of products ranging from a single TV to a video wall matrix for digital signage, Multibrackets SD mounts are the perfect solution for manyapplications.
| Montering | |
| Antal understøttede skærme | 1 |
| Maksimal skærmstørrelse kompatibilitet | 2,79 m (110") |
| Monteringstype | Væg |
| Maksimal vægtkapacitet | 125 kg |
| Montering interface kompatibilitet (min.) | 200 x 300 mm |
| Montering interface kompatibilitet (maks.) | 800 x 600 mm |
| Minimal skærmstørrelse kompatibilitet | 152,4 cm (60") |
| Panel montering grænseflade | 200 x 300,200 x 400,200 x 600,400 x 400,400 x 600,600 x 200,600 x 400,600 x 600,600 x 300,800 x 300,800 x 400,800 x 500,800 x 600 |
| Ergonomisk | |
| Afstand til væggen (min.) | 3,9 cm |
| Design | |
| Produktfarve | Sort |
| Husmateriale | Stål |
| Tyverisikring | Ja |
| Kan låses med hængelås | Ja |
| Tekniske detaljer | |
| Orientering | Landskab/portræt |
| 3 | 4,5 kg |
| Vægt af plastemballage | 45 g |
| Paper/cardboard packaging weight | 3,2 kg |
| Vægt & størrelser | |
| Dybde (min.) | 3,9 cm |
| Højde | 630 mm |
| Vægt | 8,5 kg |
| Emballeringsdata | |
| Pakkebredde | 200 mm |
| Pakkedybde | 670 mm |
| Pakkehøjde | 100 mm |
| Pakkevægt | 7,74 kg |
| Pakketype | Kasse |
| Logistik data | |
| Forsendelseskasses kassens bredde (indvendig) | 50 cm |
| Forsendelseskassens længde (indvendig) | 68 cm |
| Forsendelseskassens højde (indvendig) | 23 cm |
| Forsendelseskassens bruttovægt (indvendig) | 39,4 kg |
| Produkter pr. forsendelseskasse (indvendig) | 5 stk |
