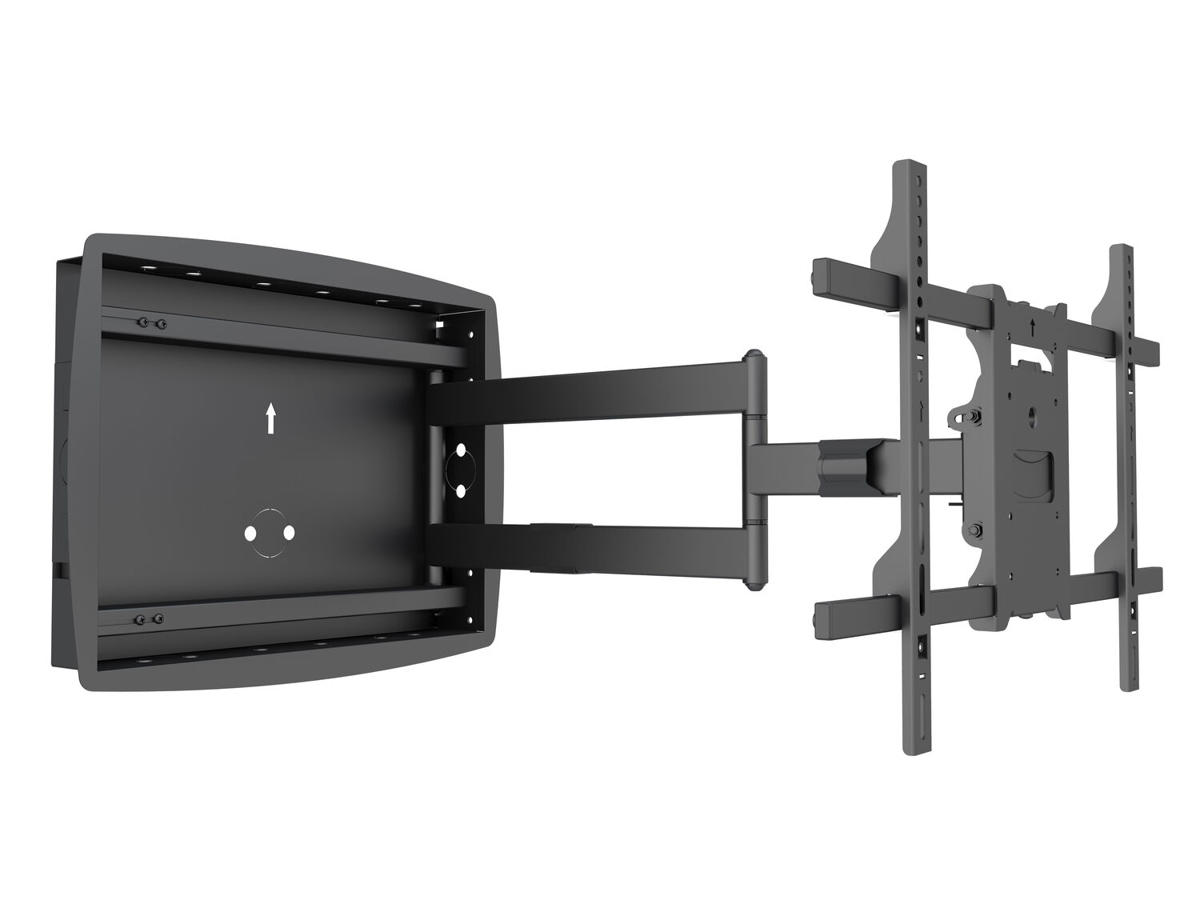

This M Recessed Full Motion Flexarm with will mount most flat-panel TV up to 45 kg. With its ingenious design it allows even the largest TVs to extend up to 75cm from the wall, retract, tilt, and swivel with ease. Using smart tilting technology we allow effortless viewing angle with a tool less manual adjustment.
The Multibrackets recessed Flexarm allows a flat-panel TV´s to rest flush against the wall, hiding mounting hardware for a “no profile” solution for the full-motion Flexarm. Easily installed by cutting a hole into sheetrock between wood studs (cc 60). The included template allows box to be leveled and secured tightly into place. All details made in a heavy gauge steel construction. The in wall box features knockouts for power cables and audio/video cables.
The M Recessed Full Motion Flexarm in-wall design is made to fit securely between cc 60 stud centers. When fully retracted, its arm assembly allows your TV to sit almost flush with the wall.
Constructed out of solid steel, the M Recessed Full Motion Flexarm safely supports 32” - 80” TVs weighing up to 45kgs, while its adjustable mounting brackets accommodate VESA sizes between 100×100, 100x200, 200x100, 200x200, 300x300, 400x200, 400x300, 400x400, 600x300 and 600×400.
Use the M Recessed Full Motion Flexarm articulating arm to ensure you always have the perfect viewing angle. Extend it out 75cm to provide ample room to tilt and swivel your TV.
Because every installation is unique, the M Recessed Full Motion Flexarm is carefully packaged with all the lag bolts, washers and spacers that you may need. -
Montering Antal understøttede skærme 1 Maksimal skærmstørrelse kompatibilitet 2,03 m (80") Monteringstype Væg Maksimal vægtkapacitet 45 kg Montering interface kompatibilitet (min.) 100 x 100 mm Montering interface kompatibilitet (maks.) 600 x 400 mm Minimal skærmstørrelse kompatibilitet 81,3 cm (32") Panel montering grænseflade 100 x 100,100 x 200,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 300,600 x 400 Ergonomisk Justerbar dybde Ja Hældningsindstilling Ja Hældningsvinkelområde -5 - 10° Drejelig vinkel 180° Drejevinkel 120° Forbedret kabelstyring Ja Afstand til væggen (maks.) 75,6 cm Afstand til væggen (min.) 0 mm Design Produktfarve Sort Husmateriale Stål Tekniske detaljer 3 0 g Vægt af plastemballage 60 g Vægt af papir/papemballage 800 g Vægt & størrelser Bredde 565 mm Dybde (min.) 9,9 cm Højde 435 mm Vægt 9,34 kg Aluminiumindhold (vægt) 0 g Stålindhold (vægt) 9,34 kg Andet metalindhold (vægt) 0 g Emballeringsdata Pakkebredde 455 mm Pakkedybde 745 mm Pakkehøjde 130 mm Pakkevægt 10,2 kg Pakketype Kasse Logistik data Produkter pr. forsendelseskasse (indvendig) 1 stk
