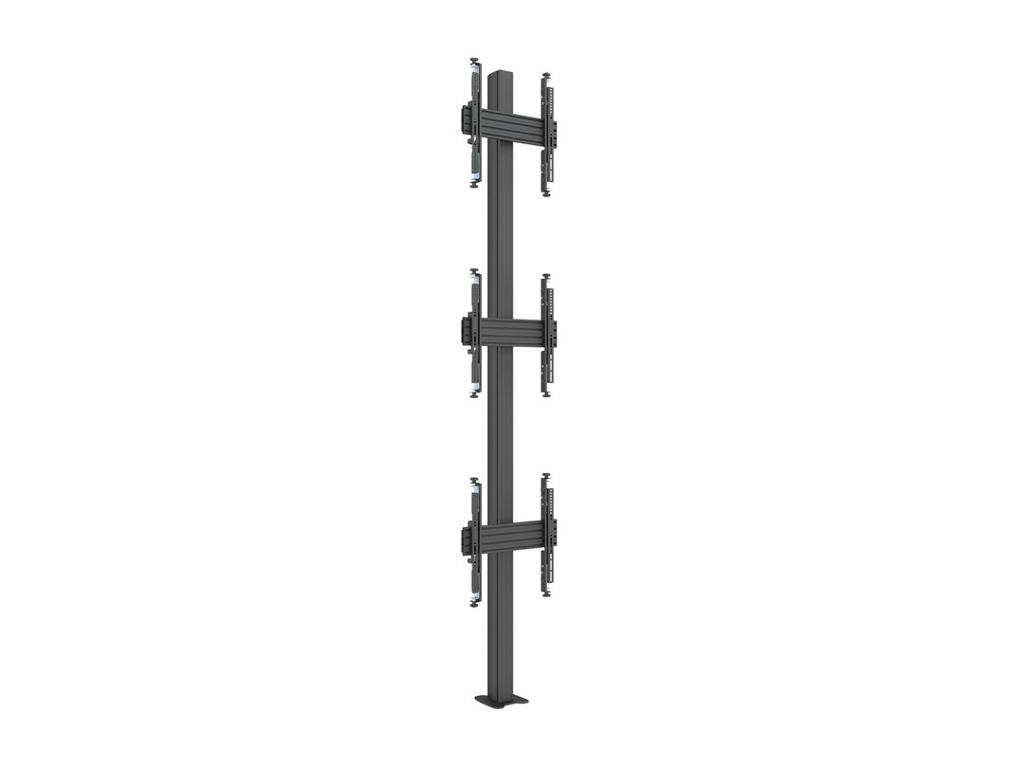

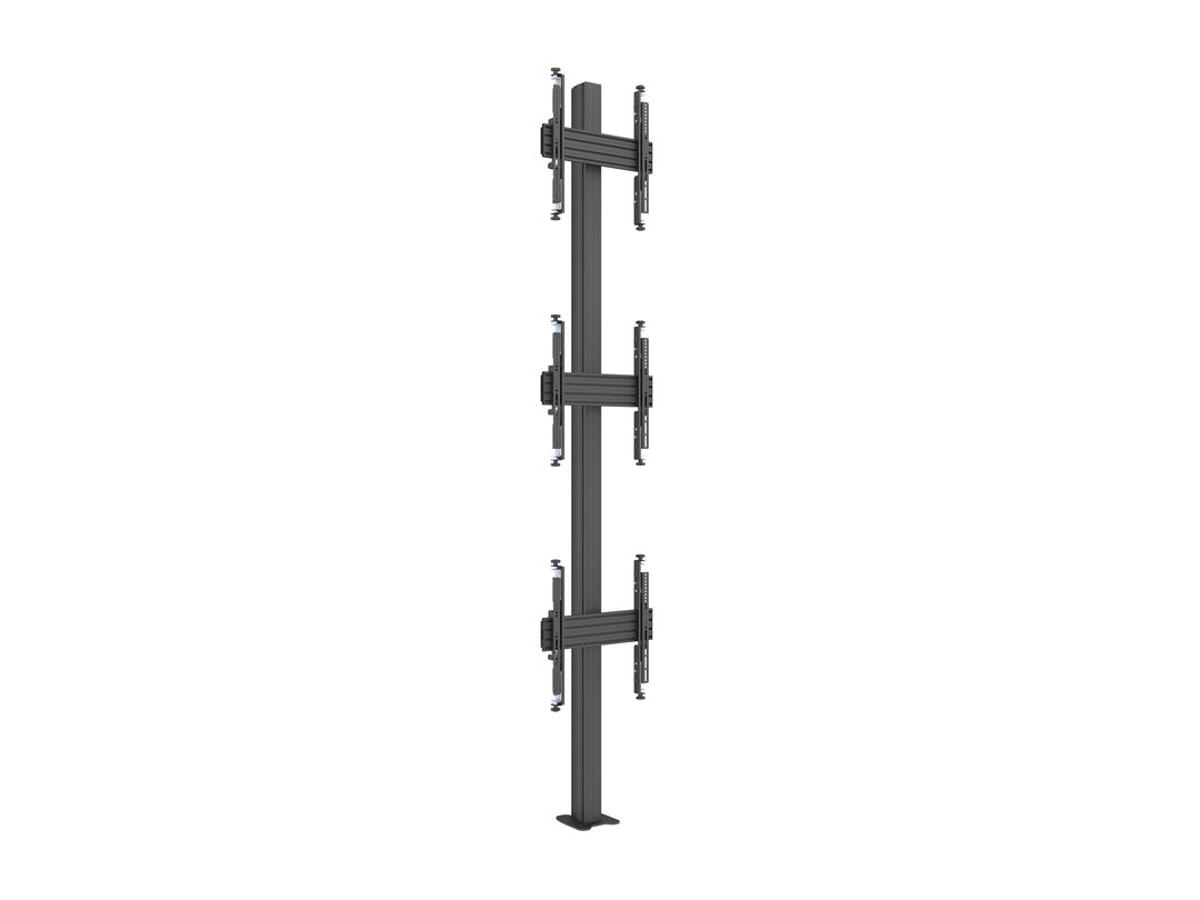

M Floormount Column Pro MBFC3U 270 Micro Adjustable is a signage solution - ready to be installed.
The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install and simple to maintain. Developed together with installers we added close to unlimited flexibility and versatility. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.
With its modular construction installers can tailor the MBFC3U 270 Micro Adjustable with the clients need in mind. Possibilities to change, update and reconfigure its design and if ideas change over time Pro Series can follow
The M Floormount Column Pro MBFC3U 270 Micro Adjustable creates a rock steady screen display solution aimed for the retail store, mall or any other public area. 50mm black, brass or chrome tubes can be tailored to fit the environment the unit is positioned in. Mount screens with tilt or fixed displays. Place them side by side and/or above each other.
This M Floormount Column series was designed with our Scandinavian heritage in mind and provides a clean Nordic look where each part and detail is made as simple as can be and still service its function. The result a sleek Nordic solution emphasizing quality and function by design and its material choices throughout the entire solution. Widely used in a variety of environments the unit can also be mounted floor to wall via a wall bracket accessory uniquely constructed to hold the pipe connected to the wall.
Our Pro Series includes hardware so that a basic installation should not be a hassle. The Pro Series possibilities to extend tubes and add details by choice is so vast that one can tailor each solution to its location and needed function. -
Montering Antal understøttede skærme 3 Maksimal skærmstørrelse kompatibilitet 165,1 cm (65") Monteringstype Gulv Maksimal vægtkapacitet 90 kg Montering interface kompatibilitet (min.) 75 x 75 mm Montering interface kompatibilitet (maks.) 400 x 400 mm Minimal skærmstørrelse kompatibilitet 81,3 cm (32") Panel montering grænseflade 75 x 75,100 x 100,200 x 200,300 x 300,400 x 400 Ergonomisk Højdejustering Ja Højdejusteringstype Vejledning Hældningsindstilling Ja Hældningsvinkelområde -4 - 4° Forbedret kabelstyring Ja Design Produktfarve Sort Husmateriale Aluminium, Plast, Stål Tekniske detaljer 3 0 g Vægt af plastemballage 120 g Vægt af papir/papemballage 2,4 kg Vægt & størrelser Bredde 490 mm Dybde (maks.) 18,8 cm Højde 2710 mm Vægt 20 kg Aluminiumindhold (vægt) 3,1 kg Stålindhold (vægt) 20 kg Andet metalindhold (vægt) 0 g Emballeringsdata Pakkevægt 22,5 kg Pakke 1 dimensioner (BxDxH) 2767 x 185 x 129 mm Pakke 1 vægt 11,8 kg Pakke 2 dimensioner (B x D x H) 595 x 202 x 195 mm Pakke 2 vægt 15 kg
