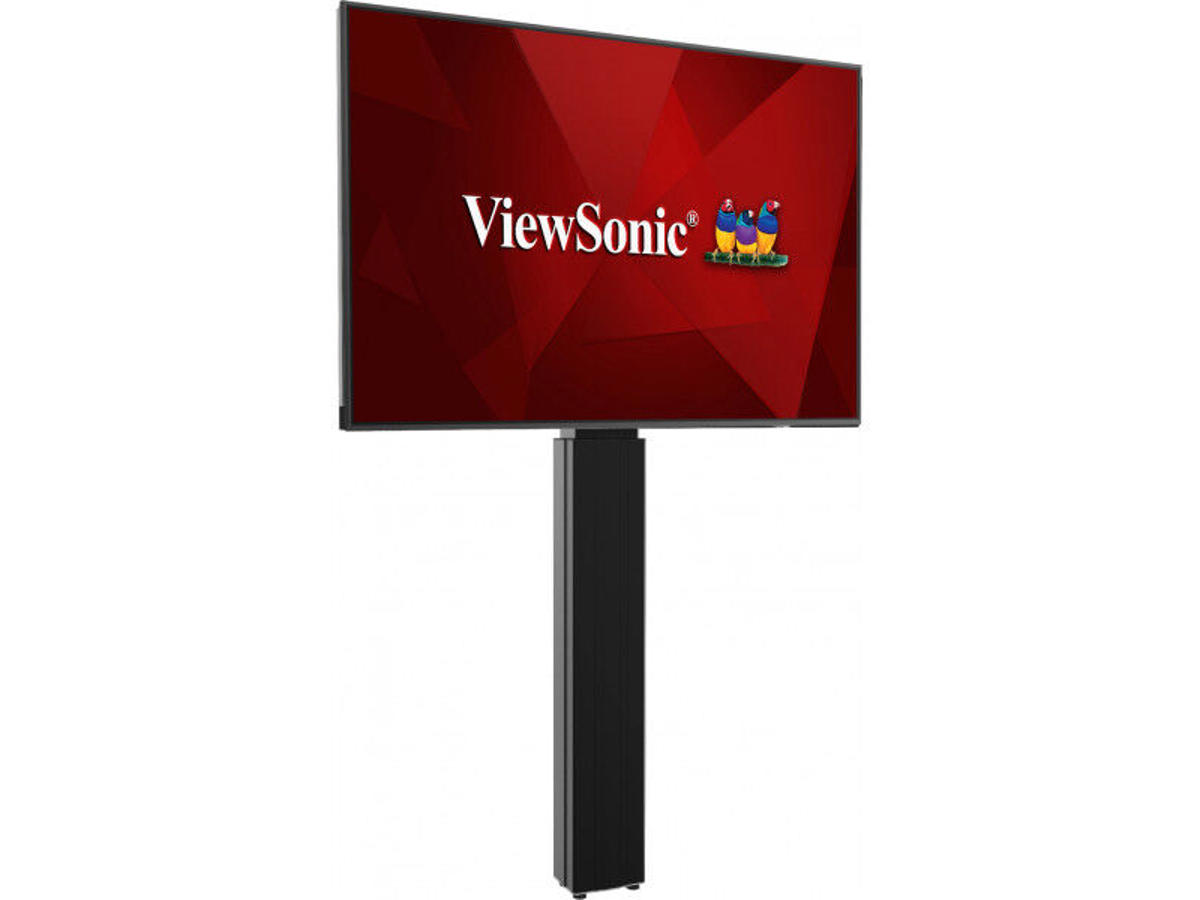

Motorized adjustable wall mount for 42”-86” (interactive) touch screen. The single-column, floor-to-wall design, guarantees maximum stability & safety. The mount comes standard with a wired remote control, allowing the user to raise and lower the screen with a simple touch of the button. The high-speed actuator has an unsurpassed speed of 1.85”/47mm per second.
ViewSonic cares about classroom safety. The motorized mount features an anti-collision sensor that detects objects that are in the way during operation. If an obstruction is detected, the system stops and reverses the operational direction.
The VB-CNF-002 monitor mount also offers an extended 700mm/27.6” of smooth motorized height adjustment giving everyone, even those in early grades or in a wheelchair, to participate.
The integrated display mount allows for displays with maximum weight of 136kg/300 lbs. and a max. VESA 800x600 pattern. Two “pull & release” locking brackets ensure quick and easy mounting of the monitor.
| Montering | |
| Antal understøttede skærme | 1 |
| Maksimal skærmstørrelse kompatibilitet | 2,18 m (86") |
| Monteringstype | Væg |
| Maksimal vægtkapacitet | 136 kg |
| Montering interface kompatibilitet (maks.) | 800 x 600 mm |
| Minimal skærmstørrelse kompatibilitet | 106,7 cm (42") |
| Ergonomisk | |
| Højdejustering | Ja |
| Højdejusteringstype | Elektrisk |
| Højdejusteringsområde | 1080 - 1780 mm |
| Løft | 70 cm |
| Løftehastighed | 47 mm/sek. |
| Design | |
| Produktfarve | Sort |
| Husmateriale | Aluminium, Plast, Stål |
| Strømstyring | |
| Motoriseret | Ja |
| Fjernbetjent | Ja |
| Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
| Vægt & størrelser | |
| Bredde | 890 mm |
| Dybde | 166 mm |
| Højde | 1080 mm |
| Vægt | 34,5 kg |
| Emballeringsdata | |
| Pakkebredde | 1200 mm |
| Pakkedybde | 200 mm |
| Pakkehøjde | 800 mm |
| Pakkevægt | 36 kg |
| Emballage indhold | |
| Brugervejledning | Ja |
| Monteringssæt | Ja |
| Fjernbetjening inkluderet | Ja |
| Kabler inkluderet | Vekselstrøm |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85299097 |
