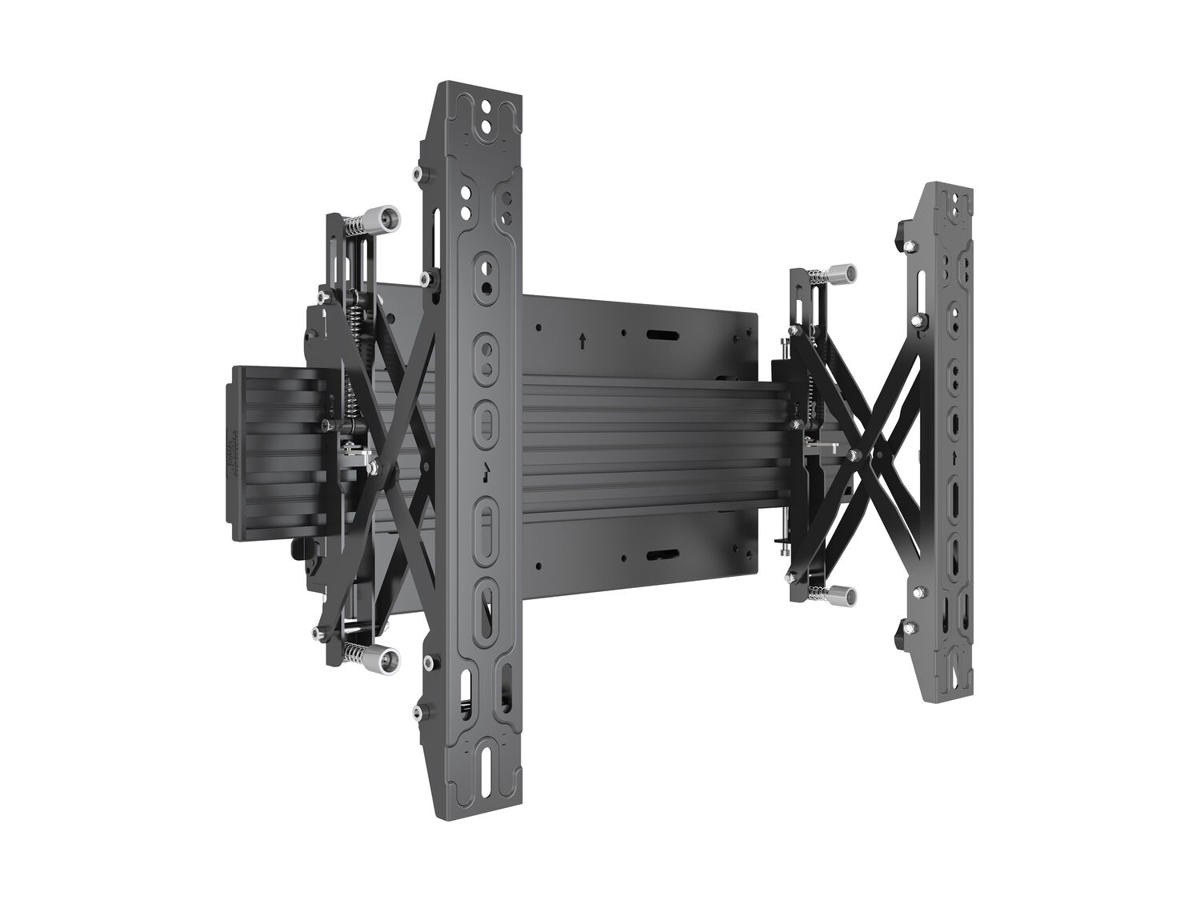

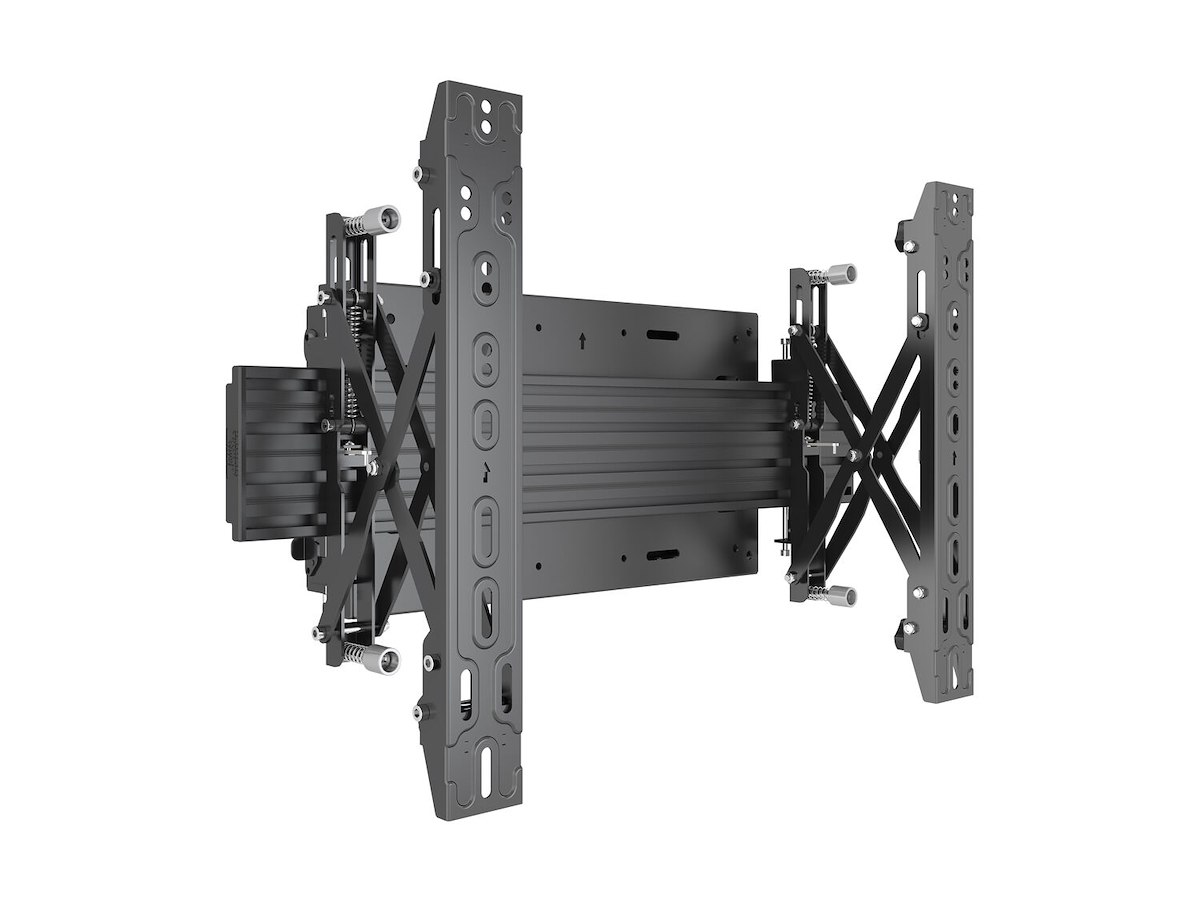

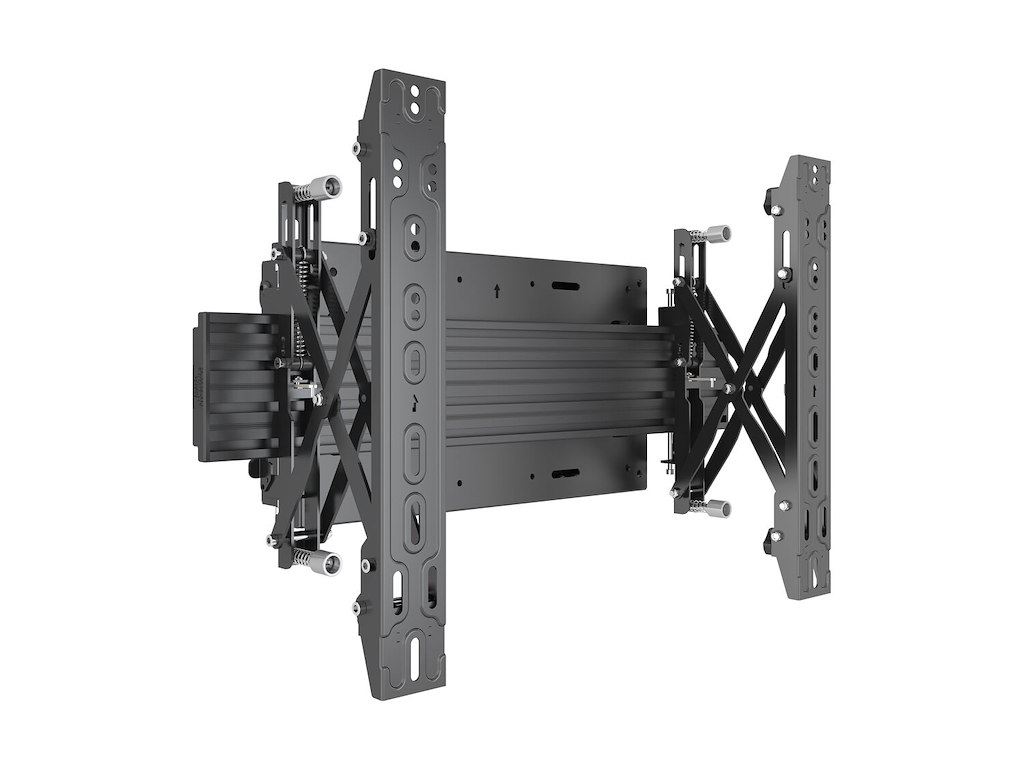

The Multibrackets M Wallmount Pro MBW1U Push-In Pop-Out Black with integrated wall box offers a sophisticated solution for single-display installations, combining a push-in pop-out wall bracket with practical storage for AV equipment behind the screen. This innovative feature allows for easy adjustment of the screen’s position while keeping AV devices such as boxes, network equipment, or TV accessories neatly concealed yet accessible.
Designed with the installer in mind, the Pro Series provides a modular, easy-to-configure system that simplifies installation and maintenance. The push-in pop-out function allows the screen to be easily extended or retracted, providing flexible positioning and easy access to connections. The sturdy aluminum rail system includes comprehensive cable management, ensuring a clean and professional finish.
The Pro Series' modular construction offers extensive customization options, allowing installers to modify and update the setup to meet evolving design needs. Each component is designed with Scandinavian principles in mind, emphasizing both aesthetic appeal and functional quality.
Customizable features, such as the extendable aluminum rail and adjustable brackets, make it possible to tailor the mount to specific requirements. The product includes all necessary hardware for a straightforward installation process.
| Montering | |
| Antal understøttede skærme | 1 |
| Maksimal skærmstørrelse kompatibilitet | 190,5 cm (75") |
| Monteringstype | Væg |
| Maksimal vægtkapacitet | 40 kg |
| Montering interface kompatibilitet (min.) | 100 x 100 mm |
| Montering interface kompatibilitet (maks.) | 600 x 400 mm |
| Minimal skærmstørrelse kompatibilitet | 101,6 cm (40") |
| Ergonomisk | |
| Højdejustering | Ja |
| Højdejusteringstype | Vejledning |
| Højdejusteringsområde | 0 - 5 mm |
| Hældningsvinkelområde | -3 - 3° |
| Forbedret kabelstyring | Ja |
| Hældningsindstilling | Ja |
| Justering af dybde | 1,5 cm |
| Design | |
| Produktfarve | Sort |
| Husmateriale | Aluminium, Stål |
| Vægt & størrelser | |
| Bredde | 695 mm |
| Dybde | 107 mm |
| Højde | 263 mm |
| Vægt | 10,3 kg |
| Aluminium content weight | 1,4 kg |
| Steel content weight | 10,3 kg |
| Other metals content weight | 0 g |
| Emballeringsdata | |
| Pakkebredde | 695 mm |
| Pakkedybde | 107 mm |
| Pakkehøjde | 263 mm |
| Pakkevægt | 11 kg |
| Antal pr. pakke | 1 stk |
| Emballage indhold | |
| Monteringssæt | Ja |
| Tekniske detaljer | |
| Compliance-certifikater | CE |
| Paper/cardboard packaging weight | 600 g |
| 3 | 0 g |
| Vægt af plastemballage | 70 g |
