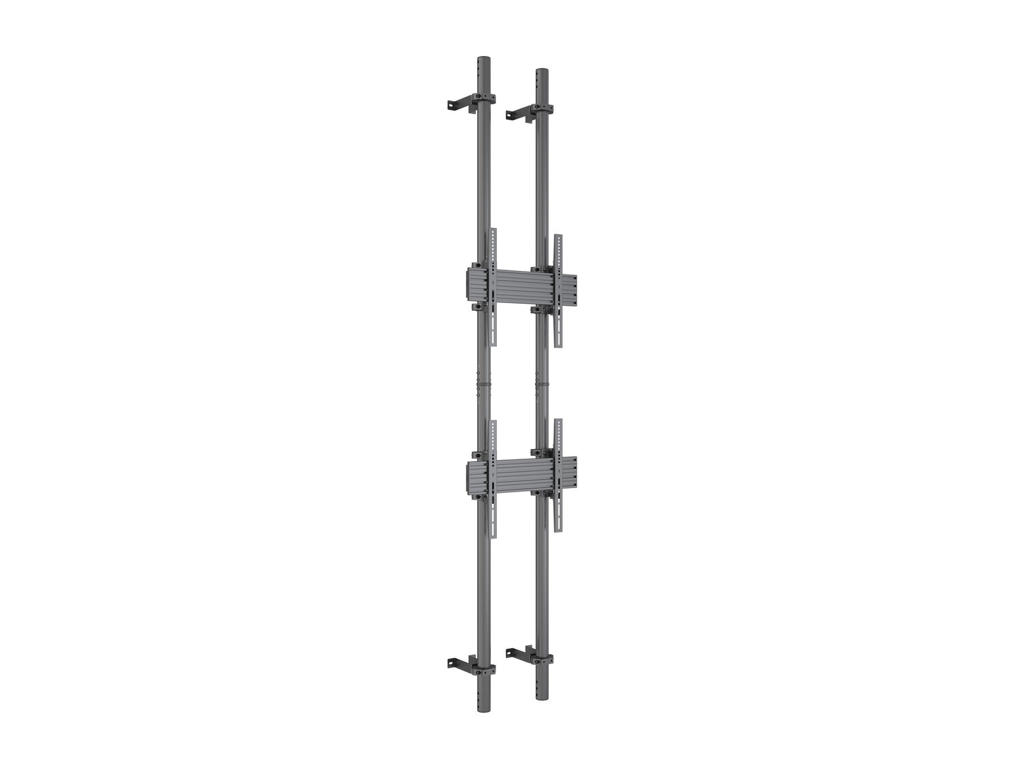

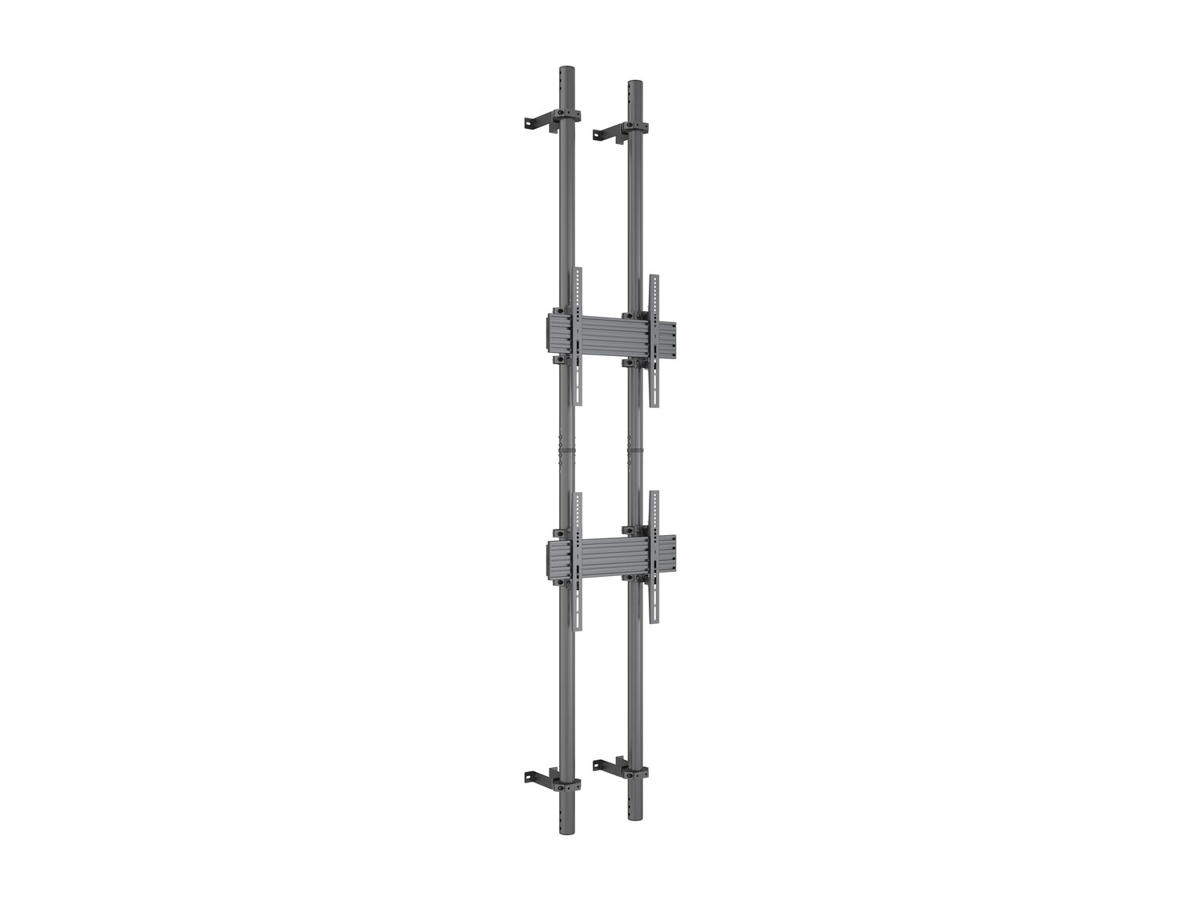

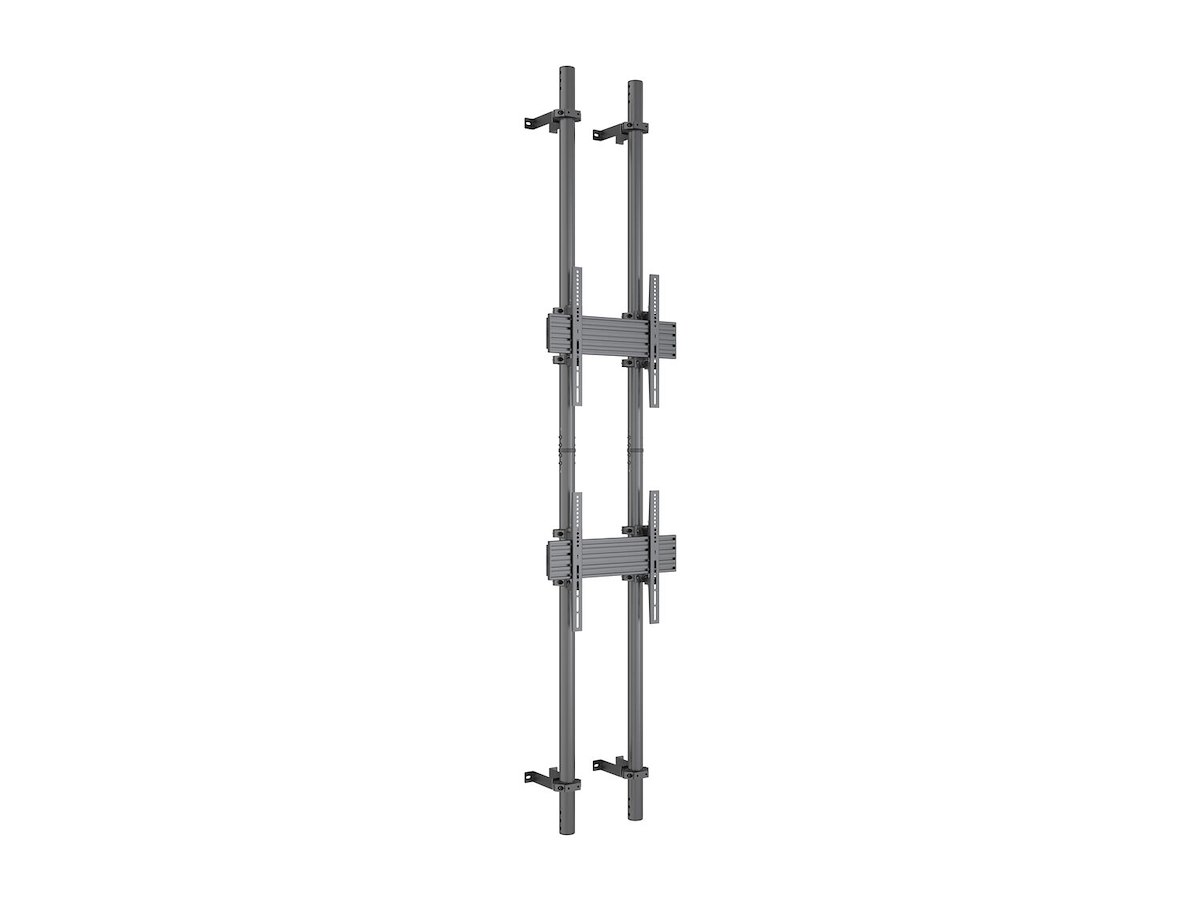

Multibrackets 8309 skærmbeslag til skiltning 165,1 cm (65") Sort
Varenummer: 8309
.
DKK 10.325,00 / Stk
DKK 8.260,00 ekskl. moms
  •
Multibrackets 8309. Maksimal vægtkapacitet: 60 kg, Minimal skærmstørrelse kompatibilitet: 101,6 cm (40"), Maksimal skærmstørrelse kompatibilitet: 165,1 cm (65"), Montering interface kompatibilitet (min.): 100 x 100 mm, Montering interface kompatibilitet (maks.): 400 x 400 mm. Produktfarve: Sort


Mere information

  • Multibrackets Pro Series M Wall to Wall Mount Pro 3m MBWW2U is a signage solution - ready to be installed.

    The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, height adjustable, quick to install and simple to maintain. Developed together with installers we added close to unlimited flexibility and versatility. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.

    With its modular construction installers can tailor with the clients need in mind. Possibilities to change, update and reconfigure its design and if ideas change over time Pro Series can follow
    The M Wall to Wall Mount Pro 3m MBWW2U creates a rock steady screen display solution aimed for the retail store, mall or any other public area. 50mm black, brass or chrome tubes can be tailored to fit the environment the unit is positioned in. Mount screens with tilt or fixed displays. Place them side by side and/or above each other.

    This M Wall to Wall Mount Pro series was designed with our Scandinavian heritage in mind and provides a clean Nordic look where each part and detail is made as simple as can be and still service its function. The result a sleek Nordic solution emphasizing quality and function by design and its material choices throughout the entire solution. Widely used in a variety of environments the unit can also be mounted floor to wall via a wall bracket accessory uniquely constructed to hold the pipe connected to the wall.
    Our Pro Series includes hardware so that a basic installation should not be a hassle. The Pro Series possibilities to extend tubes and add details by choice is so vast that one can tailor each solution to its location and needed function.

    Multibrackets Pro Series M Wall to Wall Mount Pro 3m MBWW2U for any large screen digital signage application.

    Highlights
    Dual display Wall to Wall installation
    Includes VESA adapters for compatibility up to VESA 400x400
    Integrated cable management throughout the entire solution
    Installs easy, fast and safe
    Portrait or landscape position of screen possible
    Hardware kit included

    Selected models are TÜV approved.
    MB Pro Series is design protected by Multibrackets

  • Montering
    Antal understøttede skærme 2
    Maksimal vægtkapacitet (pr. skærm) 30 kg
    Maksimal skærmstørrelse kompatibilitet 165,1 cm (65")
    Monteringstype Væg
    Maksimal vægtkapacitet 60 kg
    Montering interface kompatibilitet (min.) 100 x 100 mm
    Montering interface kompatibilitet (maks.) 400 x 400 mm
    Minimal skærmstørrelse kompatibilitet 101,6 cm (40")
    Ergonomisk
    Forbedret kabelstyring Ja
    Design
    Produktfarve Sort
    Husmateriale Aluminium, Plast, Stål
    Vægt & størrelser
    Bredde 245 mm
    Dybde 168 mm
    Højde 1555 mm
    Vægt 24 kg
    Aluminium content weight 2 kg
    Steel content weight 24 kg
    Other metals content weight 0 g
    Emballeringsdata
    Pakkebredde 245 mm
    Pakkedybde 168 mm
    Pakkehøjde 1555 mm
    Pakkevægt 25 kg
    Antal pr. pakke 1 stk
    Emballage indhold
    Monteringssæt Ja
    Tekniske detaljer
    Orientering Landskab/portræt
    Compliance-certifikater CE
    Paper/cardboard packaging weight 900 g
    3 0 g
    Vægt af plastemballage 88 g
    Overholdelse af bæredygtighed Ja
