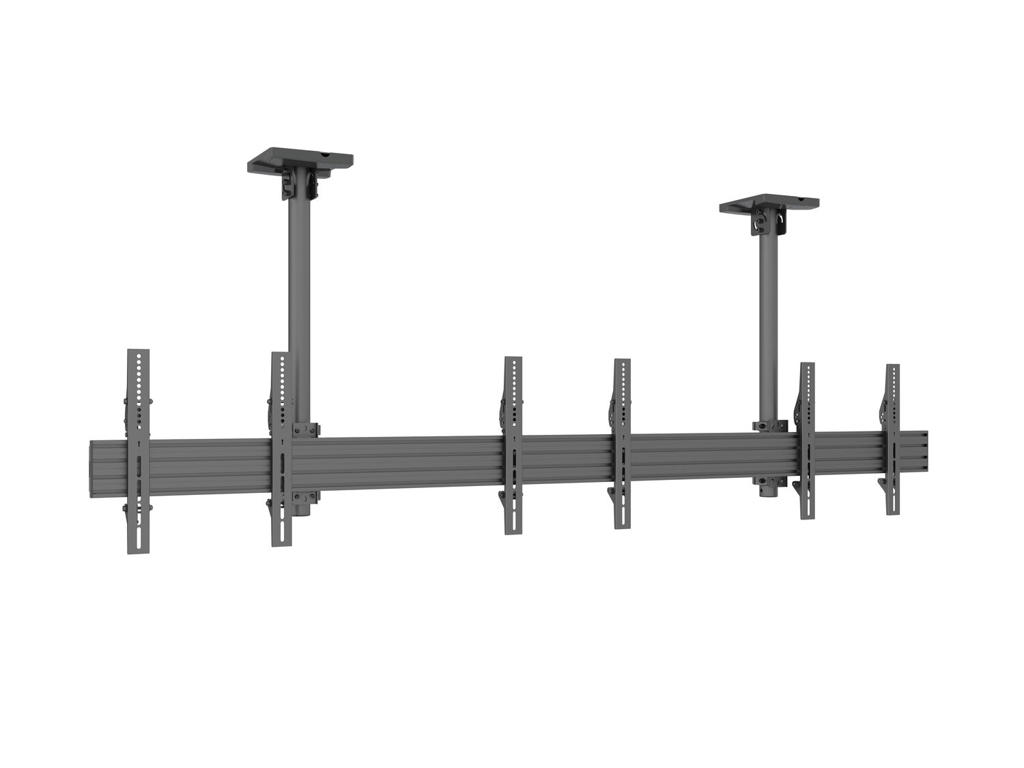

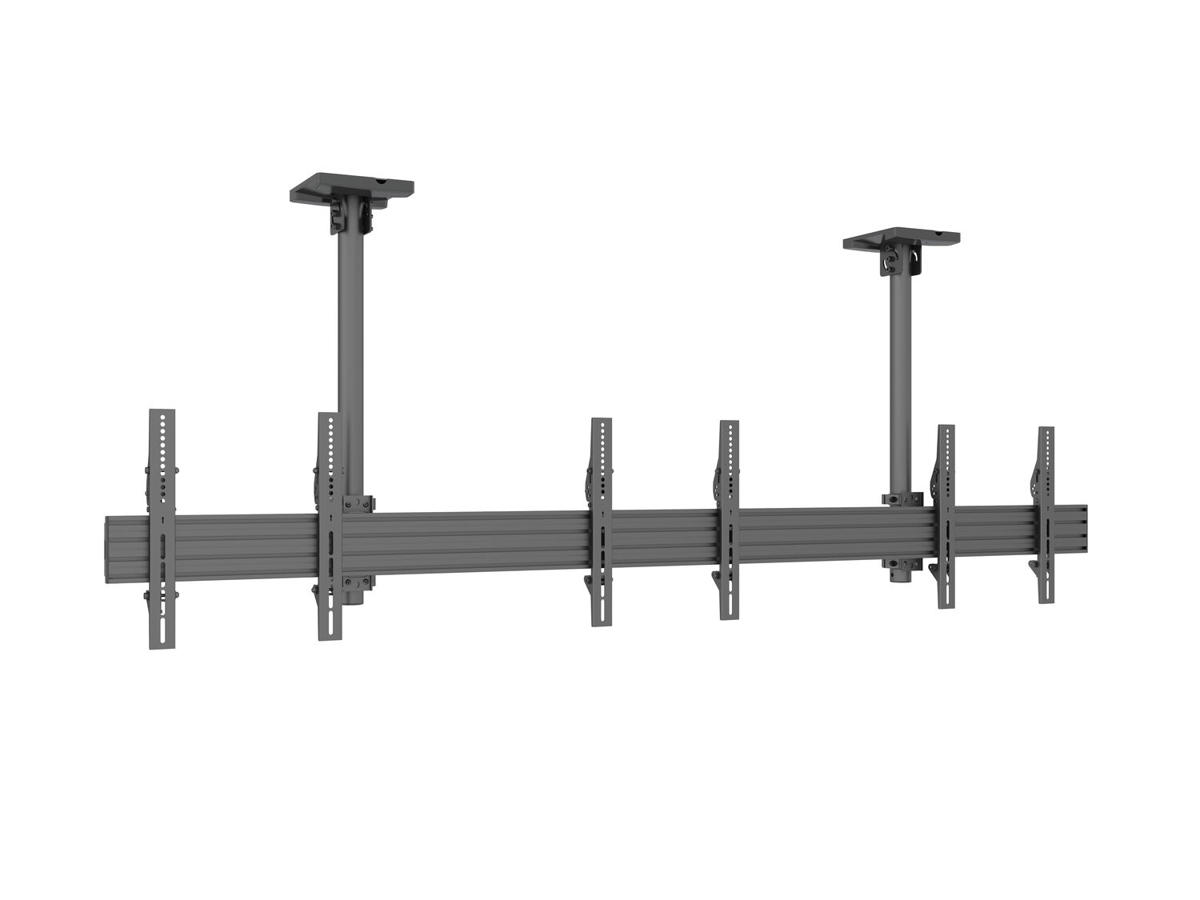

The M Menuboard Mount Pro MBC3X1U is our 3 screen side by side menuboard system - ready to be installed.
The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install and simple to maintain. Developed together with installers we added close to unlimited flexibility and versatility. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.
With its modular construction installers can tailor the MBC3X1U with the clients need in mind. Possibilities to change, update and reconfigure its design and if ideas change over time Pro Series can follow.
The M Menuboard Mount Pro MBC3X1U creates a seamless mounting surface through the aluminum rail. The tilted mounting of the displays allow all displays to be placed side by side and tilted at the same angle with ease creating alignment and true menuboard perfection.
Designed with our Scandinavian heritage in mind Pro Series provides a clean Nordic look where each part and detail is made as simple as can be and still service its function. Possible to use in a variety of environments our Pro Series Menuboards are truly versatile. The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. With included hardware kit a basic installation should not be a hassle.
Multibrackets Pro Series Menuboards is simply ideal for any large screen digital signage application.
| Montering | |
| Antal understøttede skærme | 3 |
| Maksimal skærmstørrelse kompatibilitet | 165,1 cm (65") |
| Monteringstype | Loft |
| Maksimal vægtkapacitet | 90 kg |
| Montering interface kompatibilitet (min.) | 100 x 100 mm |
| Montering interface kompatibilitet (maks.) | 600 x 400 mm |
| Minimal skærmstørrelse kompatibilitet | 101,6 cm (40") |
| Panel montering grænseflade | 100 x 100,600 x 400 mm |
| Ergonomisk | |
| Højdejustering | Ja |
| Højdejusteringstype | Vejledning |
| Højdejusteringsområde | 580 - 3150 mm |
| Hældningsvinkelområde | 0 - 15° |
| Drejelig vinkel | 360° |
| Rotationsvinkel | 8° |
| Forbedret kabelstyring | Ja |
| Design | |
| Produktfarve | Sort |
| Husmateriale | Aluminium, Stål |
| Certificering | CE |
| Vægt & størrelser | |
| Bredde | 3690 mm |
| Dybde | 3380 mm |
| Højde | 200 mm |
| Vægt | 22,6 kg |
| Aluminium content weight | 7,6 kg |
| Steel content weight | 22,5 kg |
| Other metals content weight | 0 g |
| Emballeringsdata | |
| Pakkebredde | 360 mm |
| Pakkedybde | 1030 mm |
| Pakkehøjde | 180 mm |
| Pakkevægt | 23,4 kg |
| Tekniske detaljer | |
| Paper/cardboard packaging weight | 800 g |
| 3 | 0 g |
| Vægt af plastemballage | 50 g |
| Andre funktioner | |
| Skærmstørrelse kompatibilitet | 1016 - 1651 mm (40 - 65") |
| VESA montering | Ja |
| Logistik data | |
| Forsendelseskasses kassens bredde (indvendig) | 36 cm |
| Forsendelseskassens længde (indvendig) | 103 cm |
| Forsendelseskassens højde (indvendig) | 18 cm |
| Forsendelseskassens bruttovægt (indvendig) | 34,5 kg |
| Produkter pr. forsendelseskasse (indvendig) | 1 stk |
