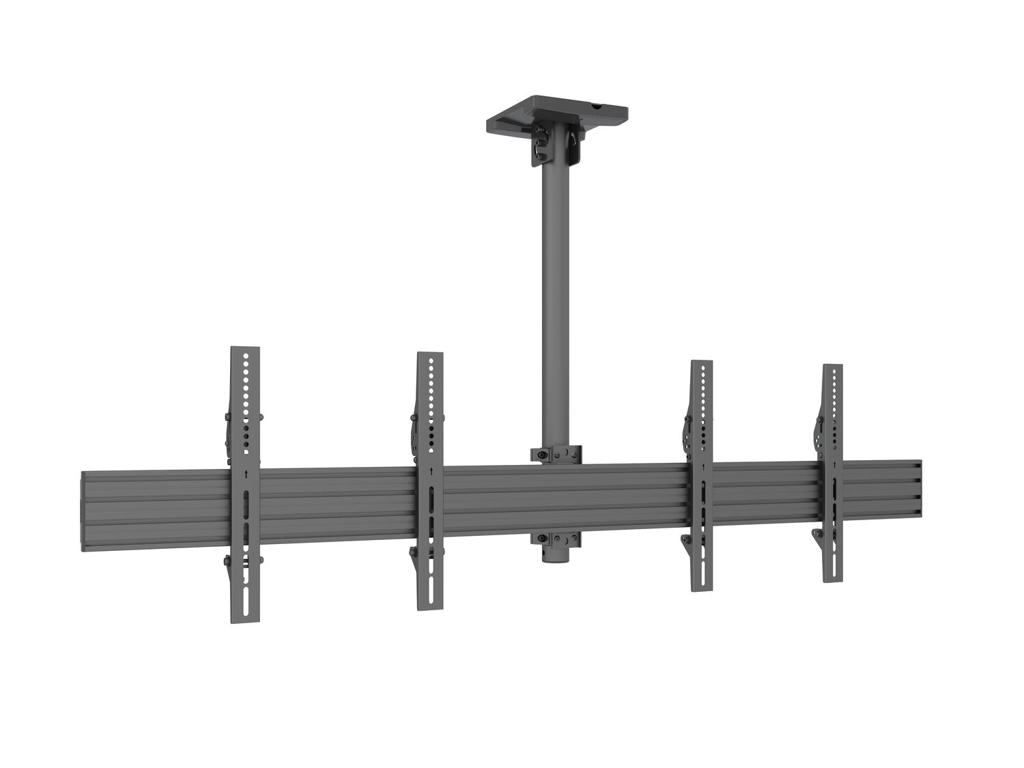

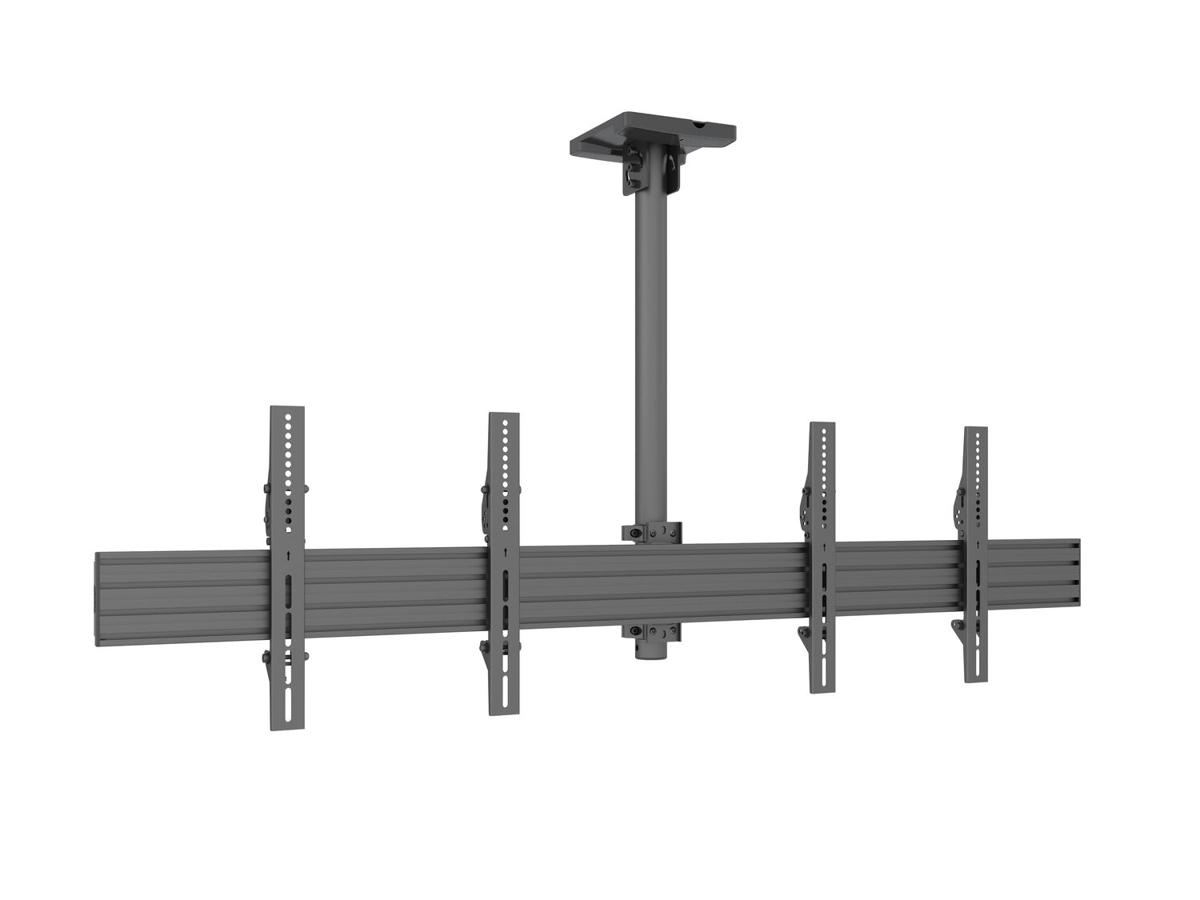

The M Menuboard Mount Pro MBC2X1U is our 2 screen side by side menuboard system - ready to be installed.
The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install and simple to maintain. Developed together with installers we added close to unlimited flexibility and versatility. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.
With its modular construction installers can tailor the MBC2X1U with the clients need in mind. Possibilities to change, update and reconfigure its design and if ideas change over time Pro Series can follow.
The M Menuboard Mount Pro MBC2X1U creates a seamless mounting surface through the aluminum rail. The tilted mounting of the displays allow all displays to be placed side by side and tilted at the same angle with ease creating alignment and true menuboard perfection.
Designed with our Scandinavian heritage in mind Pro Series provides a clean Nordic look where each part and detail is made as simple as can be and still service its function. Possible to use in a variety of environments our Pro Series Menuboards are truly versatile. The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. With included hardware kit a basic installation should not be a hassle.
Multibrackets Pro Series Menuboards is simply ideal for any large screen digital signage application. -
Montering Antal understøttede skærme 2 Maksimal skærmstørrelse kompatibilitet 165,1 cm (65") Monteringstype Loft Maksimal vægtkapacitet 60 kg Montering interface kompatibilitet (min.) 100 x 100 mm Montering interface kompatibilitet (maks.) 800 x 600 mm Minimal skærmstørrelse kompatibilitet 101,6 cm (40") Panel montering grænseflade 100 x 100,600 x 400,800 x 600 Ergonomisk Højdejustering Ja Højdejusteringstype Vejledning Højdejusteringsområde 580 - 1550 mm Hældningsvinkelområde 0 - 15° Drejelig vinkel 360° Rotationsvinkel 8° Forbedret kabelstyring Ja Loftsmontering rørlængde (min.) 58 cm Loftsmontering rørlængde (maks.) 155 cm Hældningsindstilling Ja Design Produktfarve Sort Husmateriale Aluminium, Stål Certificering CE Vægt & størrelser Bredde 3380 mm Dybde 200 mm Højde 2220 mm Vægt 24,3 kg Aluminiumindhold (vægt) 4,2 kg Stålindhold (vægt) 24,3 kg Andet metalindhold (vægt) 0 g Emballeringsdata Pakkebredde 200 mm Pakkedybde 1020 mm Pakkehøjde 180 mm Pakkevægt 25 kg Antal pr. pakke 1 stk Emballage indhold Monteringssæt Ja Tekniske detaljer Vægt af papir/papemballage 600 g 3 0 g Vægt af plastemballage 60 g Logistik data Forsendelseskasses kassens bredde (indvendig) 20 cm Forsendelseskassens længde (indvendig) 102 cm Forsendelseskassens højde (indvendig) 18 cm Forsendelseskassens bruttovægt (indvendig) 17,3 kg Produkter pr. forsendelseskasse (indvendig) 1 stk
