4G LTE with AC1200 Wi-Fi to Stream from Everywhere

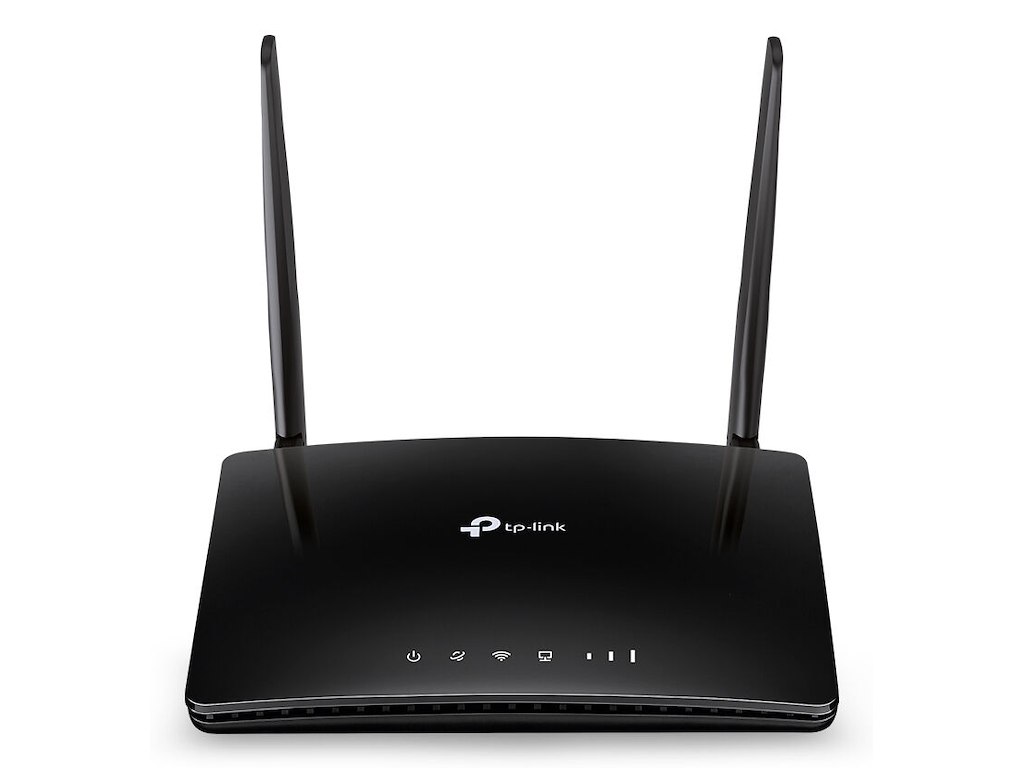

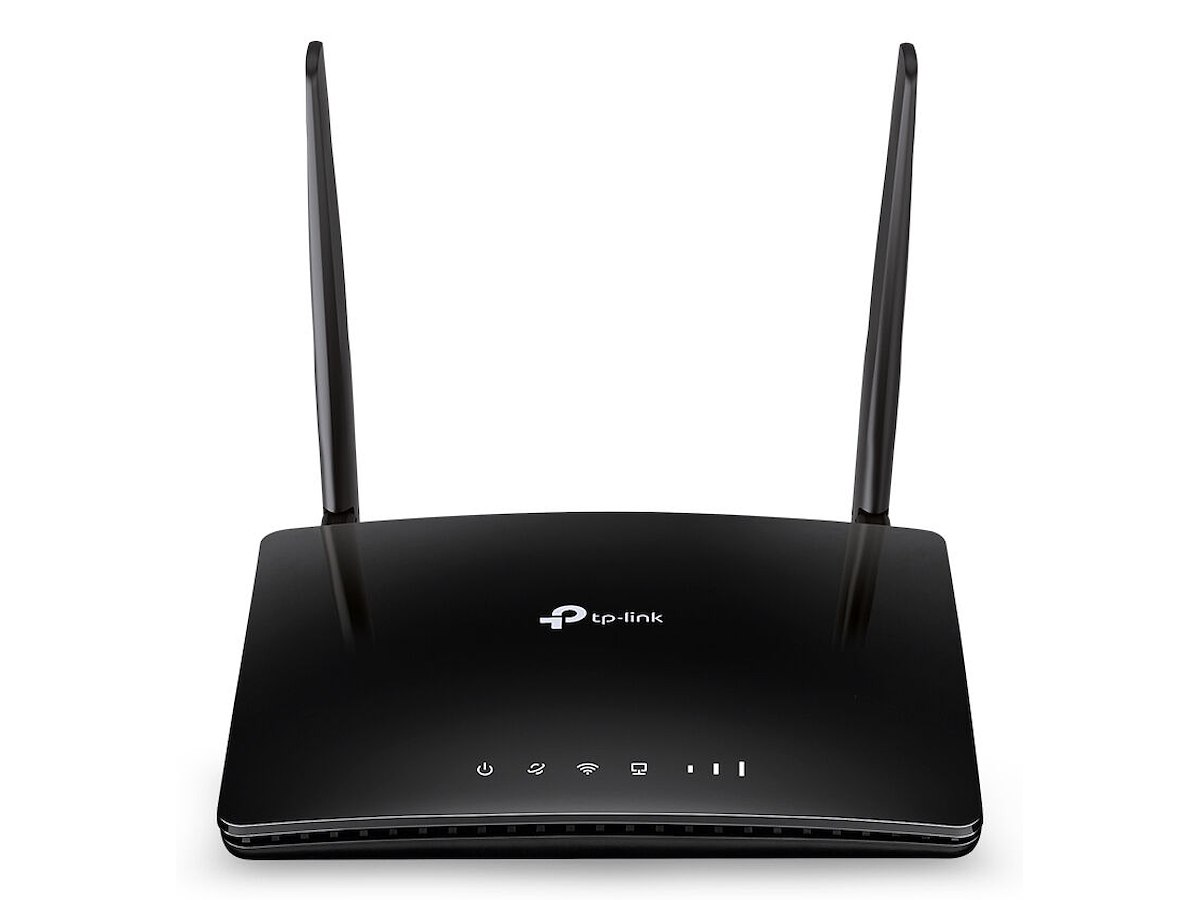

AC1200 Wireless Dual Band 4G LTE Router Archer MR402
Got SIM Card?
Then Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a nano SIM card and turn on the Router. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.
Share Your 4G LTE Network
Take full of advantage of your cutting-edge 4G LTE network for download speeds of up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.
Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a nano SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you’re at home or working remotely.
Internet Access for
up to 64 Devices Simultaneously
Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.
Support TP-Link OneMesh
Co-work with TP-Link OneMesh products, to provide a more flexible and cost-effec
Available WAN Connection
The WAN/LAN port enables Archer MR402 to work as a traditional wireless router that is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 3G/4G connection works as a backup to provide a sustained and reliable internet connection for you.
Easy Setup and Management
Set up the Archer MR402 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
| WAN-forbindelse | |
| Ethernet WAN | Ja |
| DSL WAN | Ingen |
| SIM-kort slot | Ja |
| 3G/4G kompatibilitet USB-modem | Ja |
| Trådløse LAN funktioner | |
| Wi-Fi-bånd | Dual-band (2,4 GHz / 5 GHz) |
| Bedste Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN dataoverførselshastighed (maks) | 867 Mbit/s |
| Wi-Fi-standarder | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN dataoverførselshastighed (første bånd) | 300 Mbit/s |
| WLAN dataoverførselshastighed (anden bånd) | 867 Mbit/s |
| Netværk | |
| Ethernet LAN | Ja |
| Ethernet LAN-grænsefladetype | Hurtigt ethernet |
| Ethernet LAN-datahastigheder | 10,100 Mbit/s |
| Kabelteknologi | 10/100Base-T(X) |
| Netværksstandarder | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Portvideresendelse | Ja |
| Port udløsning | Ja |
| Dynamisk DNS (DDNS) | Ja |
| Antal gæstenetværk (2,4 GHz) | 1 |
| Antal gæstenetværk (5 GHz) | 1 |
| VPN-support | PPTP VPN, OpenVPN |
| Modtager, følsomhed | 5 GHz: 11a 54M: -77 dBm 11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm 11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm 11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm 2.4 GHz: 11g 54M: -74.5 dBm 11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm 11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm |
| Mobilt netværk | |
| Generering af mobilnetværk | 4G |
| 3G standard | HSPA, UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| Understøttelse af 4G-bånd | 700,800,850,900,1800,2100,2300,2500,2600 MHz |
| Understøttelse af 3G-bånd | 850,900,2100 MHz |
| SIM-korttype | NanoSIM |
| Porte & Grænseflader | |
| Ethernet LAN-porte (RJ-45) | 4 |
| USB-port | Ingen |
| DC-in-stik | Ja |
| Administrationsfunktioner | |
| Wi-Fi-multimedie (WMM)/(WME) | Ja |
| Servicekvalitet support (QoS) | Ja |
| Knap til nulstilling | Ja |
| WPS trykknap | Ja |
| Sikkerhed | |
| Sikkerhedsalgoritmer | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | Ja |
| Firewall sikkerhed | DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Adgangskontrolliste (ACL) | Ja |
| Planlægningsadgang | Ja |
| Forældrekontrol | Ja |
| Protokoller | |
| DHCP-klient | Ja |
| DHCP-server | Ja |
| Understøttede netværksprotokoller | IPv4, IPv6 |
| Design | |
| Produkttype | Bordplade router |
| Produktfarve | Sort |
| Godkendelser | |
| Compliance-certifikater | CE, RoHS |
| Emballage indhold | |
| Kabler inkluderet | LAN (RJ-45) |
| AC-adapter inkluderet | Ja |
| Hurtig installationsvejledning | Ja |
| Antenne | |
| Antennedesign | Ekstern |
| Antenner, antal | 2 |
| Aftagelig (e) antenne (r) | Ja |
| Overfører strøm | 23 dBmW |
| Strømstyring | |
| Strømkilde type | DC |
| Udgangsspænding | 12 V |
| Udgangsstrøm | 1 A |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Opbevaringstemperatur (T-T) | -40 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
| Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
| Systemkrav | |
| Understøttede Windows-operativsystemer | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Understøttede Linux-operativsystemer | Ja |
| Understøttede Mac-operativsystemer | Ja |
| Vægt & størrelser | |
| Bredde | 174 mm |
| Dybde | 124,5 mm |
| Højde | 33,5 mm |
| Emballeringsdata | |
| Pakketype | Kasse |
| Antal produkter inkluderet | 1 stk |
