Share Your 4G LTE Network

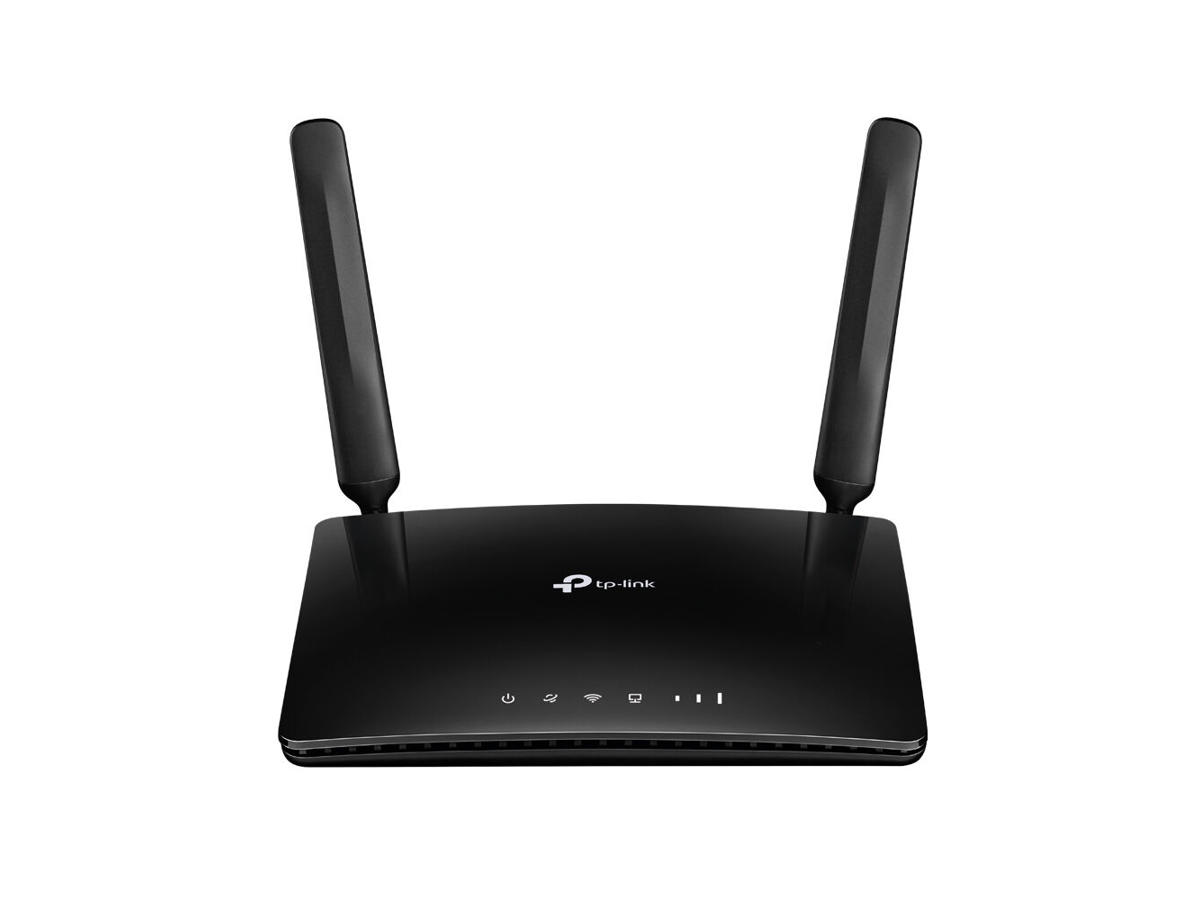

Take full advantage of your cutting-edge 4G LTE network with the Archer MR200, which can achieve download speeds of up to 150Mbps. The Archer MR200 allows you to share your 4G LTE network with multiple Wi-Fi devices so you can enjoy uninterrupted HD movies, rapid file downloads, and video chats that won't freeze up.
Great Coverage and Dual Band Wi-Fi
The 4G LTE router creates a simultaneous dual band Wi-Fi network that can deliver data at speeds of up to 733Mbps. The two distinct wireless networks, utilizing the 2.4GHz and 5GHz bands, provide optimized performance and minimize signal interference. The incorporation of advanced antennas and the latest wireless technology allows you to enjoy stable connections and incredible coverage.
No Configuration Required
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn on the Archer MR200. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.
Wi-Fi Where You Need It
The Archer MR200 offers unmatched convenience and versatility. The ability to quickly establish powerful wireless networks can be tremendously important. The Archer MR200 is the perfect solution whether you're at home or working in a remote location. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments. From the exhibition center to the RV, the Archer MR200 has you covered.
Available WAN Connection
With the inclusion of the WAN/LAN port, the Archer MR200 can also support a wide variety of connection types, including cable, fiber, and DSL modems.
WAN-forbindelse | |
Ethernet WAN | Ja |
DSL WAN | Ingen |
SIM-kort slot | Ja |
3G/4G kompatibilitet USB-modem | Ingen |
Trådløse LAN funktioner | |
Wi-Fi-bånd | Dual-band (2,4 GHz / 5 GHz) |
Bedste Wi-Fi standard | Wi-Fi 5 (802.11ac) |
WLAN dataoverførselshastighed (maks) | 433 Mbit/s |
Wi-Fi-standarder | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
WLAN dataoverførselshastighed (første bånd) | 300 Mbit/s |
WLAN dataoverførselshastighed (anden bånd) | 433 Mbit/s |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-grænsefladetype | Hurtigt ethernet |
Ethernet LAN-datahastigheder | 10,100 Mbit/s |
Kabelteknologi | 10/100Base-T(X) |
Netværksstandarder | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Port udløsning | Ja |
Dynamisk DNS (DDNS) | Ja |
VPN-server | PPTP VPN, IPSec VPN , OpenVPN |
VPN gennemløb | Ja |
VPN-support | PPTP, L2TP, IPSec |
Modtager, følsomhed | 5GHz: 11a 54M: -74dBm 11ac HT20: -67dBm 11ac HT40: -64dBm 11ac HT80 : -60dBm 11n HT20: -71dBm 11n HT40: -70dBm 2.4G: 11g 54M: -76dBm 11n HT20: -73dBm 11n HT40: -67dBm |
Mobilt netværk | |
Generering af mobilnetværk | 4G |
3G | Ja |
4G | Ja |
2G standard | Edge, GPRS, GSM |
3G standard | DC-HSPA+, HSPA, HSPA+, UMTS |
4G standard | LTE |
Understøttede GSM-bånd | 850,900,1800,1900 Mhz |
Understøttede UMTS-bånd | 900,2100 Mhz |
Understøttelse af 4G-bånd | 800,900,1800,2100,2600 Mhz |
SIM-korttype | MicroSIM |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 4 |
USB-port | Ingen |
Hukommelseskortstik | Ingen |
DC-in-stik | Ja |
Administrationsfunktioner | |
Webbaseret administration | Ja |
Wi-Fi-multimedie (WMM)/(WME) | Ja |
Servicekvalitet support (QoS) | Ja |
Knap til nulstilling | Ja |
WPS trykknap | Ja |
Sikkerhed | |
Sikkerhedsalgoritmer | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
Firewall | Ja |
Firewall sikkerhed | DoS, SPI Firewall, IP and MAC Address Binding |
Gæsteadgang | Ja |
Adgangskontrolliste (ACL) | Ja |
Stateful Packet Inspection (SPI) | Ja |
DoS angrebsforebyggelse | Ja |
Filtrering | Ja |
Filtrering af MAC-adresser | Ja |
IP-adresse filtrering | Ja |
Protokoller | |
DHCP-klient | Ja |
DHCP-server | Ja |
Universal Plug and Play (UPnP) | Ja |
Datalink-protokol | IPv4, IPv6 |
Design | |
Produkttype | Bordplade router |
Produktfarve | Sort |
Tænd-/slukkontakt | Ja |
Emballage indhold | |
Kabler inkluderet | LAN (RJ-45) |
AC-adapter inkluderet | Ja |
Hurtig start guide | Ja |
Antenne | |
Antennedesign | Ekstern |
Antenner, antal | 2 |
Aftagelig (e) antenne (r) | Ja |
Funktioner | |
Certificering | CE, FCC, RoHS |
Strømstyring | |
Strømkilde type | Vekselstrøm |
Udgangsspænding | 12 V |
Udgangsstrøm | 1 A |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Systemkrav | |
Understøttede Windows-operativsystemer | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
Understøttede Linux-operativsystemer | Ja |
Understøttede Mac-operativsystemer | Ja |
Vægt & størrelser | |
Bredde | 202 mm |
Dybde | 141 mm |
Højde | 33,6 mm |
Emballeringsdata | |
Mikro til standard SIM-kortadapter | Ja |
Nano til standard SIM-kortadapter | Ja |
Pakkebredde | 307 mm |
Pakkedybde | 223 mm |
Pakkehøjde | 70 mm |
Pakkevægt | 670 g |
Pakketype | Kasse |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
