Varenummer: TL-MR3420
Mere information
-
What This Product Does

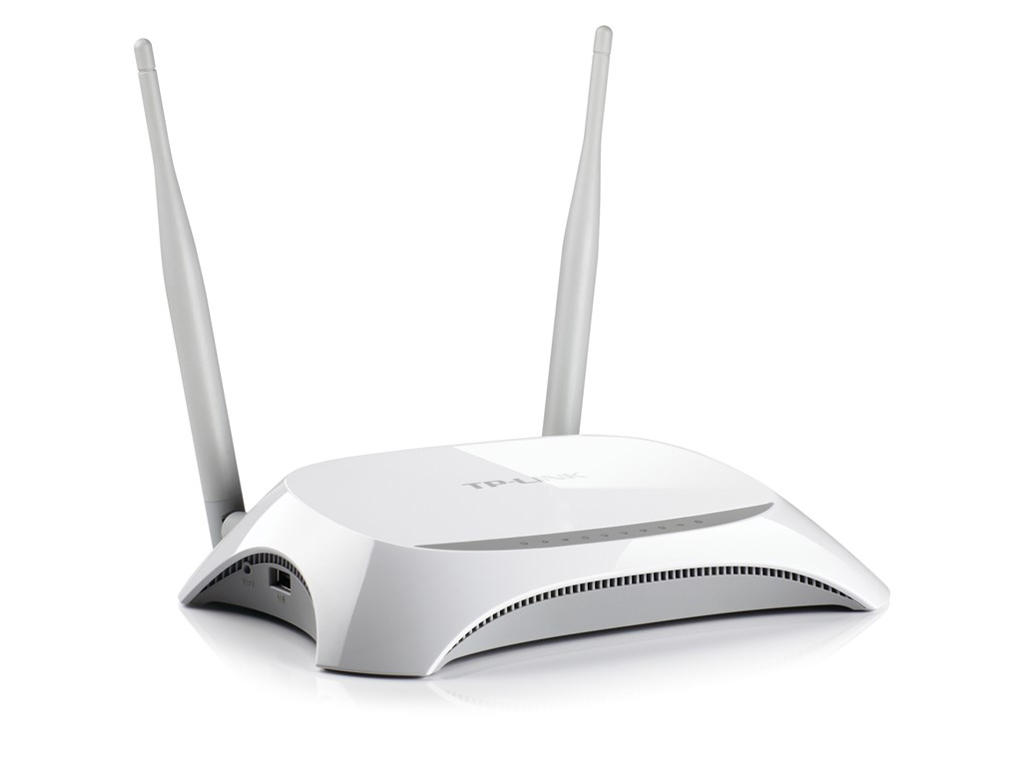

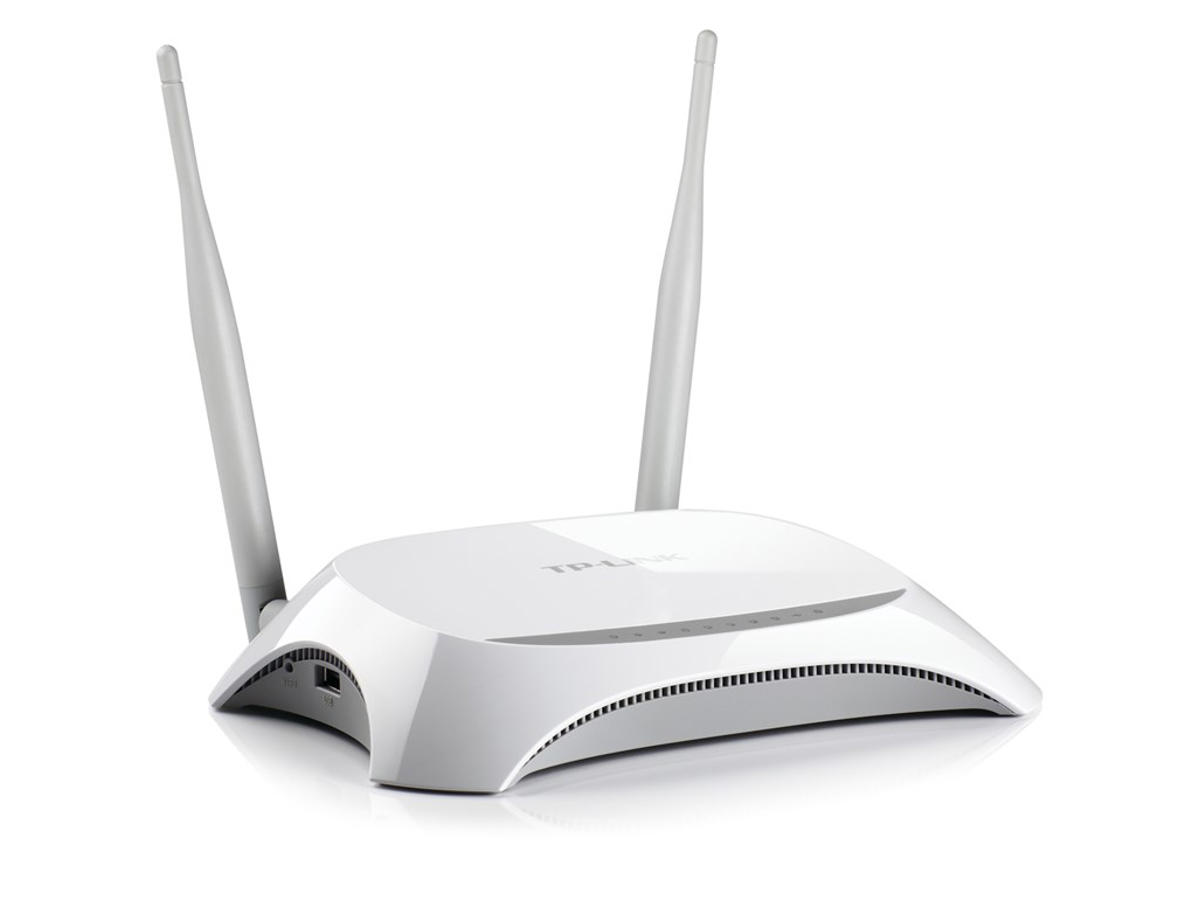

Share the freedom of 3G/4G! The TL-MR3420 3G/4G Wireless N Router allows users to share a 3G/4G mobile broadband connection with family and friends via wired or wireless connections. By connecting a 3G/4G USB modem to the routers, a Wi-Fi hotspot is instantly established, via which multiple devices can access the Internet and share data and applications wirelessly.
Enjoy 3G/4G Wireless Sharing
TL-MR3420 features blazing 4G speeds and backward compatible with 3G modems, allowing users to share a 3G/4G mobile broadband with family and friends via wired or wireless connection.
Tests in the Field-High Compatibility
Compatibility is the most important aspect to consider when you're selecting a 3G/4G router. To ensure the best compatibility between our routers and the modem you would use with the router, TP-LINK has made certain that our 3G/4G Routers are compatible with the ISPs in the regions in which they are sold. We have teams around the globe continually testing our Routers with newly emerged modems to ensure that end users can feel confident that their routers will operate flawlessly where they live and work.
Comprehensive 3G/4G and WAN Connection Backup Strategy
The TL-MR3420 stands out with its 3G/ 4G and WAN connection back-up, which keeps users online when one connection fails. TP-LINK's 3G/4G Router provides users with both 3G/4G Preferred and WAN Preferred back-up modes, while other brands provide one or the other. This brings users a high degree of flexibility when users are setting up the networks with considering connection costs and length of downtime.
Wireless N Speed & Range
Complying with the IEEE 802.11n standard, the TL-MR3420 can establish a wireless network with transmission speeds of up to 300Mbps, while mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Above all, users can easily pick up their wireless network's signal at longer distances from the router, where with legacy 11g products they would have to be much closer.
WPA / WPA2 Encryptions -Advanced Security
In order to safeguard user‘s Wi-Fi networks, WEP encryption is no longer strong enough. The TL-MR3420 provides WPA/WPA2 encryptions (Both Personal and Enterprise),created by the WI-FI Alliance, promoting interpretabilities and security for WLAN, to protect against almost any threat that the Internet or intruders may harbor. -
WAN-forbindelse Ethernet WAN Ja DSL WAN Ingen SIM-kort slot Ingen 3G/4G kompatibilitet USB-modem Ja WAN forbindelsestype RJ-45 Trådløse LAN funktioner Wi-Fi-bånd Enkelt band (2,4 GHz) Bedste Wi-Fi standard Wi-Fi 4 (802.11n) WLAN dataoverførselshastighed (maks) 300 Mbit/s Wi-Fi-standarder 802.11b, 802.11g, Wi-Fi 4 (802.11n) Modulation 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM Netværk Ethernet LAN Ja Ethernet LAN-grænsefladetype Hurtigt ethernet Ethernet LAN-datahastigheder 10,100 Mbit/s Netværksstandarder IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3u Auto MDI/MDI-X Ja Modtager, følsomhed 270M: -68dBm@10% PER, 130M: -68dBm@10% PER, 108M: -68dBm@10% PER, 54M: -68dBm@10% PER, 11M: -85dBm@8% PER, 6M: -88dBm@10% PER, 1M: -90dBm@8% PER Porte & Grænseflader Ethernet LAN-porte (RJ-45) 4 USB-port Ja Antal USB 2.0-porte 1 DC-in-stik Ja Administrationsfunktioner Webbaseret administration Ja WPS trykknap Ja Sikkerhed Firewall Ja Firewall sikkerhed NAT, SPI DDoS beskyttelse Ja Filtrering Ja Filtrering af MAC-adresser Ja IP-adresse filtrering Ja URL-filtrering Ja Design Produkttype Bordplade router Produktfarve Sort, Hvid Tænd-/slukkontakt Ja Godkendelser Compliance-certifikater RoHS, Federal Communications Commission (FCC), CE Emballage indhold Kabler inkluderet LAN (RJ-45) AC-adapter inkluderet Ja Antenne inkluderet Ja Hurtig installationsvejledning Ja Antenne Antennedesign Ekstern Antennestik type RP-SMA Niveau for antennestyrke (maks.) 5 dBi Antenner, antal 2 Antenneretningstype Omniretningsbestemt Overfører strøm 20 dBmW Funktioner Firmware kan opgraderes Ja Strømstyring Strømkilde type Vekselstrøm Udgangsspænding 12 V Udgangsstrøm 1 A Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Systemkrav Understøttede Windows-operativsystemer Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 98SE, Windows NT, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 Understøttede Linux-operativsystemer Ja Understøttede Mac-operativsystemer Ja Vægt & størrelser Bredde 204 mm Dybde 138 mm Højde 44 mm Emballeringsdata Pakkebredde 315 mm Pakkedybde 240 mm Pakkehøjde 70 mm Pakkevægt 620 g Logistik data Harmoniseret systemkode (HS) 85176990 Bæredygtighed Overholdelse af bæredygtighed Ja
