Varenummer: TBLT5MM80CM240WRA
Mere information
-
Facilitate ultra high-performance connectivity between Thunderbolt 5-enabled devices
Experience reliable, ultra-high performance between Thunderbolt 5-enabled devices, supporting up to twice the bandwidth of Thunderbolt 4, 8K 60Hz video, and 240W charging over a single connection. This Thunderbolt 5 cable is ideal for high-performance laptops such as 16in MacBook Pro with M4 Pro/Max.
Enhanced Bandwidth with Boost Mode
Transfer high-speed data and drive dual UHD displays with 80 Gbps bidirectional bandwidth. When higher bandwidth is required, Thunderbolt 5 Boost Mode reallocates the data lanes, enabling 120 Gbps (transmit) and 40 Gbps (receive). This asymmetric configuration is ideal for display-intensive tasks, such as driving multiple 8K monitors or handling high-resolution video workflows while still supporting robust data transfer capabilities.
Seamless Compatibility
Connect this Intel Thunderbolt-certified cable for guaranteed Thunderbolt 5 performance and backward compatibility. Certified cables ensure seamless operation across multiple resolutions, refresh rates, and resource-intensive applications.

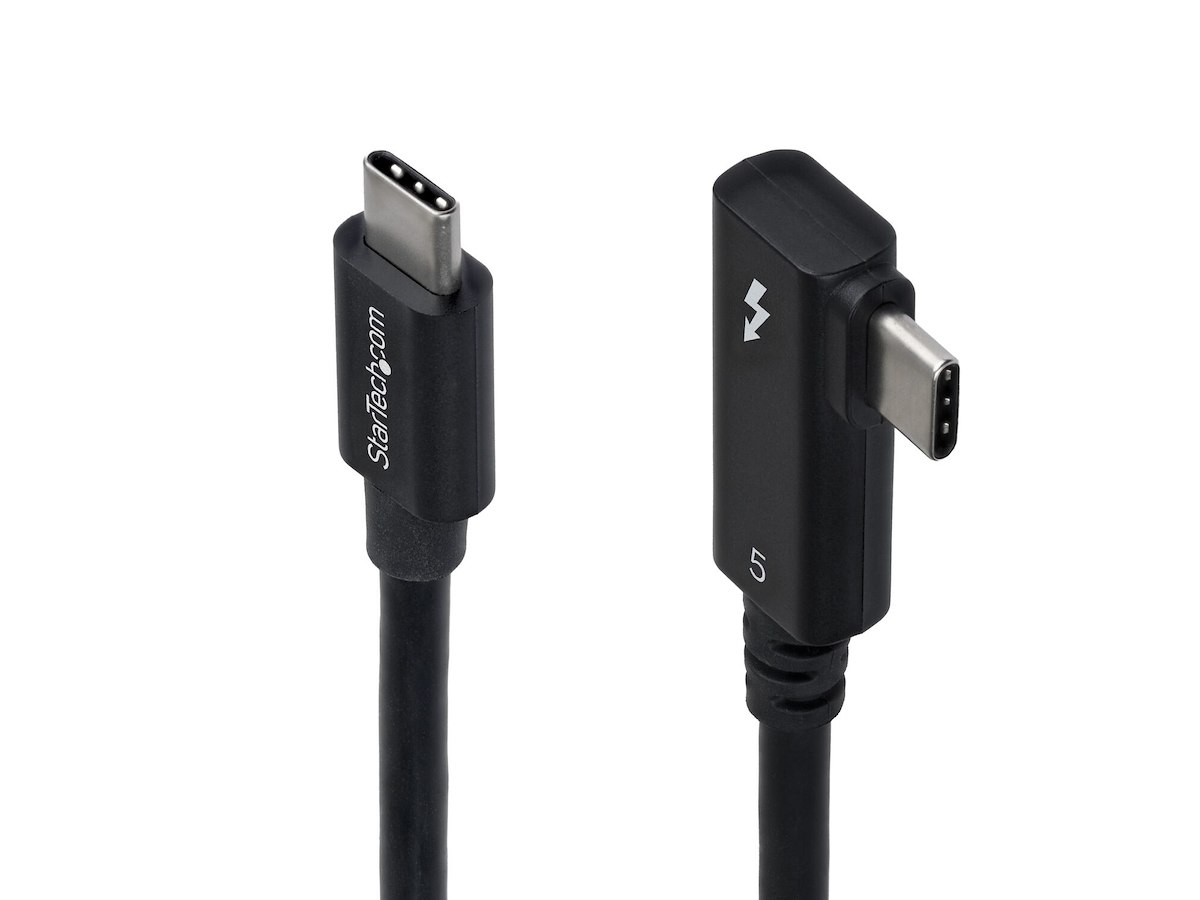

Durable Right-Angle Design
The Right Angle Thunderbolt 5 cable features a flexible TPE outer jacket that is tested to withstand 2,000 bending cycles. Position the right angle connector along the device to reduce cable clutter and avoid prolonged strain from bending. The durable Nickel-plated connectors are rated to operate beyond 10,000 insertions.
Supported Thunderbolt 5 Features
This Certified Thunderbolt 5 Cable supports full Thunderbolt 5 performance:
• 80 Gbps bidirectional bandwidth, doubling the capacity of Thunderbolt 4
• 120 Gbps boost mode for display-intensive applications
• DisplayPort 2.1 Alt Mode: Up to 8K 60Hz/4K 240Hz video with DSC, HDR, and 10-bit color
• PCI Express 4.0 (64 Gbps) support for GPUs, NICs, and storage in PCIe chassis
• 240W Power Delivery EPR for charging for high-performance laptops
• Backward Compatibility with Thunderbolt 4/3, USB4 (40 Gbps), and USB 3.2 (10 Gbps)
This versatile Thunderbolt 5 cord is constructed with braided alloy shielding to minimize EMI for seamless and consistent data/video output and long-term reliable performance. -
Funktioner Stik 1 Hanstik Stik 2 Hanstik Kabellængde 0,8 m Dataoverførselshastighed (maks.) 80 Gbit/sek. Produktfarve Sort Thunderbolt udgave 5 Stikforbindelse kontakter plettering Nikkel Kabelform Rund USB strømforsyning Ja USB strømforsyning op til 240 W AWG-ledningsstørrelse 30/34 USB type-C DisplayPort alternativ tilstand Ja Maksimal opløsning 7680 x 4320 pixel Materiale for kapper Termoplastisk elastomer (TPE) Driftsbetingelser Driftstemperatur (T-T) 10 - 40 °C Opbevaringstemperatur (T-T) -10 - 50 °C Relativ luftfugtighed ved drift (H-H) 0 - 85% Godkendelser Compliance-certifikater RoHS, CE, Federal Communications Commission (FCC) Vægt & størrelser Kabeldiameter 4,7 mm Vægt 36 g Emballeringsdata Antal pr. pakke 1 stk Pakkebredde 125 mm Pakkedybde 110 mm Pakkehøjde 15 mm Pakkevægt 36 g Logistik data Produkter pr. hovedkasse (udvendigt) 120 stk Hovedkassens længde (udvendigt) 300 mm Hovedkassens bredde (udvendigt) 380 mm Hovedkassen højde (udvendigt) 295 mm
