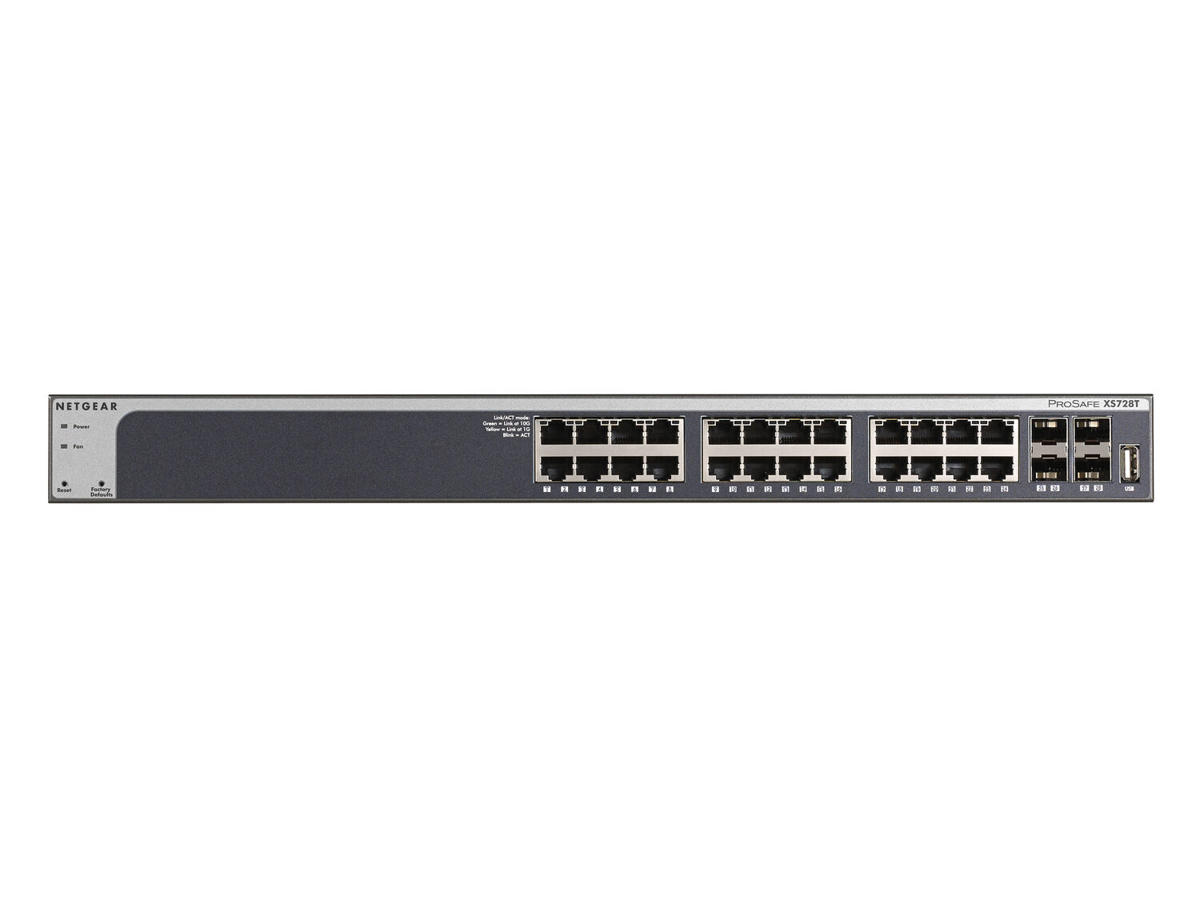

NETGEAR XS728T Administreret L2+/L3 10G Ethernet (100/1000/10000) Sort
Varenummer: XS728T-100NES
.
DKK 31.343,75 / Stk
DKK 25.075,00 ekskl. moms
  •
NETGEAR XS728T. Switch-type: Administreret, Switch lag: L2+/L3. Basis omskiftning RJ-45 Ethernet porttype: 10G Ethernet (100/1000/10000), Basis omskiftning RJ-45 Ethernet porte, antal: 24, Antal installerede SFP+ moduler: 4, Antal USB 2.0-porte: 1. Fuld duplex. MAC adresselabel: 16000 entries, Switch kapacitet: 560 Gbit/sek.. Netværksstandarder: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Stativ-montering


Mere information

  • As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of reliable and high performance networks. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to higher speed and performance. The 10-Gigabit Smart Managed Switch series from NETGEAR presents the right solution for this requirement; delivering unprecedented non-blocking 10-Gigabit bandwidth at an affordable cost. The NETGEAR XS708T, XS716T, XS728T, and XS748T are powerful Smart Managed Switches that come with 8, 16, 24, or 44 10-Gigabit Copper ports and either 2 Shared (Combo) Copper/SFP+ ports (XS708T/XS716T) or 4 additional Dedicated SFP+ ports (XS728T/XS748T) for 10G Fiber links. The NETGEAR 10-Gigabit Smart Managed Switches are purposely designed as a cost-effective way to provide 10G connections to 10G-capable servers and NAS (Network Attached Storage) systems. They can be used at the “center of a small business network” or as an aggregation / access switch in a larger organization including workgroup access, connecting to a 10‑Gigabit NETGEAR Fully Managed Switch on one end and extending the 10G connections to the edge. The XS708T and XS716T are also ideal for smaller workgroups that need high bandwidth for sharing, collaborating, editing, and publishing high-density content like video or animation. Comprehensive L2+/Layer 3 Lite Features - The 10G Smart Managed Switches provide comprehensive L2+/Layer 3 Lite features in order to meet current and future needs on virtualization, converged networking and mobility. Some of the main features include: - Advanced VLAN features such as Protocol-based VLAN, MAC-based (Media Access Control) VLAN and 802.1x Guest VLAN - Advanced QoS (Quality of Service) with L2/ L3/L4 awareness and 8 priority queues - IPv4 and IPv6 static routing - Private VLAN - Dynamic VLAN assignment - IGMP and MLD snooping - Advanced Security - IPv6 for management, QoS and ACL 10-Gigabit Transition with BASE-T - 10GBASE-T, like other BASE-T technologies, uses the standard RJ-45 Ethernet jack - It is backward compatible, auto-negotiating between higher and lower speeds – thereby not forcing an all-at-once network equipment upgrade - Cat 5 / Cat 5e are supported for Gigabit speeds up to 100 meters - Cat 6 twisted pair copper cabling supports 10-Gigabit speeds up to 45 meters - Cat 6a or newer Cat 7 cabling will allow for up to 100 meter 10GBASE-T connections Designed as a Core Switch for SMB Networks - 10G connection to 10G-capable servers and network storage - Powerful L2+/Layer 3 Lite features make them the most cost-effective core switches for SMB and virtualization environment - Future-proof your network with 10G bandwidth, advanced traffic management and comprehensive IPv6 support - Static routing helps to route internal traffic for more efficient use of network resources - IGMP and MLD snooping provide advanced multicast filtering Act as an Aggregation Switch for Medium Sized Networks - 10-Gigabit switches help to resolve the congestion issue between network edge and core, which is caused by the broader adoption of Gigabit-to-the-desktop - 10-Gigabit Ethernet provides greater scalability than multiple Gigabit Ethernet links, resulting in a simplified and highly efficient network infrastructure - Up to eight 10-Gigabit Ethernet links can be aggregated into a virtual 80‑Gbps connection - 10-Gigabit Ethernet reduces cabling complexity and uses existing cabling efficiently Smart IT, not Big IT - Easy-to-use web browser-based management GUI makes setup and management simple - Standards-based technology, ensuring interoperability with any standards-based devices in the existing network - Dual firmware images, improving reliability and uptime to your network - Worry-free with NETGEAR ProSAFE® LIFETIME Hardware Warranty* - Minimal down-time with NETGEAR ProSAFE LIFETIME Next-Business-Day Replacement Warranty - Get deployment assistance with 90-days Free 24x7 Advanced Technical Phone Support** - LIFETIME 24x7 Online Chat Technical Support

  • Administrationsfunktioner
    Switch-type Administreret
    Switch lag L2+/L3
    Servicekvalitet support (QoS) Ja
    Webbaseret administration Ja
    Porte & Grænseflader
    Basis omskiftning RJ-45 Ethernet porte, antal 24
    Basis omskiftning RJ-45 Ethernet porttype 10G Ethernet (100/1000/10000)
    Antal installerede SFP+ moduler 4
    Antal USB 2.0-porte 1
    Netværk
    Netværksstandarder IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G understøttelse Ja
    Kobber ethernet kabelteknologi 10GBASE-T
    Understøttede kabeltyper Cat5e, Cat6, Cat6a, Cat7
    Port-spejlning Ja
    Fuld duplex Ja
    IP-routing Ja
    Flowkontrol support Ja
    Link aggregering Ja
    Begrænsning af hastighed Ja
    VLAN understøttelse Ja
    Vituelle LAN funktioner Private VLAN, Protocol-based VLAN
    Antal VLAN'er 512
    Dataoverførsel
    MAC adresselabel 16000 entries
    Switch kapacitet 560 Gbit/sek.
    Opbevar-og-frem Ja
    Latens (10 Gps) 11,649 µs
    Antal køer 8
    Stastiske routere 128
    Jumbo Frames support Ja
    Jumbo rammer 10000
    Pakke bufferlager 3 MB
    Sikkerhed
    DHCP funktioner DHCP server, DHCP client
    Adgangskontrolliste (ACL) Ja
    Adgangskontrolliste (ACL) regler 164
    IGMP snooping Ja
    Sikkerhedsalgoritmer 802.1x RADIUS
    Filtrering af MAC-adresser Ja
    Multicast funktioner
    Multicast-understøttelse Ja
    Protokoller
    Administrationsprotokoller SNMP v1, v2c, v3
    Design
    Stativ-montering Ja
    Produktfarve Sort
    LED-indikatorer Aktivitet, Link, Strøm
    Antal blæsere 4 blæser(e)
    Certificering CE, FCC Cl. A, VCCI Cl. A, Cl. A EN 55022 (CISPR 22), Cl. A C-Tick, EN 55024, CCC
    Præstation
    Indbygget processer Ja
    Processorfrekvens 800 Mhz
    Intern hukommelse 512 MB
    Flashhukommelse 256 MB
    Støjniveau 41,6 dB
    Gennemsnitstid mellem fejl (MTBF) 514977 t
    Strømstyring
    Vekselstrømsindgangsspænding 100 - 240 V
    Vekselstrømsindgangsfrekvens 50 - 60 Hz
    Strømforbrug (maks.) 173,3 W
    Power over Ethernet (PoE)
    Strøm over Ethernet (PoE) Ingen
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 50 °C
    Relativ luftfugtighed ved drift (H-H) 0 - 90%
    Driftshøjde 0 - 3000 m
    Vægt & størrelser
    Bredde 440 mm
    Dybde 310 mm
    Højde 43 mm
    Vægt 5,04 kg
    Emballeringsdata
    Kabler inkluderet Vekselstrøm
    Hurtig start guide Ja
    Rack monteringskit Ja
    Logistik data
    Harmoniseret systemkode (HS) 85176990
