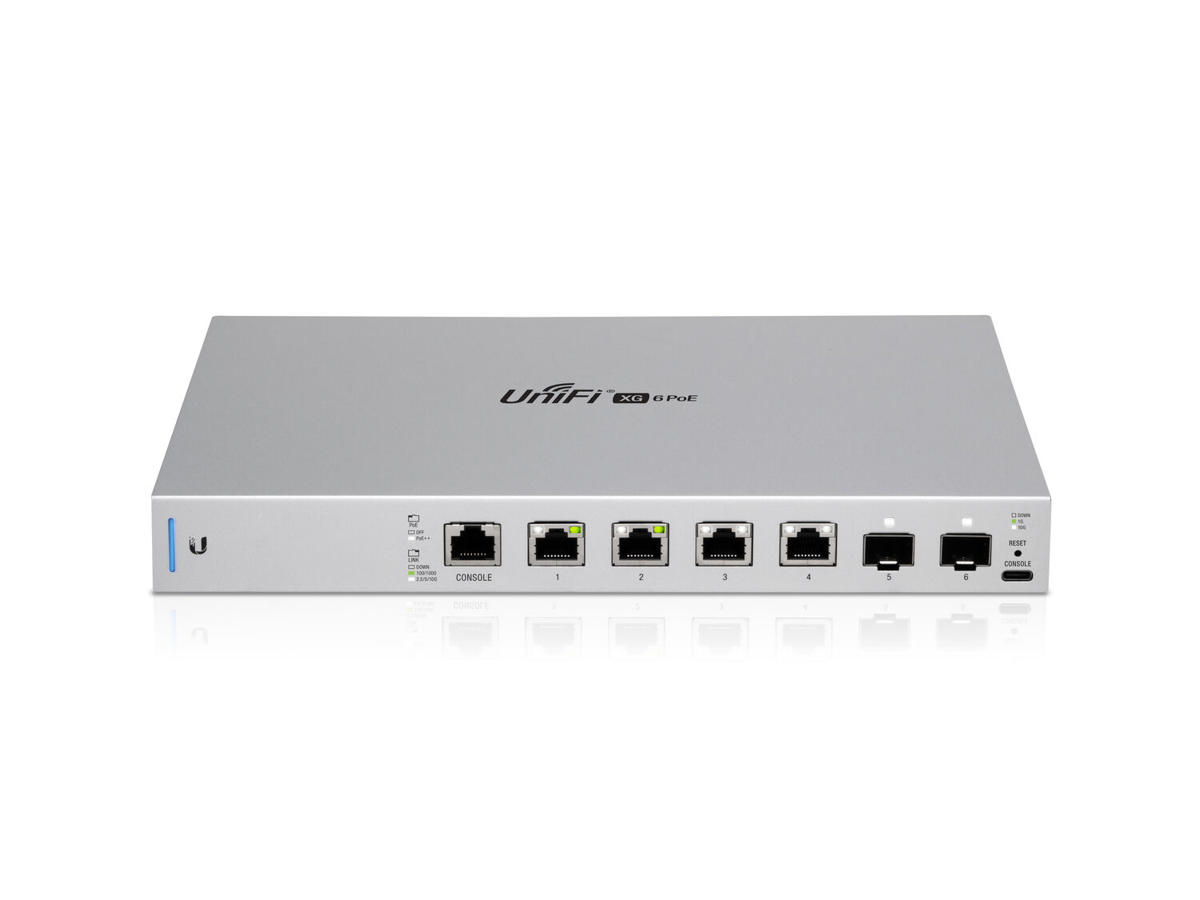

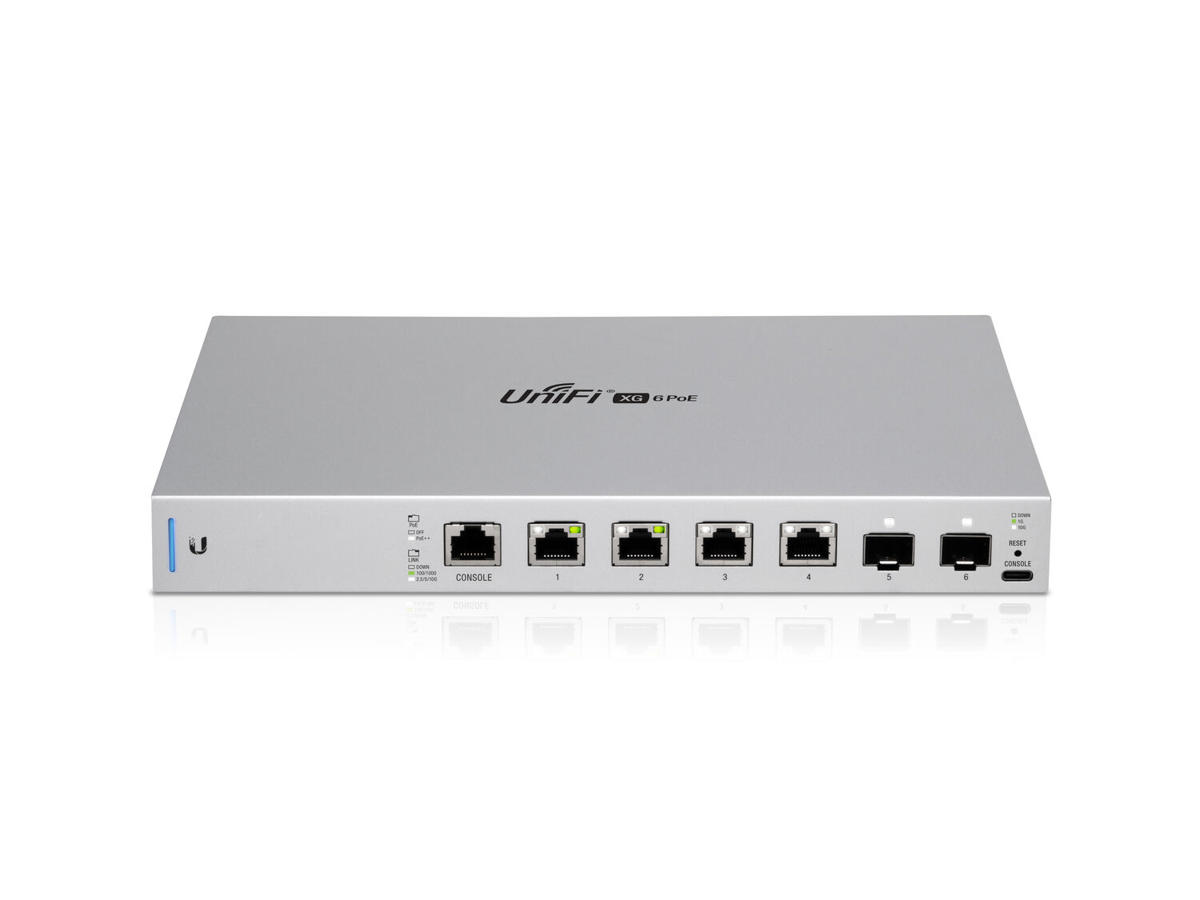

Varenummer: US-XG-6POE
Mere information
-
Powerful Enterprise Switch Models
The UniFi Switch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Its auto-sensing PoE ports deliver up to 60W of power per port.
10 Gbps Deployment Example
Multiple switches connect via SFP+ to the UniFi Switch 16 XG. One UniFi Switch XG 6POE delivers data and 802.3bt PoE++ to multiple APs, the UniFi BaseStation XG, model UWB-XG, and the UniFi AP XG, model UAP-XG.
Multiple switches are daisy-chained through their SFP+ interfaces.
Convenient PoE++ Support
The UniFi Switch features auto-sensing IEEE 802.3af/at/bt PoE to power multiple devices on the network.
10G High-Capacity Links
The UniFi Switch offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 2 SFP+ ports. For CAT 6/5e cable connectivity, the US-XG-6-POE offers 4 1/2.5/5/10Gbps RJ45 ports.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts. -
Administrationsfunktioner Switch-type Administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 4 Basis omskiftning RJ-45 Ethernet porttype 10G Ethernet (100/1000/10000) Antal SFP + modulslots 2 Netværk Netværksstandarder IEEE 802.3bt 10G understøttelse Ja Port-spejlning Ja Fuld duplex Ja Link aggregering Ja Dataoverførsel Switch kapacitet 120 Gbit/sek. Jumbo Frames support Ja Sikkerhed Sikkerhedsalgoritmer 802.1x RADIUS Design Stativ-montering Ja Formfaktor 1U Produktfarve Grå LED-indikatorer Ja Strømstyring Strømforsyning inkluderet Ja DC indgangsspænding 44 - 57 V Strømforbrug (maks.) 40 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) effekt pr. port 60 W Driftsbetingelser Driftstemperatur (T-T) -5 - 45 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Vægt & størrelser Bredde 268,1 mm Dybde 165 mm Højde 31,8 mm Vægt 1,3 kg Emballage indhold Brugervejledning Ja Godkendelser Certificering CE, FCC, IC Logistik data Harmoniseret systemkode (HS) 85176990
