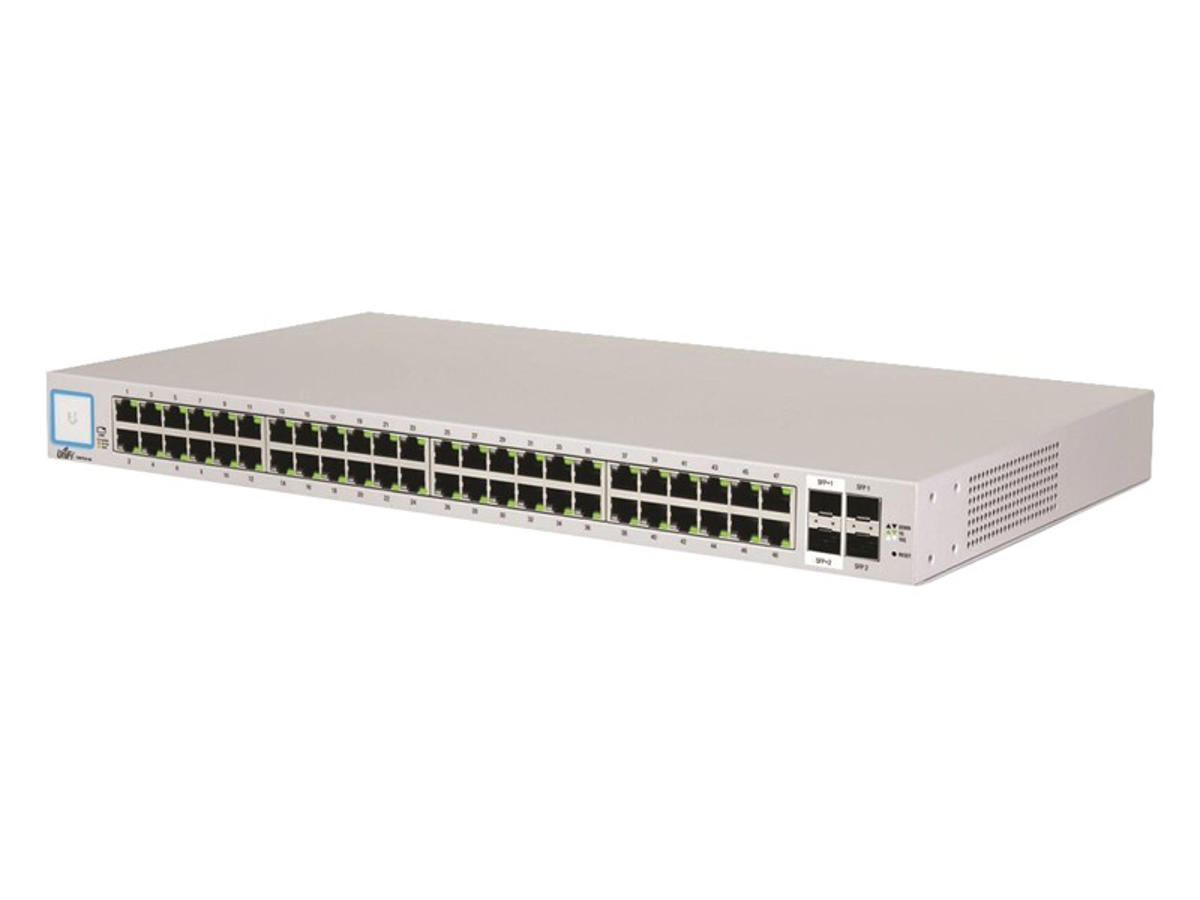

Powerful Enterprise Switch Models
The UniFi® Switch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.
Advanced Port Management
Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate).
Optical Fiber Connectivity
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Convenient PoE+ Support
The UniFi® Switch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
Seamless Integration
The UniFi® Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations — all controlled from a single interface.
| Administrationsfunktioner | |
| Switch-type | Administreret |
| Porte & Grænseflader | |
| Basis omskiftning RJ-45 Ethernet porte, antal | 48 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (kobber) porte, antal | 48 |
| Antal SFP modulslots | 2 |
| Antal SFP + modulslots | 2 |
| Port til konsol | RJ-45 |
| Netværk | |
| Netværksstandarder | IEEE 802.3af, IEEE 802.3at |
| 10G understøttelse | Ja |
| Flowkontrol support | Ja |
| Dataoverførsel | |
| Switch kapacitet | 140 Gbit/sek. |
| Gennnemløb | 104,16 Mpps |
| Design | |
| Stativ-montering | Ja |
| Formfaktor | 1U |
| Produktfarve | Sølv |
| Knap til nulstilling | Ja |
| LED-indikatorer | Ja |
| Præstation | |
| Støjniveau | 48 dB |
| Strømstyring | |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
| Strømforbrug (maks.) | 500 W |
| Power over Ethernet (PoE) | |
| Strøm over Ethernet (PoE) | Ja |
| Total Power over Ethernet (PoE) | 34,2 W |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | -5 - 40 °C |
| Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
| Vægt & størrelser | |
| Bredde | 485 mm |
| Dybde | 374,6 mm |
| Højde | 44,5 mm |
| Vægt | 5,3 kg |
| Emballage indhold | |
| Kabler inkluderet | Vekselstrøm |
| Godkendelser | |
| Certificering | CE, FCC, IC |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176990 |
