The UniFi Switch 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks.

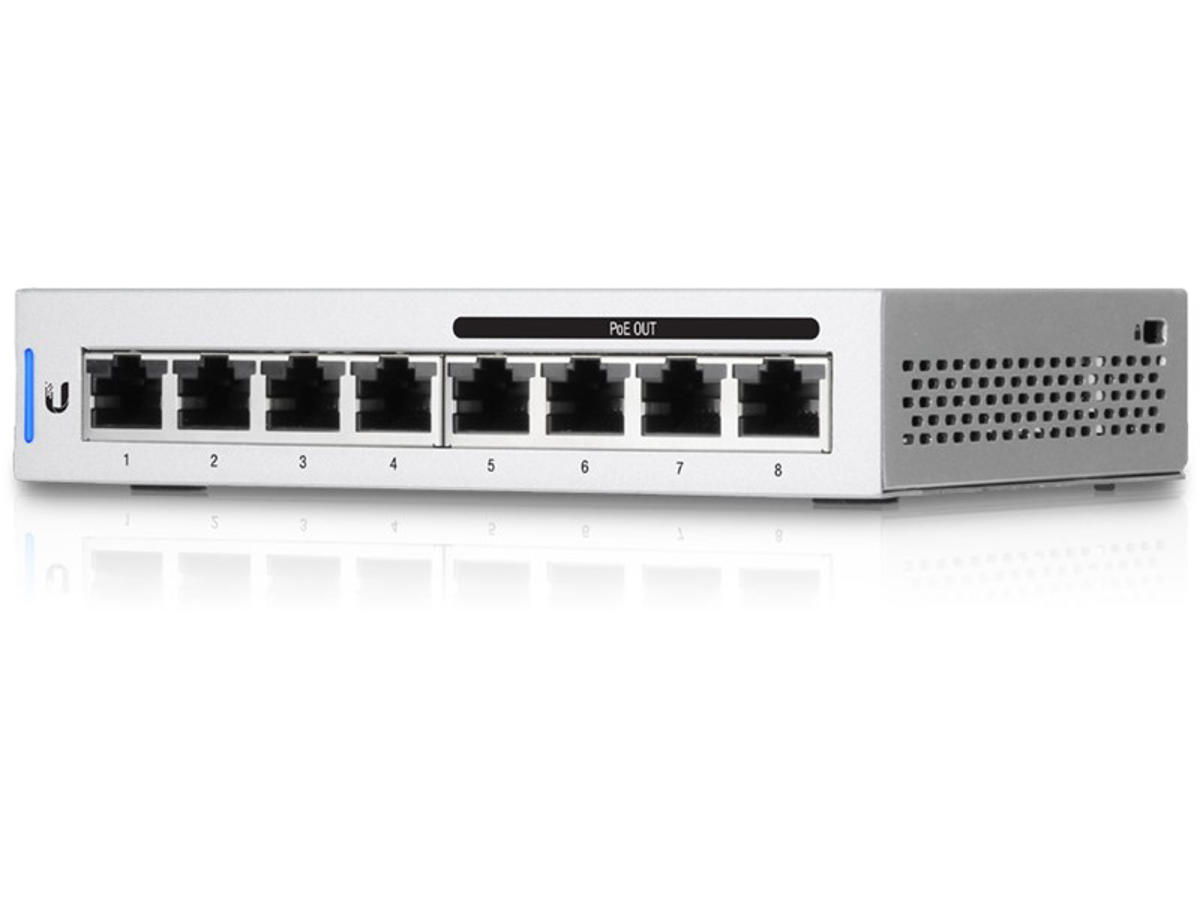

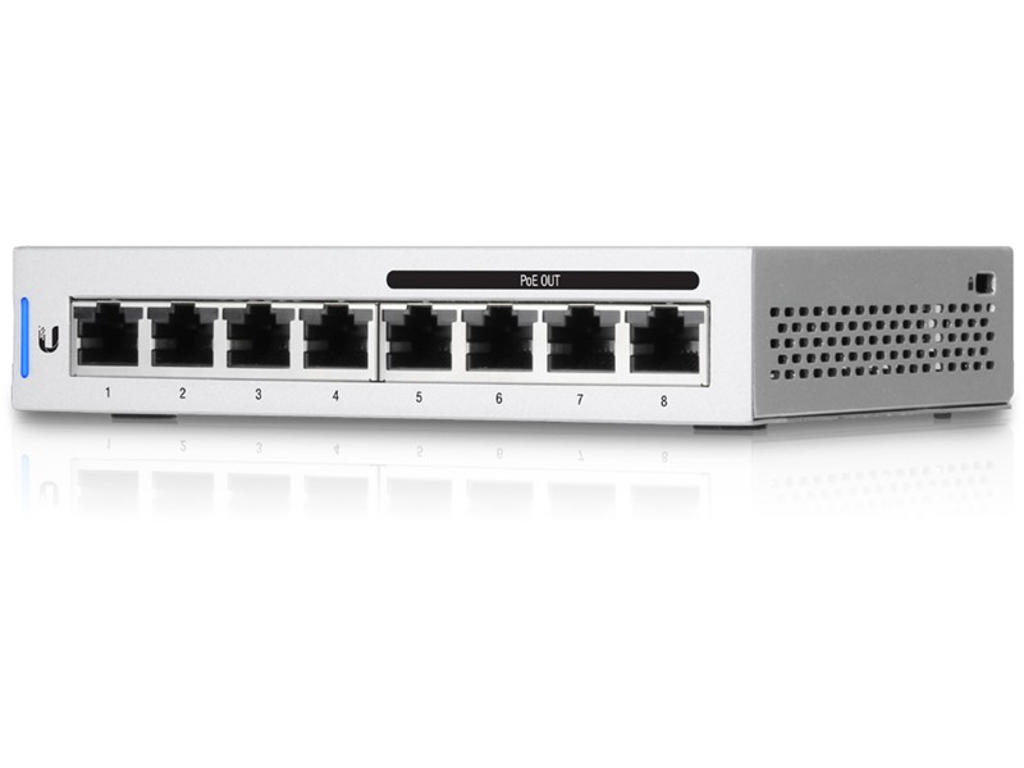

The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.
Non-Blocking Throughput
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.
Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
| Administrationsfunktioner | |
| Switch-type | Administreret |
| Webbaseret administration | Ja |
| Porte & Grænseflader | |
| Basis omskiftning RJ-45 Ethernet porte, antal | 8 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
| Antal installerede SFP moduler | 0 |
| Antal installerede SFP+ moduler | 0 |

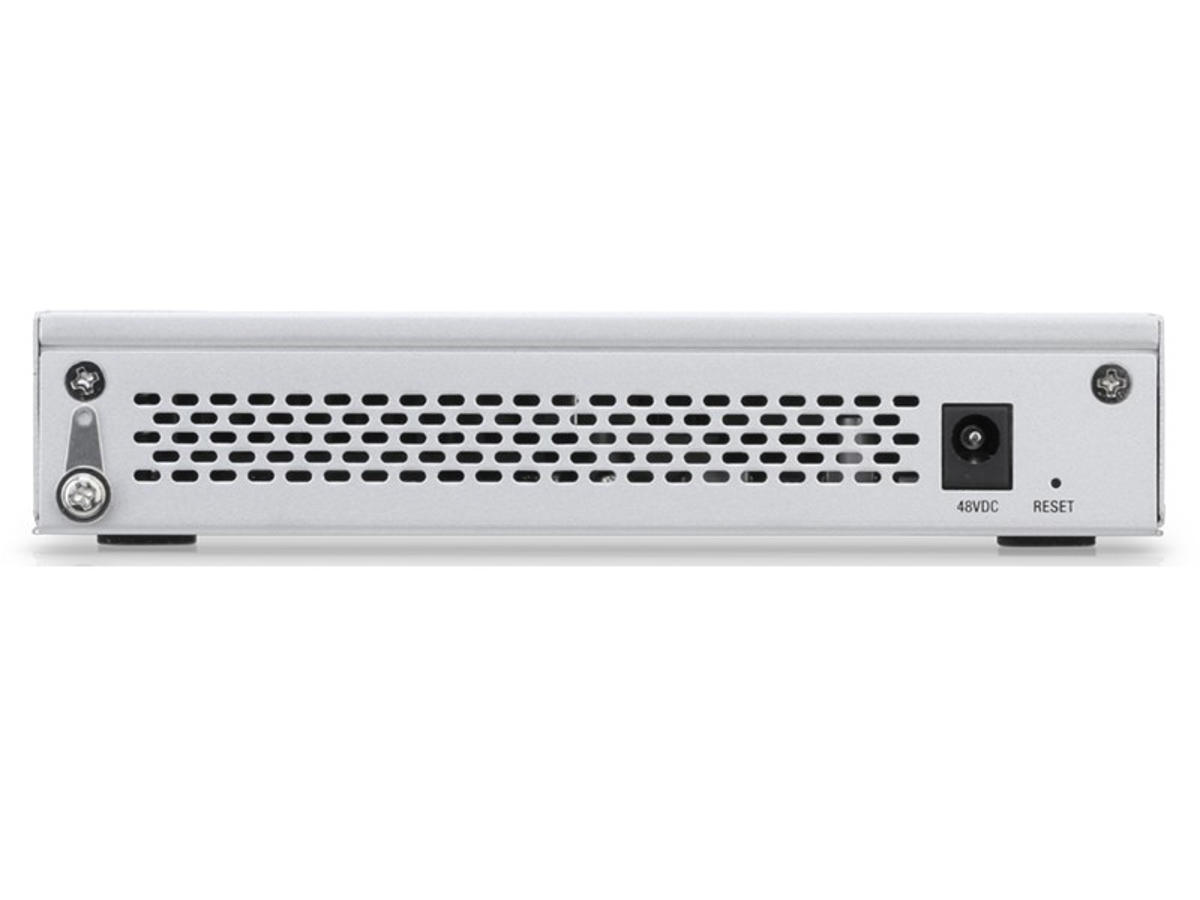

| Strømstik | DC-in-stik |
| Netværk | |
| Netværksstandarder | IEEE 802.1x, IEEE 802.3af |
| 10G understøttelse | Ingen |
| Port-spejlning | Ja |
| Flowkontrol support | Ja |
| Broadcast stormkontrol | Ja |
| Spanning tree protokol | Ja |
| Auto-sensing | Ja |
| VLAN understøttelse | Ja |
| Dataoverførsel | |
| Switch kapacitet | 16 Gbit/sek. |
| Gennnemløb | 8000 Mpps |
| Jumbo Frames support | Ja |
| Design | |
| Produktfarve | Grå |
| Husmateriale | Stål |
| Knap til nulstilling | Ja |
| LED-indikatorer | Aktivitet, Link, PoE, Hastighed |
| Kan monteres på væggen | Ja |
| Strømstyring | |
| Udgangsspænding | 48 V |
| Udgangsstrøm | 1,25 A |
| Strømforbrug (maks.) | 12 W |
| Power over Ethernet (PoE) | |
| Strøm over Ethernet (PoE) | Ja |
| Power over Ethernet (PoE) porte, antal | 4 |
| Power over Ethernet (PoE) spændingsområde | 57 - 44 V |
| Power over Ethernet (PoE) effekt pr. port | 15,4 W |
| Total Power over Ethernet (PoE) | 60 W |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | -5 - 45 °C |
| Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
| Vægt & størrelser | |
| Bredde | 148 mm |
| Dybde | 99,5 mm |
| Højde | 30,7 mm |
| Vægt | 432 g |
| Emballage indhold | |
| Hurtig start guide | Ja |
| Godkendelser | |
| Certificering | ETSI300-019-1.4, CE, FCC, IC |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176990 |
