Centralized Management
Easily configure the OLT and manage multiple sites using the comprehensive UNMS™ (Ubiquiti® Network Management System) software.
Client and Uplink Connectivity
The OLT features eight PON ports to connect up to 1024 Nano G devices, and two SFP+ ports deliver up to 20 Gbps of uplink connectivity.
Power Versatility
Featuring low power consumption, the OLT offers two modular power bays. The first bay includes an AC/DC power module. The second bay can house an optional power module, either an AC/DC backup or a DC/DC power module.

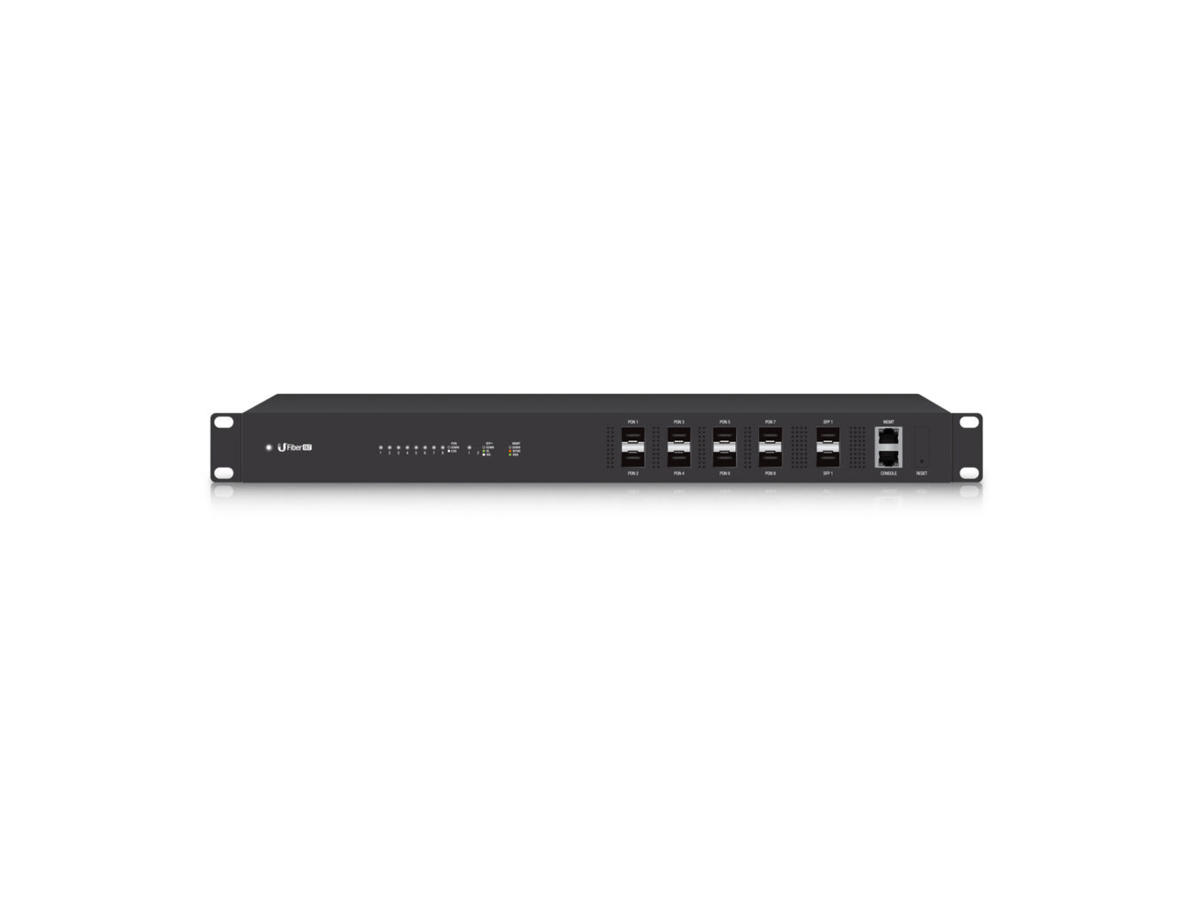

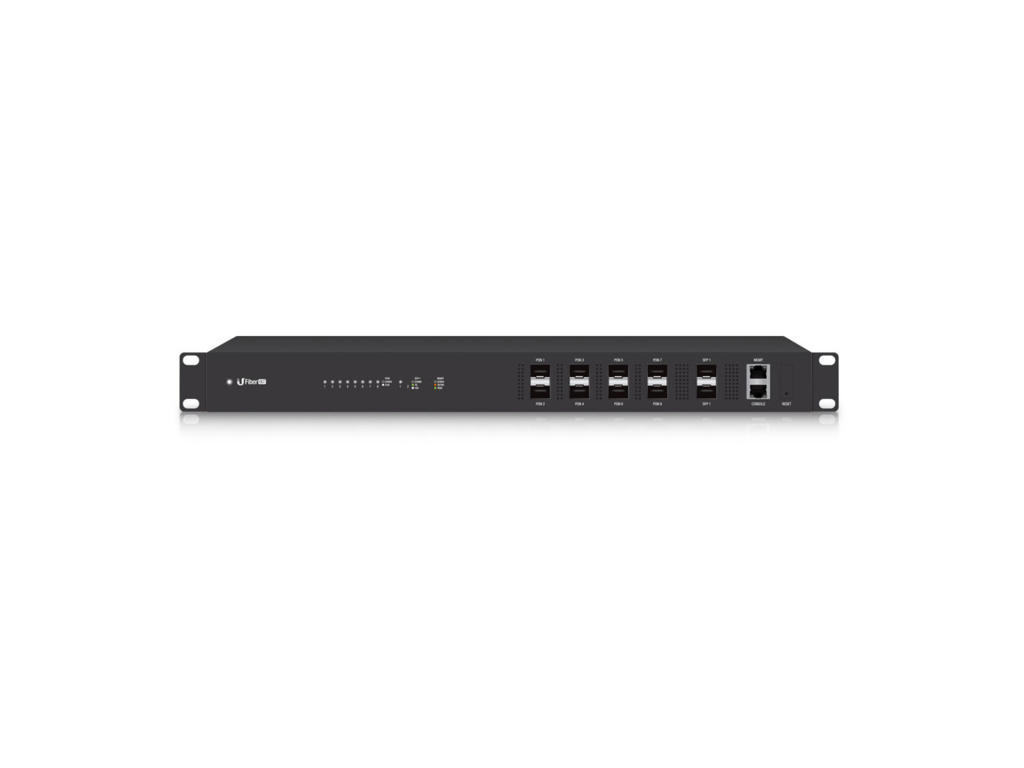

Rackmount Design
The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19"‑wide rack.
Administrationsfunktioner | |
Switch-type | Administreret |
Servicekvalitet support (QoS) | Ja |
Webbaseret administration | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porttype | Ingen |
Antal SFP modulslots | 8 |
Antal SFP + modulslots | 2 |
Port til konsol | RJ-45 |
Netværk | |
10G understøttelse | Ja |
Optisk fiber | |
Bølgelængde | 1490 nm |
Design | |
Stativ-montering | Ja |
Formfaktor | 1U |
Produktfarve | Sort |
Knap til nulstilling | Ja |
Certificering | CE, FCC, IC |
Præstation | |
Indbygget processer | Ja |
Processorfrekvens | 880 MHz |
Hukommelsestype | DDR3-SDRAM |
Intern hukommelse | 512 MB |
Strømstyring | |
Strømforsyning inkluderet | Ja |
Vekselstrømsindgangsspænding | 100 - 240 V |
Indgangsspænding | 25 V |
Strømforbrug (maks.) | 40 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | -10 - 45 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Vægt & størrelser | |
Bredde | 442,4 mm |
Dybde | 285,6 mm |
Højde | 43,7 mm |
Vægt | 4,4 kg |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
