Layer 3, PoE switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.

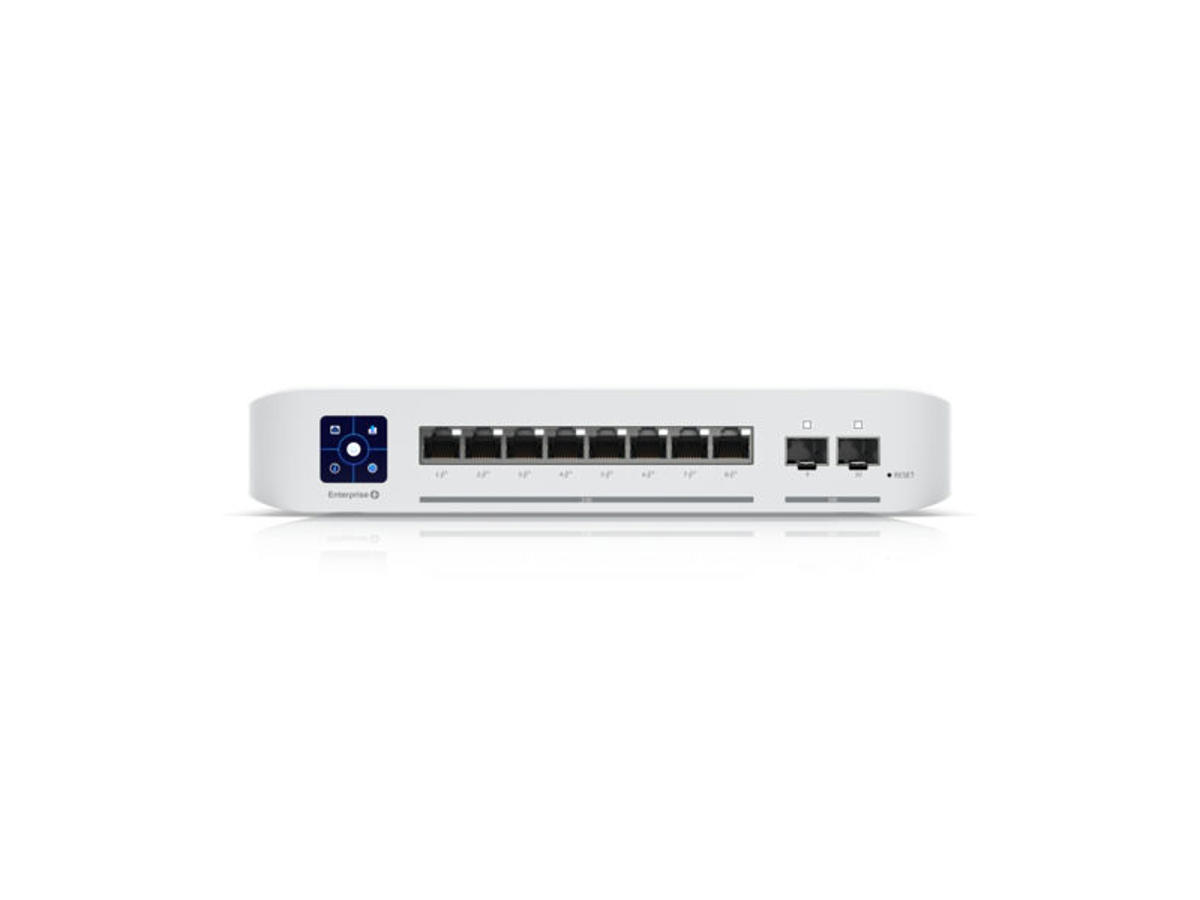

The Switch Enterprise 8 PoE (USW Enterprise 8 PoE) is a fully managed, Layer 3* switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.The USW Enterprise 8 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
| Administrationsfunktioner | |
| Switch-type | Administreret |
| Switch lag | L3 |
| Webbaseret administration | Ja |
| Porte & Grænseflader | |
| Basis omskiftning RJ-45 Ethernet porte, antal | 8 |
| Basis omskiftning RJ-45 Ethernet porttype | 2.5G Ethernet (100/1000/2500) |
| Antal SFP + modulslots | 2 |
| Netværk | |
| Netværksstandarder | IEEE 802.3af, IEEE 802.3at |
| 10G understøttelse | Ingen |
| Dataoverførsel | |
| Switch kapacitet | 80 Gbit/sek. |
| Gennemløb | 40 Gbit/sek. |
| Hastighed for videresendelse | 59,52 Mpps |
| Design | |
| Stativ-montering | Ja |
| Produktfarve | Rustfrit stål |
| Husmateriale | Polykarbonat (PC) |
| LED-indikatorer | Aktivitet, Link |
| Kan monteres på væggen | Ja |
| Strømstyring | |
| Strømforsyning inkluderet | Ja |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
| Indgangsstrøm | 2 A |
| Power over Ethernet (PoE) | |
| Strøm over Ethernet (PoE) | Ja |
| Power over Ethernet plus (PoE+) porte, antal | 8 |
| Power over Ethernet (PoE) effekt pr. port | 32 W |
| Total Power over Ethernet (PoE) | 120 W |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | -5 - 45 °C |
| Relativ luftfugtighed ved drift (H-H) | 10 - 95% |
| Vægt & størrelser | |
| Bredde | 248 mm |
| Dybde | 200 mm |
| Højde | 44 mm |
| Vægt | 2,4 kg |
| Emballage indhold | |
| Brugervejledning | Ja |
| Godkendelser | |
| Compliance-certifikater | CE |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176990 |
