Futuristic Networking with
Lightning-Fast 10G Connections

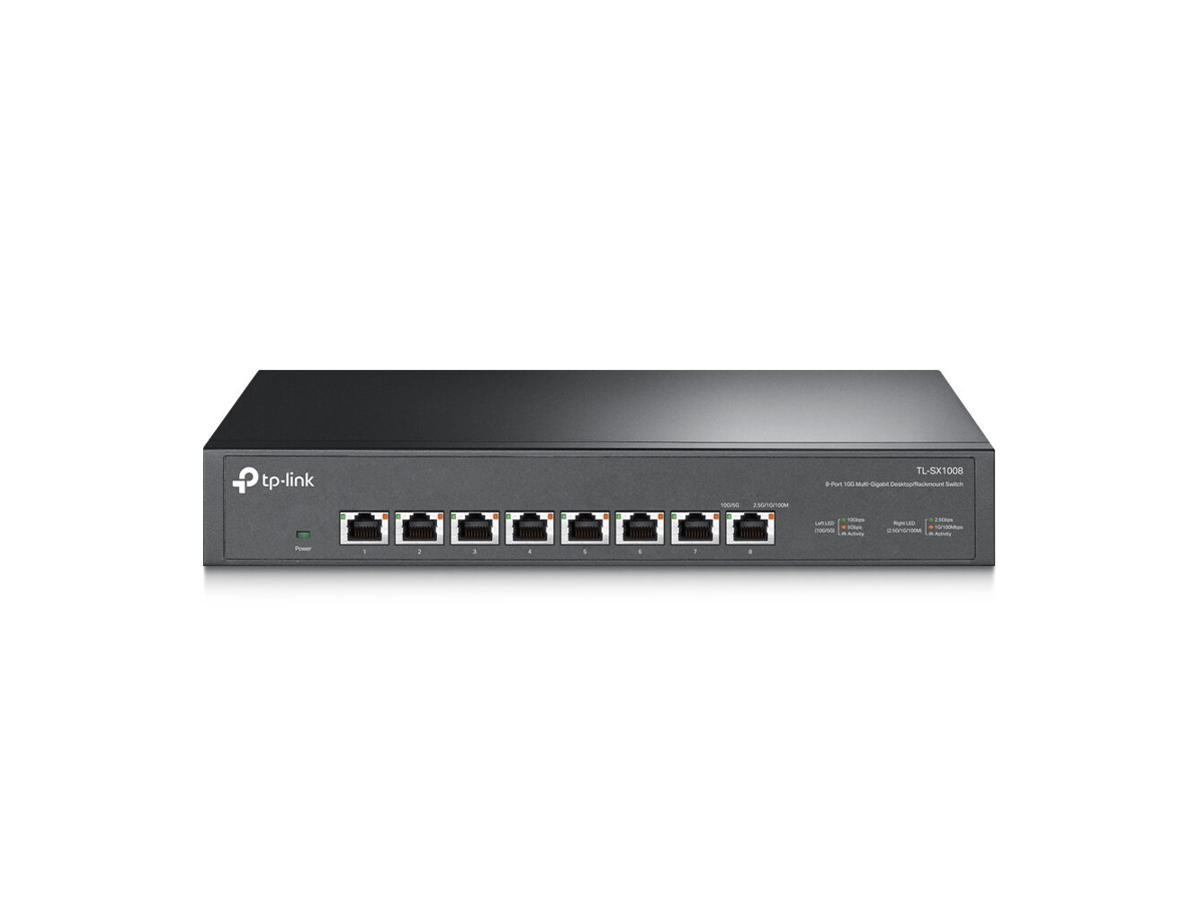

8-Port 10G Desktop/Rackmount Switch
Unlock the Highest Performance of 10G/Multi-Gig Bandwidth
and Devices
As the flagship 10G product, TL-SX1008 is an 8-port 10G desktop/rackmount switch, providing up to 160 Gbps of switching capacity. Auto-negotiation 5-speed (100Mbps/1G/2.5G/5G/10G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 10G NAS, 10G server, workstation, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, desktop, and more.
Ready for Immediate Network Upgrading to 10G?
Reliable, lightning-fast connections and the lowest possible latency make it ideal for gaming and small office and home office use.
Lightning-Fast Connections for Business and Home Office
Work at office or home with lightning-fast connections to workstations, desktop computers, and WiFi 6 access points.
Built for Smooth LAN Parties
Never host a laggy LAN party again. Experience the unparalleled speed and lower latency, and prioritize gaming traffic with QoS. Let’s begin the unprecedented smooth game!
Low-Noise Operation and
Robust Design
Intelligent fan speed adjustment ensures minimal noise to be non-distracting when in use. Durable metal casing and a heat dissipating design guarantee a wide operating temperature (0–50 ℃) that make it ideal for virtually any working environment.
Just Plug and Play for Internet Access
A plug-and-play design allows for easy deployment without the need for a technician. Auto MDI/MDIX eliminates the need for crossover cables.
Flexible Deployment Options
The versatile mounting system gives you the flexibility to place the TL-SX1008 on a desktop or mount it in a rack.
| Administrationsfunktioner | |
| Switch-type | Ikke administreret |
| Porte & Grænseflader | |
| Basis omskiftning RJ-45 Ethernet porte, antal | 8 |
| Basis omskiftning RJ-45 Ethernet porttype | 10G Ethernet (100/1000/10000) |
| Antal installerede SFP moduler | 0 |
| Antal installerede SFP+ moduler | 0 |
| Antal 10G Ethernet-porte (kobber) | 8 |
| Netværk | |
| Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3x |
| 10G understøttelse | Ja |
| Auto MDI/MDI-X | Ja |
| Auto-forhandling | Ja |
| Dataoverførsel | |
| MAC adresselabel | 32000 entries |
| Switch kapacitet | 160 Gbit/sek. |
| Hastighed for videresendelse | 119 Mpps |
| Opbevar-og-frem | Ja |
| Jumbo Frames support | Ja |
| Jumbo rammer | 10000 |
| Pakke bufferlager | 16 MB |
| Design | |
| Stativ-montering | Ja |
| Formfaktor | 1U |
| Produktfarve | Sort |
| LED-indikatorer | Ja |
| Antal blæsere | 1 blæser(e) |
| Strømstyring | |
| Strømkilde | Vekselstrøm |
| Strømforsyning inkluderet | Ja |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
| Indgangsstrøm | 0.8 A |
| Strømforbrug (maks.) | 28,4 W |
| Power over Ethernet (PoE) | |
| Strøm over Ethernet (PoE) | Ingen |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 50 °C |
| Opbevaringstemperatur (T-T) | -40 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
| Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
| Vægt & størrelser | |
| Bredde | 294 mm |
| Dybde | 180 mm |
| Højde | 44 mm |
| Emballage indhold | |
| Kabler inkluderet | Vekselstrøm |
| Hurtig start guide | Ja |
| Rack monteringskit | Ja |
| Emballeringsdata | |
| Pakketype | Kasse |
| Pakkebredde | 250 mm |
| Pakkedybde | 400 mm |
| Pakkehøjde | 80 mm |
| Pakkevægt | 2,07 kg |
| Godkendelser | |
| Certificering | CE, FCC ,RoHS |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176990 |
