Varenummer: TL-SL1226P V1
Mere information
-

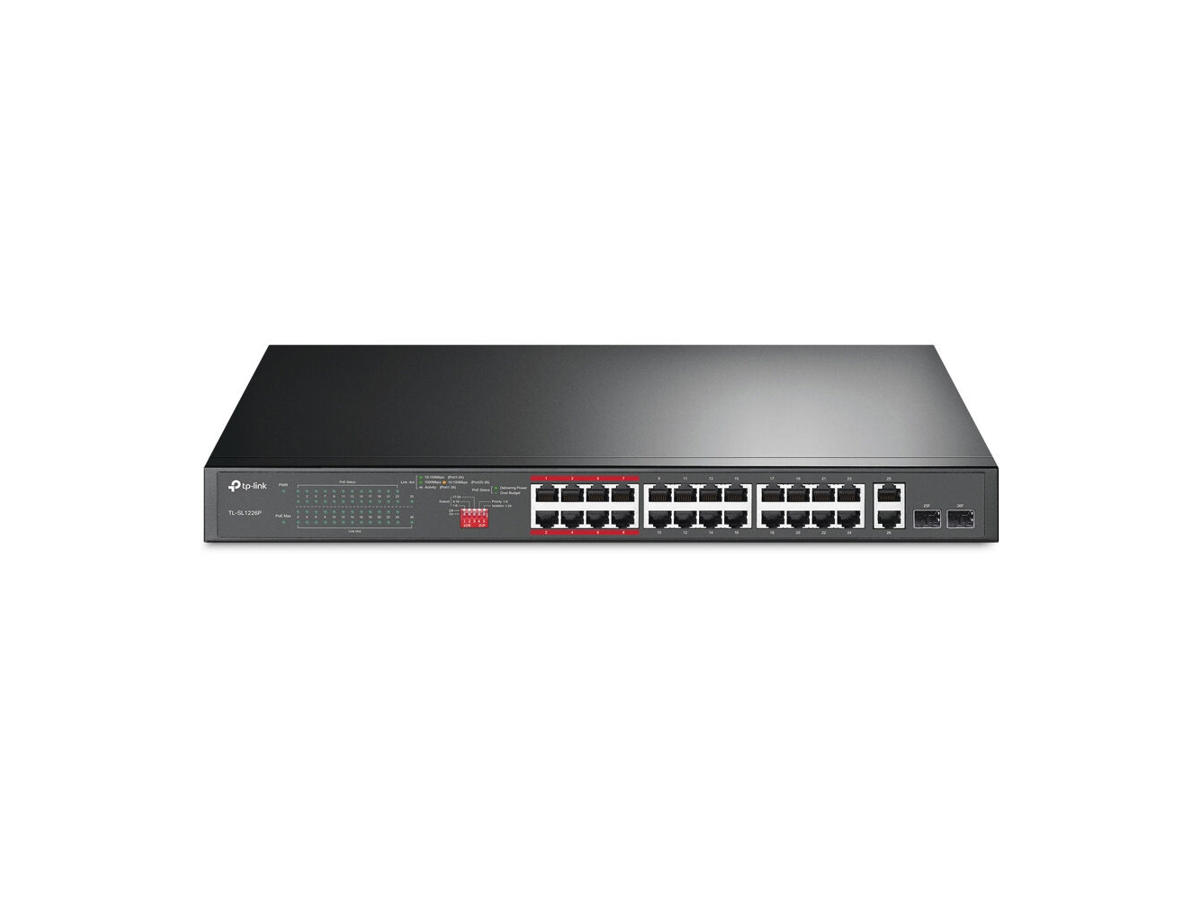

Professional High Power 24-Port PoE+ Switch
Plug and Play, with PoE Transmission for Surveillance up to 250 m
- 250 W PoE Budget
- Transmission Distance up to 250 m
- One-Click Priority Mode
- One-Click Traffic Separation
- Ultra HD Video
- Plug and Play
Dedicated 24-Port PoE+ Switch for Wide Range of Applications with 250 W PoE Budget
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
Dedicated Design for IP Surveillance—Up to 250 m Transmission
With extend mode, the PoE transmission distance reaches up to 250 m — perfect for IP Camera deployment in large areas.
Dedicated Design for IP Surveillance — Higher Performance and Security
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on.
One-Click Traffic Separation for Ports 1-24
With one click, Isolation Mode easily divides traffic for ports 1–24 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.
Smooth HD Video Monitoring
2× gigabit RJ45 ports and 2× combo gigabit SFP ports ensure smooth streaming even when 24× HD IP cameras work simultaneously.
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability. -
Administrationsfunktioner Switch-type Ikke administreret Trafik klassificering Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 26 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Fast Ethernet (kobber) porte, antal 24 Gigabit Ethernet (kobber) porte, antal 2 Kombo SFP porte, antal 2 Netværk Netværksstandarder IEEE 802.3af, IEEE 802.3at, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-T Auto MDI/MDI-X Ja Auto-forhandling Ja Dataoverførsel MAC adresselabel 8000 entries Switch kapacitet 8,8 Gbit/sek. Hastighed for videresendelse 6,54 Mpps Opbevar-og-frem Ja Jumbo Frames support Ja Jumbo rammer 10000 Pakke bufferlager 4,1 MB Design Stativ-montering Ja Formfaktor 1U Produktfarve Grå LED-indikatorer Ja Antal blæsere 2 blæser(e) Strømstyring Strømkilde Vekselstrøm Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Strømforbrug (maks.) 281 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet plus (PoE+) porte, antal 24 Power over Ethernet (PoE) effekt pr. port 30 W Total Power over Ethernet (PoE) 250 W Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Varmeafgivelse 1002,54 BUT/t Vægt & størrelser Bredde 440 mm Dybde 180 mm Højde 44 mm Emballage indhold Hurtig start guide Ja Rack monteringskit Ja Emballeringsdata Pakkebredde 250 mm Pakkedybde 528 mm Pakkehøjde 80 mm Pakkevægt 3,02 kg Godkendelser Certificering CE, FCC, RoHS Logistik data Harmoniseret systemkode (HS) 85176990
