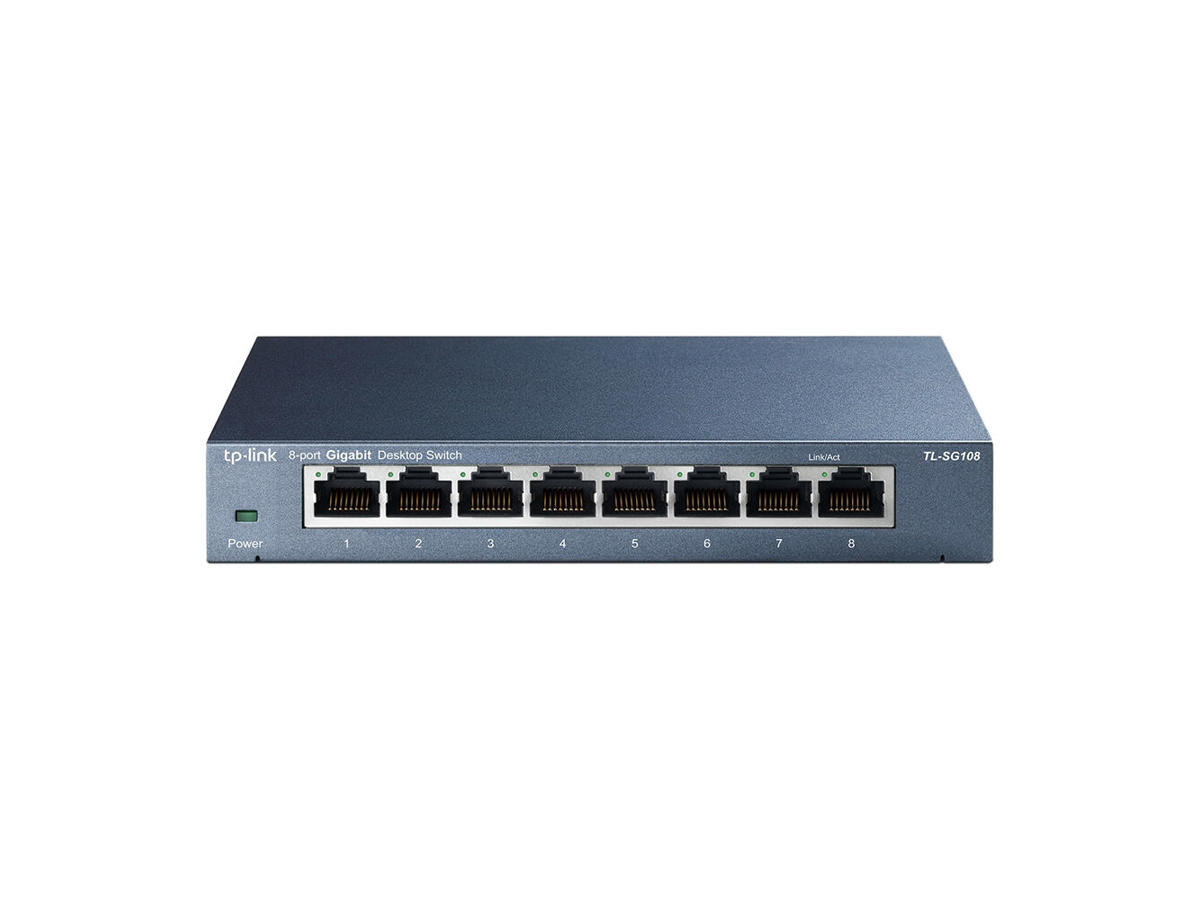

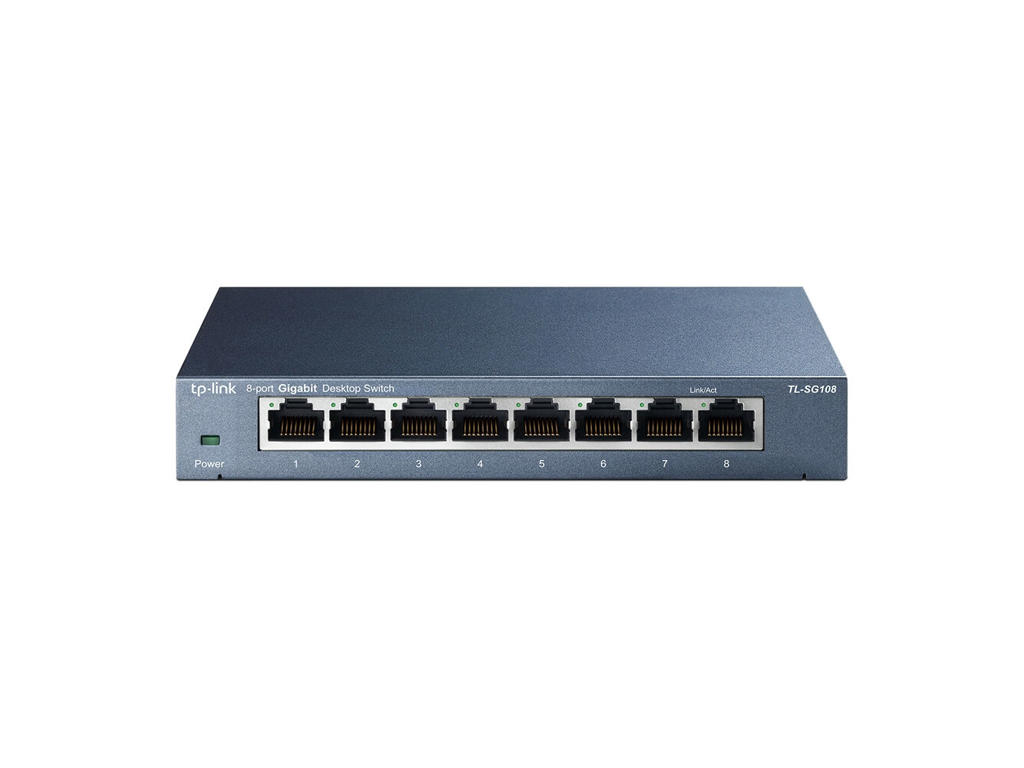

TP-Link TL-SG108 Ikke administreret Gigabit Ethernet (10/100/1000) Sort
Varenummer: TL-SG108 V4
.
DKK 236,25 / Stk
DKK 189,00 ekskl. moms
  •
TP-Link TL-SG108. Switch-type: Ikke administreret. Basis omskiftning RJ-45 Ethernet porttype: Gigabit Ethernet (10/100/1000), Basis omskiftning RJ-45 Ethernet porte, antal: 8. Fuld duplex. MAC adresselabel: 4000 entries, Switch kapacitet: 16 Gbit/sek.. Netværksstandarder: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Strømstik: DC-in-stik


Mere information

Bedst sælgende i Switche
  • What This Product Does
    The TP-LINK 8 10/100/1000Mbps Desktop Switch TL-SG108 provides you an easy way to make the transition to gigabit Ethernet. Increase the speed of your network server and backbone connections, or make gigabit to the desktop a reality. Moreover, TL-SG108 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG108 can save up to 72% of the power consumption, making it an eco-friendly solution for your home or office network.

    Gigabit Switch
    Featured with 8 10/100/1000Mbps ports, TL-SG108 greatly expands your network capacity, enabling instant large files transferring. So,power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

    Go Green With Your Ethernet
    You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG108 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

    - Power down Idle Ports
    When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG108 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 72% reduction in power use.
    - Power Budget According to Cable Length
    Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

    Easy to Use
    The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

  • Administrationsfunktioner
    Switch-type Ikke administreret
    Servicekvalitet support (QoS) Ja
    Porte & Grænseflader
    Basis omskiftning RJ-45 Ethernet porte, antal 8
    Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000)
    Gigabit Ethernet (kobber) porte, antal 8
    Strømstik DC-in-stik
    Netværk
    Netværksstandarder IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
    10G understøttelse Ingen
    Fuld duplex Ja
    Flowkontrol support Ja
    Auto MDI/MDI-X Ja
    Ethernet LAN-datahastigheder 10,100,1000 Mbit/s
    Auto-forhandling Ja
    Dataoverførsel
    MAC adresselabel 4000 entries
    Switch kapacitet 16 Gbit/sek.
    Understøttede dataoverførselshastigheder 10/100/1000Mbps
    Hastighed for videresendelse 11,9 Mpps
    Opbevar-og-frem Ja
    Maksimal dataoverførselshastighed 2 Gbit/sek.
    Jumbo Frames support Ja
    Jumbo rammer 16000
    Pakke bufferlager 1,5 MB
    Sikkerhed
    IGMP snooping Ja
    Protokoller
    Udvekslingsprotokoller CSMA/CD
    Design
    Produktfarve Sort
    LED-indikatorer Ja
    Certificering CE, FCC, RoHS
    Strømstyring
    Strømkilde DC
    Strømforsyning inkluderet Ja
    Indgangsstrøm 0.6 A
    Indgangsspænding 9 V
    Strømforbrug (maks.) 3,31 W
    Power over Ethernet (PoE)
    Strøm over Ethernet (PoE) Ingen
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 40 °C
    Opbevaringstemperatur (T-T) -40 - 70 °C
    Relativ luftfugtighed ved drift (H-H) 10 - 90%
    Relativ luftfugtighed ved opbevaring (H-H) 5 - 90%
    Vægt & størrelser
    Bredde 158 mm
    Dybde 100,7 mm
    Højde 25,4 mm
    Emballeringsdata
    Brugervejledning Ja
    Pakkebredde 191 mm
    Pakkedybde 130 mm
    Pakkehøjde 92 mm
    Logistik data
    Harmoniseret systemkode (HS) 85176990
    Andre funktioner
    Forbindelsesteknologi Ledningsført
    Båndbredde 16 Gbit/sek.
    Hastighed af pakkeoverførsel 14880pps/148800pps/1488000pps
    Wi-Fi Ingen
    Strøm-LED Ja
    Ethernet LAN Ja
    Ethernet-grænsefladetype Gigabit Ethernet
