Overview

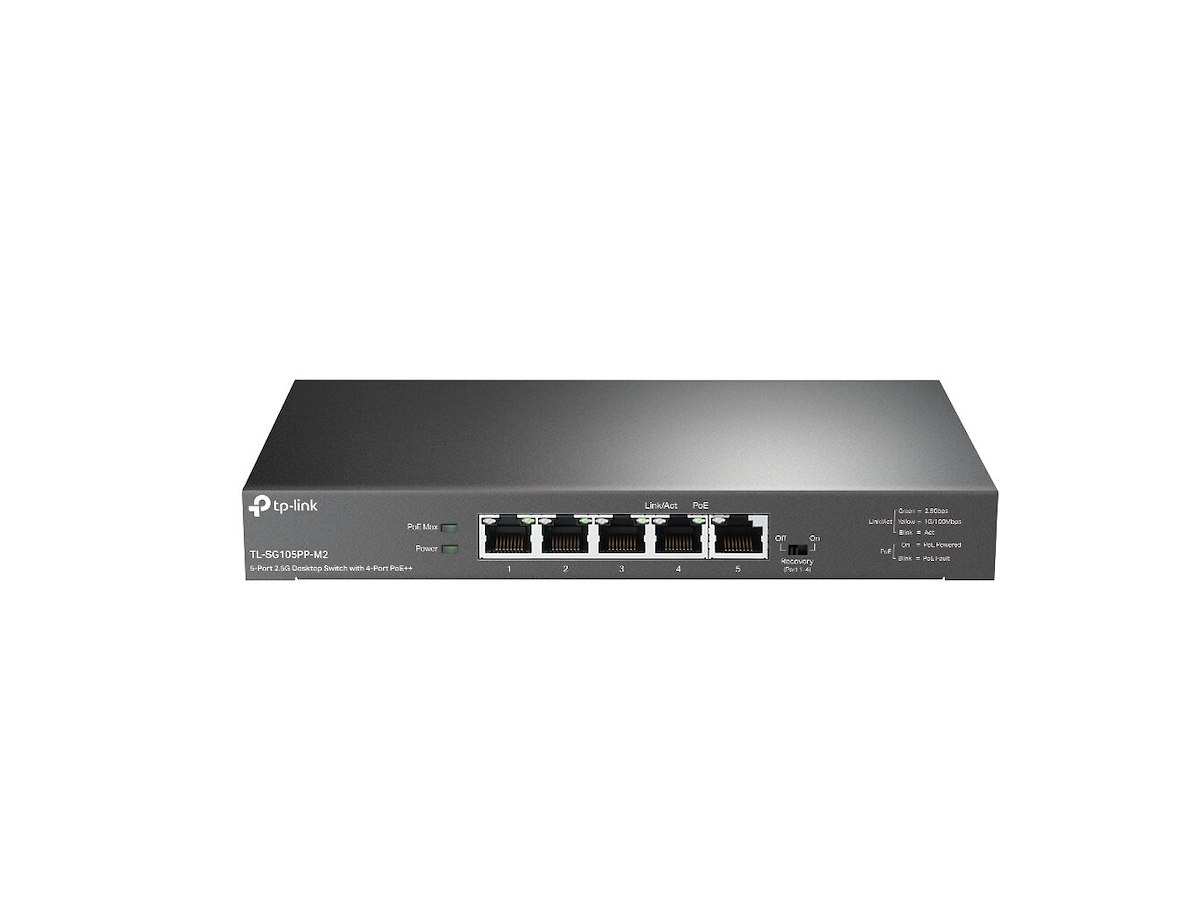

TL-SG105PP-M2 is an unmanaged switch with 5 Gigabit ports that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-4. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
The 2.5G ports support automatic negotiation to 10Mbps/100Mbps/1Gbps/2.5Gbps according to the type of connected device and provide sufficient bandwidth to unlock the highest performance of 2.5G/Multi-Gigabit devices, including NAS, a personal workstation, 8K video stream, and 2.5G Wi-Fi 6 AP.
Power Over Ethernet
4 RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. They can automatically detect and supply power with those connected IEEE 802.3af/at/bt compliant Powered Devices (PDs).
Overload Arrangement
TL-SG105PP-M2 has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is ≥ 123 W*, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Intelligent Power Management
Priority (port 1 > port 2 > port 3 > port 4): This function will help protect the system when the system power is overloaded. For example, port 2, 3, and 4 is using 35 W respectively (maximum power per port is 60 W); the system power is 105W in total. If there is an additional PD inserted to port 1 with 23 W, and then the system will cut off the power of port 4 because of the overloaded power, this means port 1 will use 23 W respectively and port 2&3 will use 35 W, no power will be supplied to port 4.
Highlight Performance
- With PoE Auto Recovery, the switch will constantly detect the data transmission with PoE-powered devices (PD) for port 1-4. When the switch finds that a PD stops sending data packets to the switch for a long period, the switch will reboot it automatically.
- Provides super-fast connections to 2.5G NAS, Server, 2.5G PCIe Adapter/ NIC, gaming computer, 2.5G WiFi 6 AP, 8K video, and more.
- Auto-negotiation for 10Mbps/100Mbps/1Gbps/2.5Gbps connections provide optimal performance.
TL-SG105PP-M2 is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++ TL-SG105PP-M2 is a great selection for expanding your network. -
Administrationsfunktioner Switch-type Ikke administreret Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 5 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Antal 2,5G Ethernet-porte (kobber) 5 Netværk Netværksstandarder IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-T Understøttede kabeltyper Cat3, Cat4, Cat5, Cat5e Flowkontrol support Ja Auto MDI/MDI-X Ja Auto-forhandling Ja MAC-adresse auto-indlæring understøttet Ja MAC-adresse auto-forældelse understøttet Ja Dataoverførsel MAC adresselabel 4000 entries Switch kapacitet 25 Gbit/sek. Hastighed for videresendelse 18,6 Mpps Opbevar-og-frem Ja Sikkerhed IGMP snooping Ja Design Stativ-montering Ingen Produktfarve Sort Husmateriale Stål LED-indikatorer Ja Præstation Ventilatorfri Ja Strømstyring Strømkilde DC/PoE Strømforsyning inkluderet Ja Antal strømforsyninger 1 Vekselstrømsindgangsspænding 220 V Vekselstrømsindgangsfrekvens 50 Hz Indgangsstrøm 2.43 A Indgangsspænding 53.5 V Strømforbrug (maks.) 143,37 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Antal Power over Ethernet 4PPoE-porte (PoE++) 4 Power over Ethernet (PoE) effekt pr. port 60 W Total Power over Ethernet (PoE) 123 W Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Varmeafgivelse 488,89 BUT/t Vægt & størrelser Bredde 209 mm Dybde 126 mm Højde 26 mm Emballage indhold Kabler inkluderet Vekselstrøm Brugervejledning Ja Emballeringsdata Pakketype Kasse Godkendelser Certificering CE, FCC, RoHS
