Varenummer: TL-SG1048 V6
Mere information
-
What This Product Does

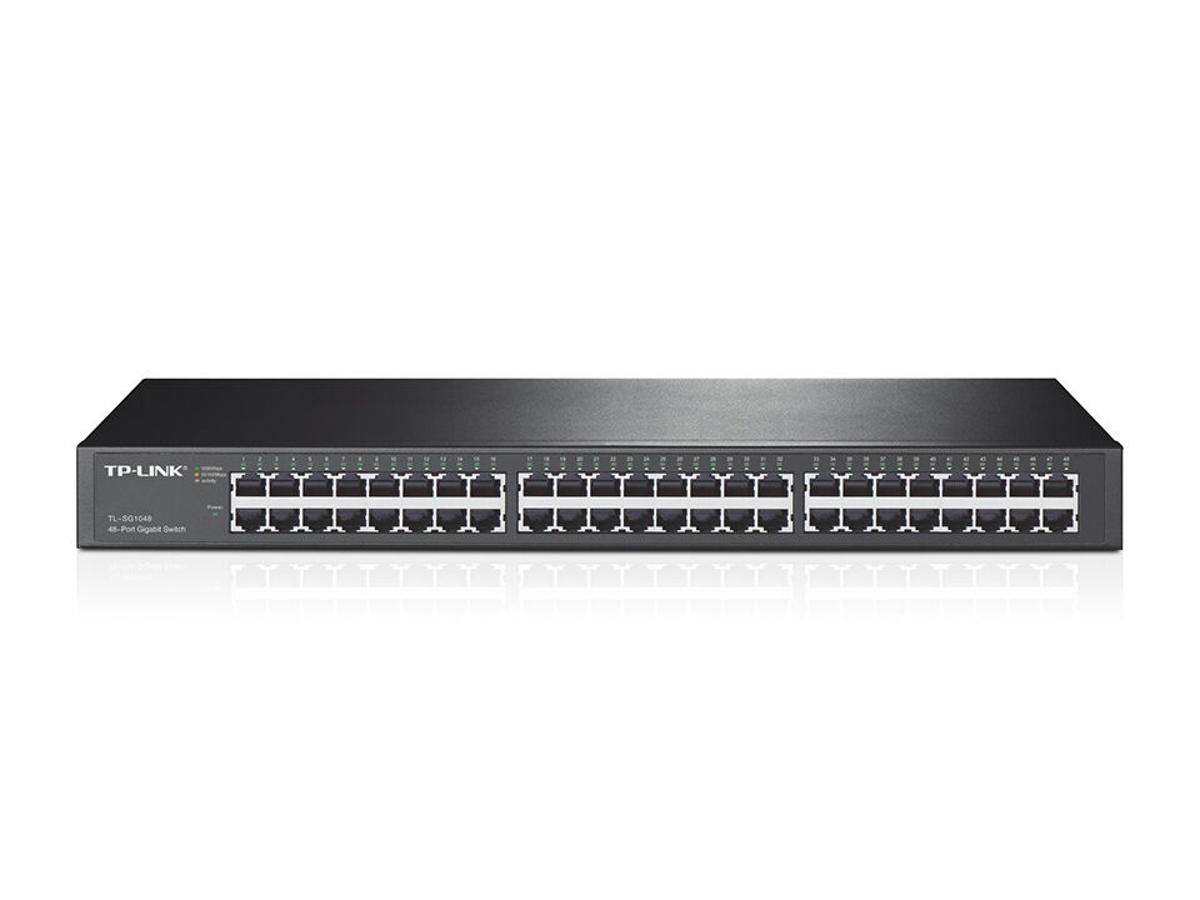

The 48-Port Gigabit Switch TL-SG1048 is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable, easy-to-use switch without the complexity of management, the TL-SG1048 provides 48 10/100/1000Mbps ports. The TL-SG1048 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.
TP-LINK Green Technology
This new generation The 48-Port Gigabit Rackmount Switch TL-SG1048 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
Ease of Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
High Performance
The TL-SG1048 features non-blocking wire-speed architecture with a 96Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission. -
Administrationsfunktioner Switch-type Ikke administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 48 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Gigabit Ethernet (kobber) porte, antal 48 Netværk Netværksstandarder IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x Kobber ethernet kabelteknologi 1000BASE-T, 100BASE-TX, 10BASE-T Fuld duplex Ja Halv dupleks Ja Auto MDI/MDI-X Ja Auto-forhandling Ja Dataoverførsel MAC adresselabel 16000 entries Switch kapacitet 96 Gbit/sek. Understøttede dataoverførselshastigheder 10/100/1000 Mbps Hastighed for videresendelse 71,4 Mpps Opbevar-og-frem Ja Maksimal dataoverførselshastighed 1 Gbit/sek. Jumbo Frames support Ja Jumbo rammer 12000 Protokoller Understøttede netværksprotokoller CSMA/CD, TCP/IP Design Stativ-montering Ja Formfaktor 1U Produktfarve Sort LED-indikatorer Ja Kompatible produkter FCC, CE Strømstyring Strømkilde Vekselstrøm Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Strømforbrug (maks.) 32,29 W Andre funktioner Dimensioner (BxDxH) 440 x 360 x 44 mm Forbindelsesteknologi Ledningsført Båndbredde 96 Gbit/sek. Forbindelses-LED'er Y Dimensioner (BxDxH) (efter britisk standard) 439,4 x 360,7 x 43,2 mm (17.3 x 14.2 x 1.7") Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C, 32 - 104 °F Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Varmeafgivelse 110,17 BUT/t Vægt & størrelser Bredde 440 mm Dybde 220 mm Højde 44 mm Emballage indhold Kabler inkluderet Vekselstrøm Brugervejledning Ja Rack monteringskit Ja Emballeringsdata Pakketype Kasse Pakkebredde 528 mm Pakkedybde 336 mm Pakkehøjde 100 mm Logistik data Harmoniseret systemkode (HS) 85176990
