Varenummer: TL-SG1024D V6
Mere information
-
What This Product Does

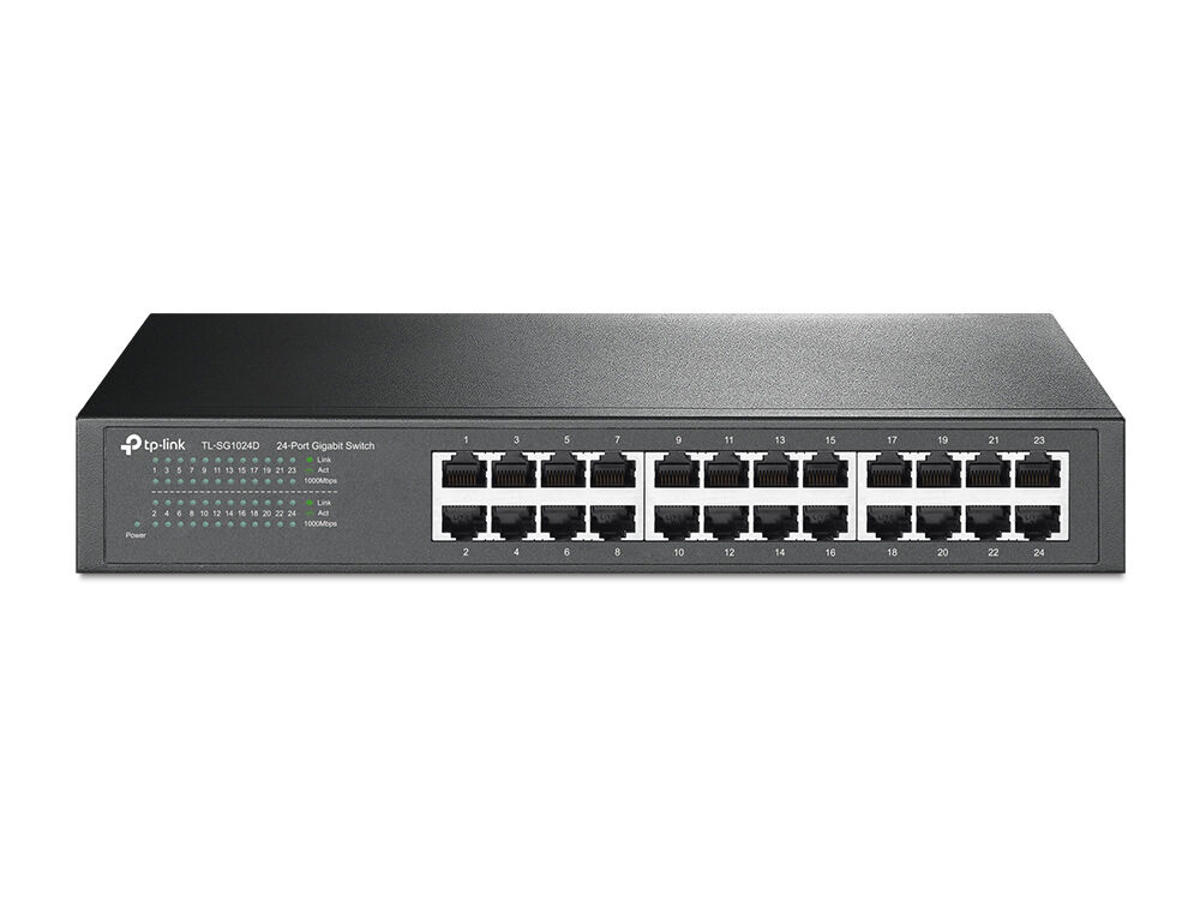

The TL-SG1024D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation TL-SG1024D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1024D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. -
Administrationsfunktioner Switch-type Ikke administreret Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 24 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Gigabit Ethernet (kobber) porte, antal 24 Strømstik DC-in-stik Netværk Netværksstandarder IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Understøttede kabeltyper Cat3, Cat4, Cat5, Cat5e Fuld duplex Ja Flowkontrol support Ja Auto MDI/MDI-X Ja Auto-forhandling Ja Dataoverførsel MAC adresselabel 8000 entries Switch kapacitet 48 Gbit/sek. Understøttede dataoverførselshastigheder 10/100/100 Mbps Hastighed for videresendelse 35,7 Mpps Opbevar-og-frem Ja Maksimal dataoverførselshastighed 1 Gbit/sek. Jumbo Frames support Ja Jumbo rammer 10000 Protokoller Understøttede netværksprotokoller CSMA/CD, TCP/IP Design Stativ-montering Ja Stabelbar Ja Produktfarve Grå LED-indikatorer Ja Strømstyring Strømkilde Vekselstrøm Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Strømforbrug (maks.) 13,62 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Andre funktioner Dimensioner (BxDxH) 294 x 180 x 44 mm Forbindelsesteknologi Ledningsført Båndbredde 48 Gbit/sek. Effektkrav 100 - 240V, 50/60Hz Netværksfunktioner Gigabit Ethernet Forbindelses-LED'er Y Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C, 32 - 104 °F Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Varmeafgivelse 46,44 BUT/t Vægt & størrelser Bredde 294 mm Dybde 180 mm Højde 44 mm Emballage indhold Kabler inkluderet Vekselstrøm Brugervejledning Ja Rack monteringskit Ja Emballeringsdata Pakketype Kasse Pakkebredde 250 mm Pakkedybde 400 mm Pakkehøjde 80 mm Pakkevægt 1,95 kg Godkendelser Certificering FCC, CE, RoHS Logistik data Harmoniseret systemkode (HS) 85176990
