What This Product Does

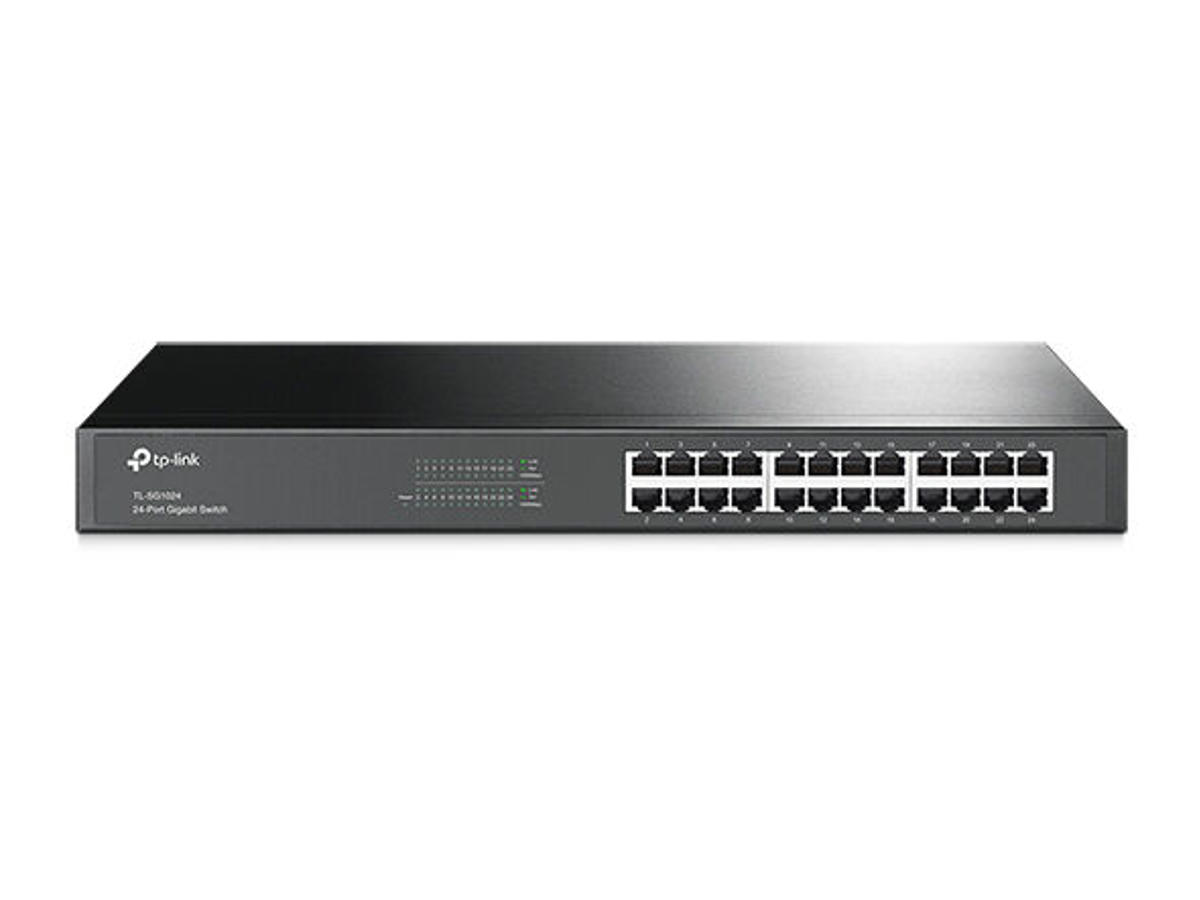

The TL-SG1024 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation TL-SG1024 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1024 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Ease of Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance
| Administrationsfunktioner | |
| Switch-type | Ikke administreret |
| Servicekvalitet support (QoS) | Ja |
| Porte & Grænseflader | |
| Basis omskiftning RJ-45 Ethernet porte, antal | 24 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
| Antal installerede SFP moduler | 0 |
| Antal installerede SFP+ moduler | 0 |
| Gigabit Ethernet (kobber) porte, antal | 24 |
| Netværk | |
| Netværksstandarder | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G understøttelse | Ingen |
| Kobber ethernet kabelteknologi | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Fuld duplex | Ja |
| Halv dupleks | Ja |
| Flowkontrol support | Ja |
| Auto MDI/MDI-X | Ja |
| Auto-forhandling | Ja |
| Dataoverførsel | |
| MAC adresselabel | 8000 entries |
| Switch kapacitet | 48 Gbit/sek. |
| Understøttede dataoverførselshastigheder | 10/100/1000 Mbps |
| Hastighed for videresendelse | 35,7 Mpps |
| Opbevar-og-frem | Ja |
| Maksimal dataoverførselshastighed | 1 Gbit/sek. |
| Jumbo Frames support | Ja |
| Jumbo rammer | 10000 |
| Protokoller | |
| Understøttede netværksprotokoller | CSMA/CD, TCP/IP |
| Design | |
| Stativ-montering | Ja |
| Formfaktor | 1U |
| Produktfarve | Sort |
| LED-indikatorer | Ja |
| Strømstyring | |
| Strømkilde | Vekselstrøm |
| Strømforsyning inkluderet | Ja |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
| Strømforbrug (maks.) | 13,62 W |
| Andre funktioner | |
| Forbindelsesteknologi | Ledningsført |
| Båndbredde | 48 Gbit/sek. |
| Forbindelses-LED'er | Y |
| Dimensioner (BxDxH) (efter britisk standard) | 439,4 x 180,3 x 43,2 mm (17.3 x 7.1 x 1.7") |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C, 32 - 104 °F |
| Opbevaringstemperatur (T-T) | -40 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
| Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
| Varmeafgivelse | 46,44 BUT/t |
| Vægt & størrelser | |
| Bredde | 440 mm |
| Dybde | 180 mm |
| Højde | 44 mm |
| Emballage indhold | |
| Kabler inkluderet | Vekselstrøm |
| Brugervejledning | Ja |
| Rack monteringskit | Ja |
| Emballeringsdata | |
| Pakkebredde | 250 mm |
| Pakkedybde | 528 mm |
| Pakkehøjde | 80 mm |
| Pakkevægt | 2,13 kg |
| Godkendelser | |
| Certificering | FCC, CE, RoHS |
