Varenummer: TL-SG1016 V12
Mere information
-

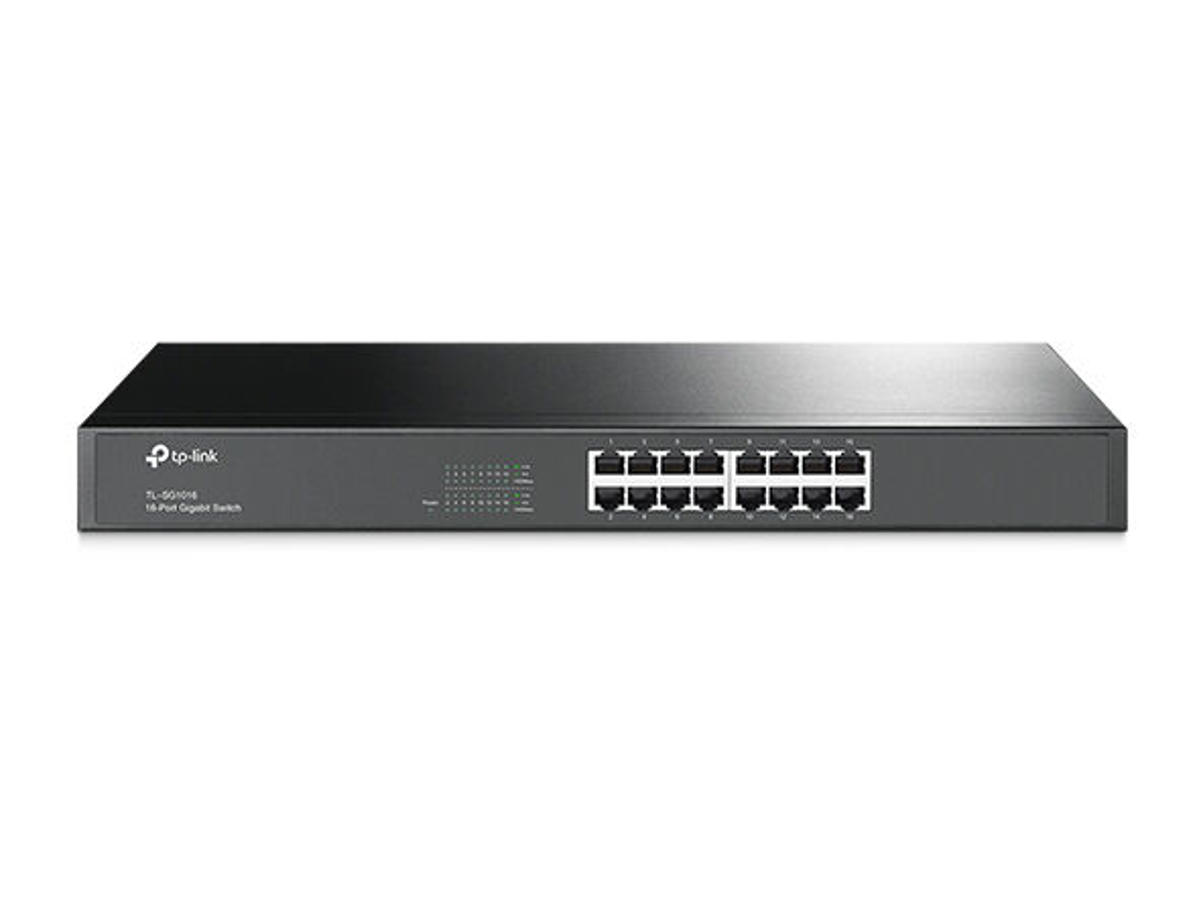

The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-Link Green Technology
This new generation TL-SG1016 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. -
Administrationsfunktioner Switch-type Ikke administreret Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 16 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Gigabit Ethernet (kobber) porte, antal 16 Strømstik AC-in jack Netværk Netværksstandarder IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-T Understøttede kabeltyper Cat3, Cat4, Cat5, Cat5e Fuld duplex Ja Halv dupleks Ja Flowkontrol support Ja Auto MDI/MDI-X Ja Auto-forhandling Ja Dataoverførsel MAC adresselabel 8000 entries Switch kapacitet 32 Gbit/sek. Hastighed for videresendelse 23,8 Mpps Opbevar-og-frem Ja Jumbo Frames support Ja Jumbo rammer 10000 Design Stativ-montering Ja Formfaktor 1U Produktfarve Sort Husmateriale Metal LED-indikatorer Ja Præstation Kompatible operativsystemer Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10 MacOS NetWare UNIX Linux Maksimal kabellængde 100 m Ventilatorfri Ja Strømstyring Strømkilde Vekselstrøm Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50/60 Hz Strømforbrug (maks.) 10,44 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Varmeafgivelse 35,6 BUT/t Vægt & størrelser Bredde 440 mm Dybde 180 mm Højde 44 mm Emballage indhold Kabler inkluderet Vekselstrøm Brugervejledning Ja Rack monteringskit Ja Emballeringsdata Pakketype Kasse Pakkebredde 250 mm Pakkedybde 528 mm Pakkehøjde 80 mm Pakkevægt 2,04 kg Godkendelser Compliance-certifikater CE, Federal Communications Commission (FCC), RoHS Logistik data Harmoniseret systemkode (HS) 85176990 Bæredygtighed Overholdelse af bæredygtighed Ja
